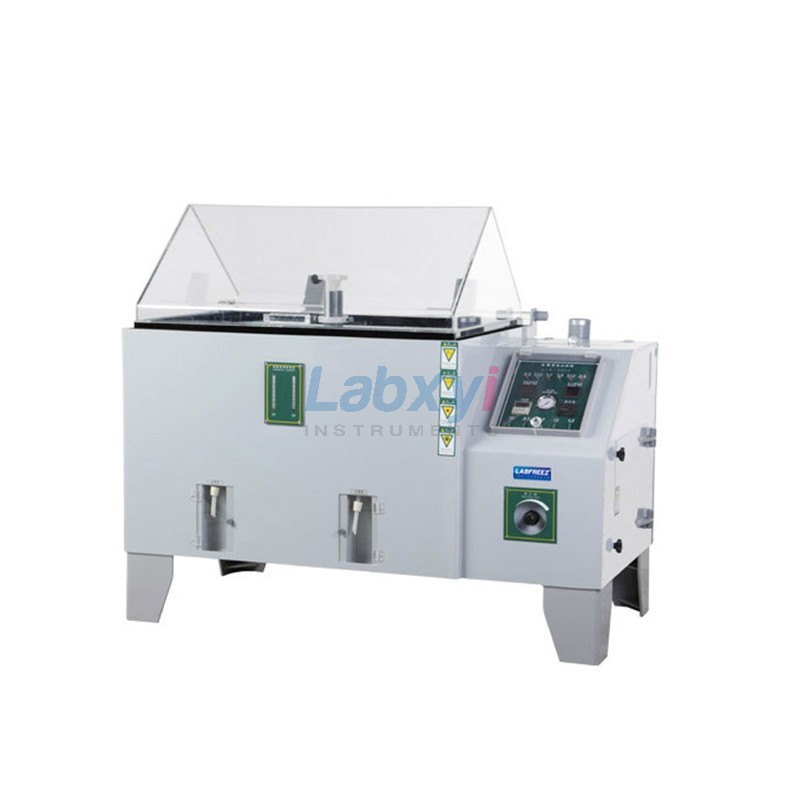

Salt Spray Corrosion Test Chamber

Scope：
LFZ-SSC series salt spray corrosion test chamber is suitable for testing of spare parts, electronic components, protective layer of metallic material and industry products.

Features:

1. Material
2. Test chamber made by PVC board，durable temperature up to 60°C;
3. Closures made by PVC Impact-resistant board;
4. Hidden supplementary reagent bottle with water level display，easy to clean and unbreakable;
5. Saturated air barrel made by SUS#304 material, high pressure-resistant, quality insulation ;
6. Plane indexing rack, angle adjustable.
7. Settable Thermostatic control
8. Salt spray testing：test chamber  35°C±1°C, saturated air barrel 47°C±1°C
9. Corrosion test: test chamber  50°C±1°C, saturated air barrel 63°C±1°C
10. Two-stage adjustment air supply system
11. Rough adjustment: 2-2.5kg/cm² with oil water filtrate function
12. Precision adjustment: 1kg/cm² 1/4PT pressure
13. Spray method
14. Take suck salt then flog，uniform atomization， none blocking crystallization，ensure continuous testing.
15. Adopted special glass nozzle, spray volume & angle can be adjustable
16. Adjustable spray volume: 1 – 2 ml 80cm²/hr(16 hours average amount)
17. Directly heating method，speed temperature rising，OFF/OFF auto switch，titanium heating tube.
18. Control system
19. Test chamber temperature range 0 – 99.9°C, LCD display with P.I.D, control error ± 0.3°C
20. Saturated air barrel temperature range 0 – 99.9°C, LCD display with P.I.D, control error ± 0.3°C
21. Heating tank liquid expansion safety temperature range 0-120°C
22. Saturated air barrel liquid expansion safety temperature control 0-120°C
23. Digital timer from 0.1s-9990hr
24. Push Button Switch can be continuous puss 20,000 times
25. Automatic water add supplementary system, will be adding when in low water level automatically.

Specifications:

1. Temperature range: RT+5°C ~ 55°C
2. Temperature uniformity: 2°C
3. Temperature fluctuation: ±0.5
4. Salt spray sedimentation rate：1~2ml/80cm²•h
