Applicable Standard
SH/T0308
ASTM D3427
Performance Characteristics

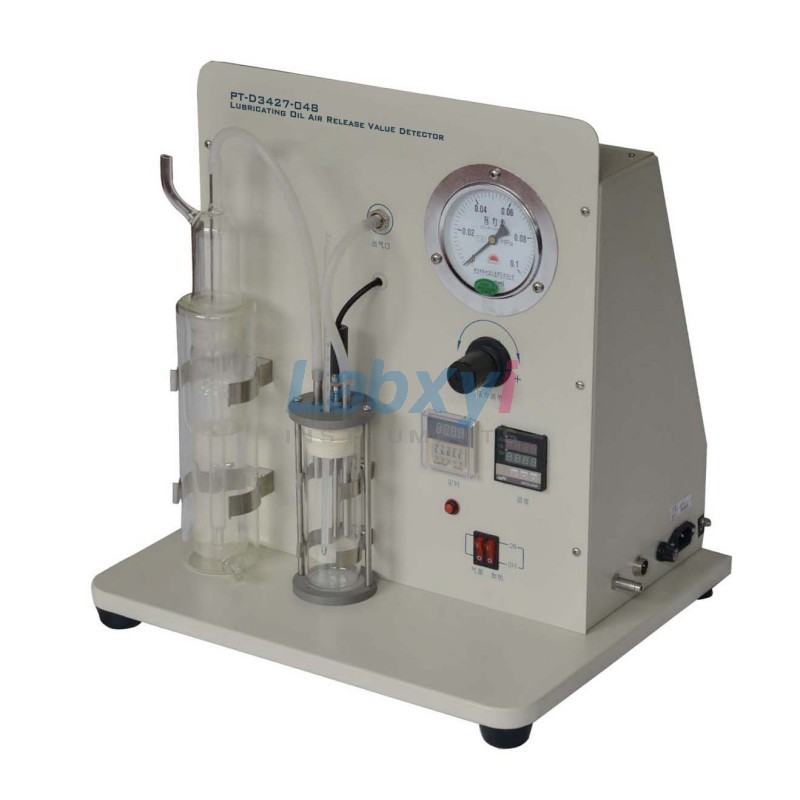

The detector is applied to detecting the time period consumed by foam air volume reduction till reaching 0.2% in the lubricating oil.
The air bath adopts the foreign advanced PID self-tuning temperature regulating system with low deviation as ±2.5℃.
The low temperature deviation of the stainless steel circulation water bath is only ±0.5℃.
The no-oil-feed air compressor, the gas filter, and the small densimeter are equipped.
The inlet pressure is adjustable.
Technical indicators
Working power supply: AC220V±10% 50Hz
Temperature control accuracy: air temperature: ±2.5℃, water temperature: ±0.5℃
Inlet pressure: ≤8.0Mpa
Heating power: 0.6KW/2KW
External dimension: 460*400*500 (mm)
