Features:
- Windows operation interface, figure button, mouse operation
- 96-well plate, multiple tests in the single plate
- Arrangement of Test item in Micro-plate can be store and re-use
- Plate shaking, speed and time adjustable
- Open system, test item and parameters can be added or modified.
- Large storage for 1000 test item and 1,000,000 results
- External large LCD color screen,
- Printing comprehensive report, include hospital and patient information and test results
- External computer, easy to use.
Specifications:
| Model | CLR-202 |
| Microplate types | 96-well plate (UV or plat-bottom) |
| Test mode e | End-point, kinetic, Multi-wave analysis |
| Light source | Tungsten Halogen,12V/20W,>2000 hours |
| Measuring system | 8-channel optical system |
| Wavelength | 405、450、492、630nm, 4 more filters optional. |
| Measurement range | 0-4.00Abs |
| Resolution | 0.001Abs（display），0.0001Abs(Inner counting ) |
| Stability | <±0.005Abs/10min |
| Sensitivity | ≥0.01L /mg |
| Linearity | r > 0.999 |
| Repeatability | < 0.3% |
| Reading speed | 5s single wavelength , 10s double wavelength |
| QC | West guard Multi-rule, automated QC alert. |
| Self-Checking function | Self-checking and calibration function. |
| Printer | External jet printer, multi-form patient report. |
| CPU | High-speed CPU |
| Interface | RS232 interface, USB, PSTN and PC connection. |
| Power supply | 220VAC 15% or 110VAC 15%50-60Hz 100w |
| Work environment | Temp 5°C~40°C; Humi ≤85% |
| Size | 43CM*34CM*16CM |
| Weigh | 7 KG |
Work station configuration

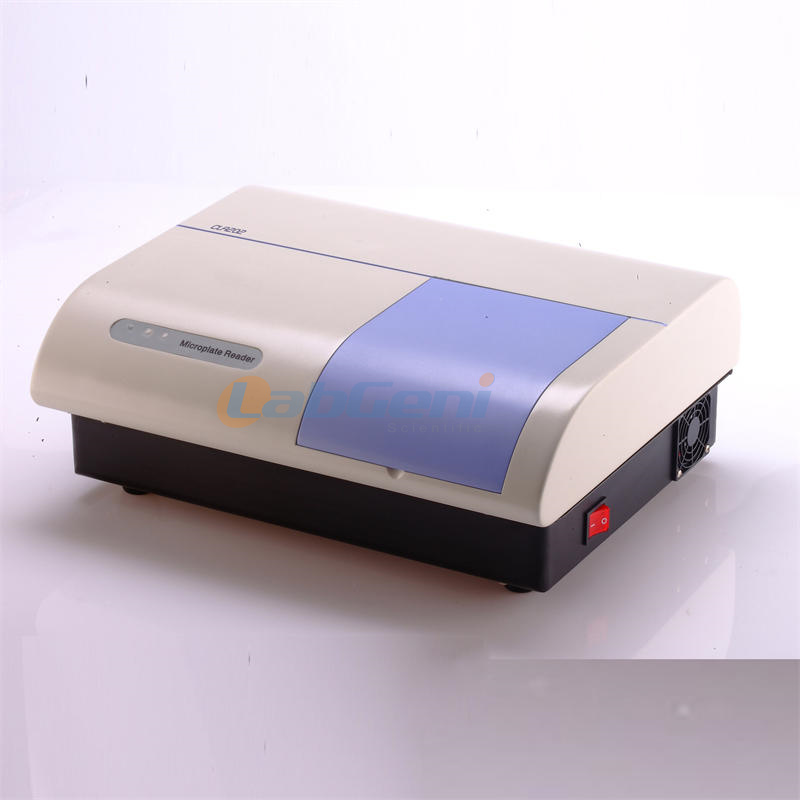

1.CLR202 Elisha Reader One Unit
2.Data processing software One set
3.External Printer One Unit
