Advanced optical path system
- Reliable optical system ensures accurate measurement results and good repeatability
- Multi-channel fiber optic measurement system, accurate and fast, 96-well detection of 5 holes
- Introducing international high-quality optical components (halogen lamps, filters, optical fibers, photovoltaic cells, etc.) through a global procurement model to make instruments more precise and perform better
Rich software features
- Full Chinese LCD display, the program is based on question and answer, user-friendly design makes operation more convenient and easy, easy to master
- It can be completely controlled by computer to realize the enzyme free workstation;
- The instrument is automatically checked and calibrated at startup, which ensures that the instrument is in normal state every time.
- Built-in oscillation function, you can edit the oscillation form as needed, and make the termination liquid fully mix to ensure the reliability of the result.
- Multiple methodological measurements for qualitative and quantitative testing
- With critical value analysis, calibration analysis, quality control and other functions
- Large storage capacity for 28 test programs
- Professional, fully-fledged software package for free programming and data transfer
- Free computer operating software, ready to connect with the computer at any time
Technical Parameters:

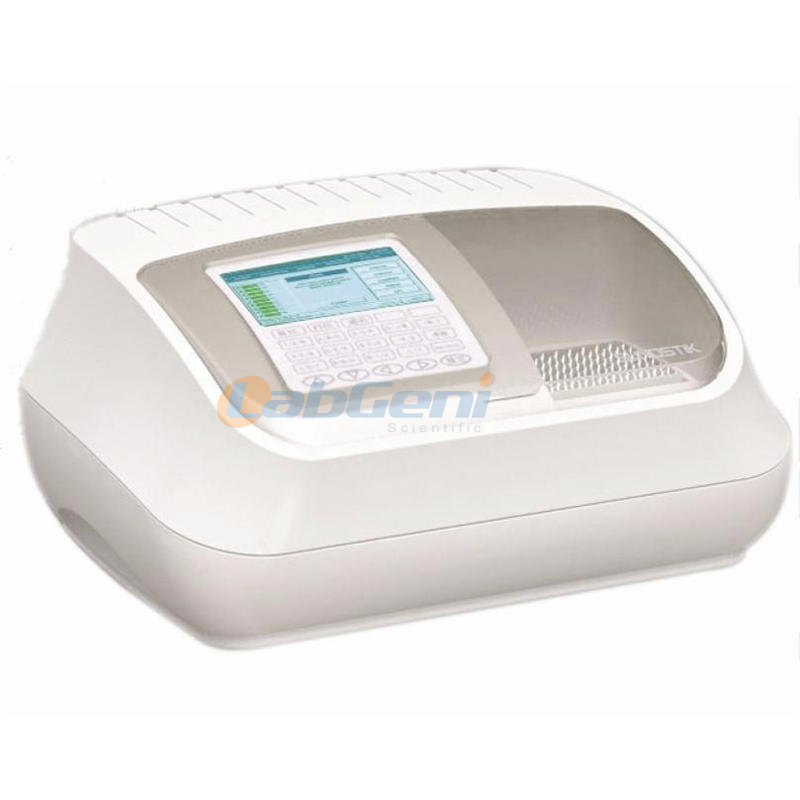

| Model | CLR-960 |
| Slat type | standard 96/48 hole or other types of microplates, strips |
| Test speed | 96 holes / 5 seconds |
| Light source | cold light source |
| Wavelength range | 340-750nm |
| Filters | 405nm, 450nm, 492nm, 630nm, with four vacancies |
| Repeatability | ≤±1% |
| Resolution | 0.001Abs |
| Linearity | ±1% (0.000-2.000Abs) |
| Measuring range | 0-4.0000Abs |
| Measurement method | single wavelength, dual wavelength, multiple wavelength |
| Blank mode | single hole blank, single row blank, single column blank |
| Calculation methods | absorbance, threshold, linear regression, logarithmic curve, quadratic polynomial, cubic polynomial, four-parameter logarithm |
| Vibration plate function | adjustable speed and time |
| Mode of operation | membrane button |
| Display | LCD Chinese LCD |
| External interface | RS232 serial interface, parallel interface |
| Power supply | AC220V/110v±22V, 50Hz/60Hz±1Hz |
| Net weight | 7kg |
| Volume | 440 (L) mm × 305 (W) mm × 154 (H) mm |
