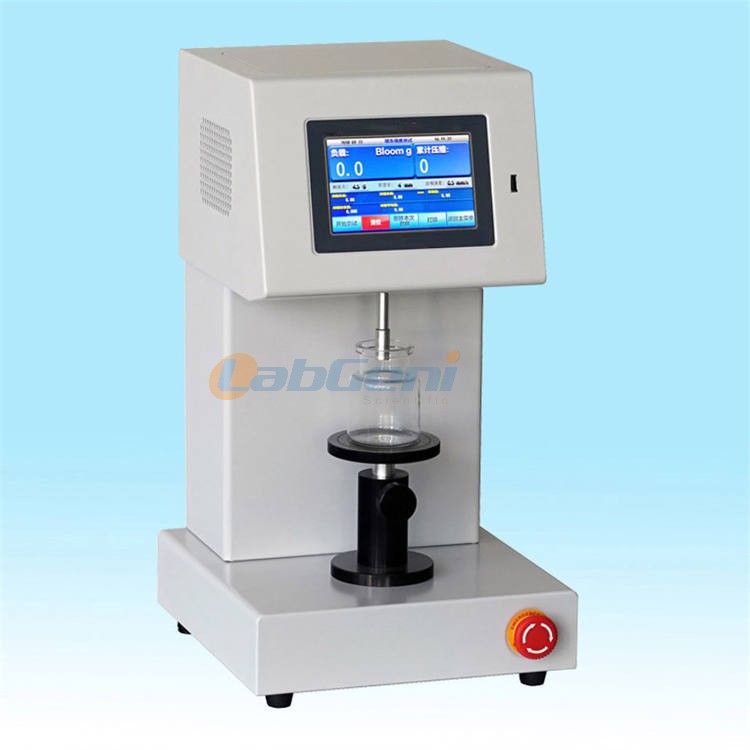

DJS-3 Drug Tablet Freezing force meter for Gelatin freezing strength testing

This model provides professional verification measurement procedures:

1. Measurement of load measurement accuracy
2. Verification of the measurement results can be printed in real time, while retaining files via USB storage



Configuration requirements of Freezing force meter

1. DJS-3 Freezing force meter1 set
2. DHW-3A precision constant temperature cold water tank (food grade thick stainless steel liner) 1 set
3. DZL-3 refrigerator (stainless steel evaporator) 1 set
4. Frozen bottle (capacity = 150ml internal diameter = 59mm height = 85mm) 16 sets



Working conditions:

1. Power supply voltage: 220V; Frequency: 50HZ;
2. Environmental conditions: 0 ° C ~ 40 ° C relative humidity 20% ~ 80%, indoor air environment without condensation.



Technical Characteristics of Freezing force meter

1. Load range: 0~1000g

Resolution: 0.1g

Accuracy: ±0.5% FSR

2. 2 Displacement range: 0~100mm

Resolution: 0. 1mm

Accuracy: ±0.1mm

3. 3 Speed ​​adjustment: 0.1mm/s~10mm/s

Speed ​​regulation resolution: 0.1mm/s

Accuracy: ±1% of setting accuracy

4. 4 Probe cylinder diameter: 12.700±0.010mm
5. 5 Four measurement modes, one precision verification measurement mode:

(1) Bloom-frozen strength test:

1 peak load

2 peak shape variable

3 final value load

4 work (mj)

5 cumulative standard deviation

(2) Normal-single compression test:

1 real-time load force

2 brittleness

3 hardness

3 resilience

4 blocking

(3) Hold Time-compression test:

1 trigger to set distance

2 continuous set time

3 peak load

4 peak shape variable

5 final value load

6 real time countdown

(4) Cycle Count – multiple compression test:

1 real time maximum

2 real time minimum

3 real-time average

4 final peak

5 real-time standard deviation

5 remaining times

(5) Static Load-load measurement accuracy accuracy verification measurement: enter the system-specific precision verification measurement interface, complete the verification measurement according to the standard procedure.

Verify that the measurement results can be accessed via USB access.

6. According to different test modes, after verifying the management rights, six parameter settings are provided:

1 trigger point: 1g~500g resolution 0.1g

2 shape variable: 0~90mm resolution 0.1mm

3 speed: 0.1mm/s~10mm/s resolution 0.1mm/s

4 hold time: 1-9999s

5 times of compression: 1-99

7. Output: RS232 serial print interface USB Serial port
8. Size: Length 330mm Width 290mm Height 530mm
9. Weight: 14.3Kg
10. color touch screen, embedded ARM’Cortex-M7′ core processor, with super-performance mechanical A / D module chip, to ensure high-speed acquisition and lossless processing of measurement data. Provide users with reliable and accurate measurement results.
11. Provide measurement accuracy verification procedures.
12. Provide administrator privileges (password login).
13. Editing print content through rights management: Support for inputting Chinese characters, numbers, and English.
14. USB serial port can realize massive data access and support historical measurement data audit trail.



Applicable standards:

◆Chinese Pharmacopoeia 2015 Edition

◆ National Standard “Food Additive Gelatin” GB6783-2013

◆ National standard “medicine gelatin hard capsule” GB13731

◆ Light industry standard “edible gelatin” QB/T4087-2010

◆ Comply with current Chinese GMP regulations
