Freezing force meter, Gelatin strength tester

Introduction:

DJS-3 (old model) Freezing force meter is a classic instrument developed and produced by Our company. for measuring the gelatinization strength of gelatin. It has been in production for 15 years. Has a large number of domestic users, and some overseas users.

Applicable standards:

◆ “Chinese Pharmacopoeia” 2015 edition.

◆ National standard “food additive gelatin” GB6783-2013.

◆ National standard “medicine gelatin hard capsule” GB13731.

◆ Light industry standard “Edible Gelatin” QB/T4087-2010.

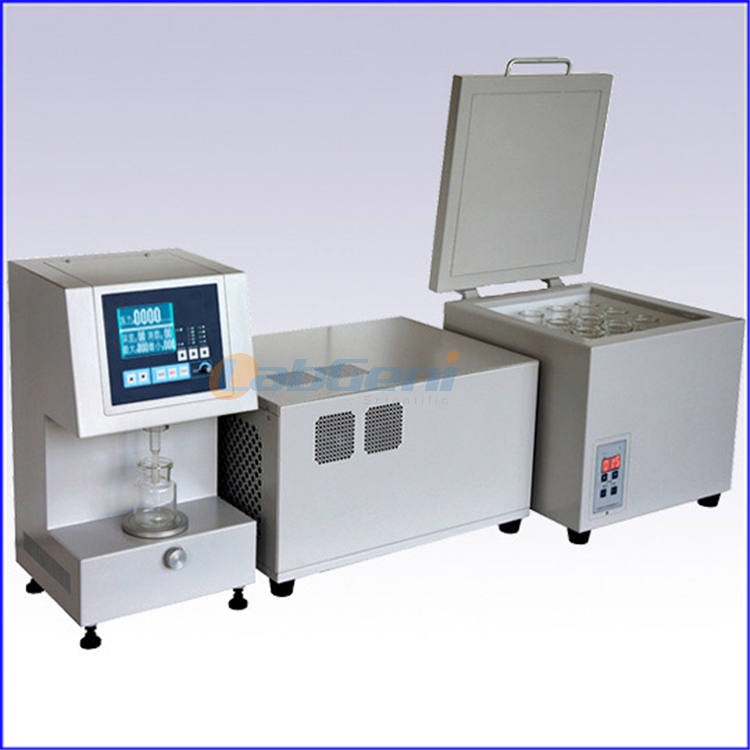

The composition of the instrument system:

DJS-3 (old model) Freezing force meter host 1: Determination, collection, processing, display and printing of gelatinized freezing strength data.
DHW-3A precision constant temperature monitoring cold water tank 1 set: Provide a real-time monitoring and insulation environment of 10 degrees Celsius ± 0.1 degrees for the gel to be tested.
DZL-3 high-efficiency environmentally friendly chiller 1 set: Efficient cooling of the constant temperature water tank water bath.
16 sets of standard frozen bottles. (in accordance with national standards and British standards)

System structure and features:

High-definition LCD liquid crystal display, users can enjoy intelligent operation according to the screen prompts, and each operation process gives Chinese characters prompt and quantitative indicators.
It can automatically submit the maximum, minimum, average, final value or peak value of the tested rubber sample.
Automatic measurement mode can help you get the freezing strength value faster, more accurately and closer to the actual.
The instrument provides any sampling depth preset, which is convenient for users to extract all levels of data of the glue sample.
Standard new front paper change wide line printer for accurate recording of real-time measurement results.
Automatic correction of nonlinear error, automatic fault diagnosis alarm, automatic over-range protection, automatic error correction prompt.

Main Specifications:

5 sampling speeds: 0.1mm/s 0.2mm/s 0.5mm/s 1mm/s 2mm/s
4 sampling modes: single step, loop, hold, automatic
2 sampling results: final value or peak value
Measuring probe cylinder diameter: 12.700±0.010mm
Test range: 1-1000g
Resolution: 1g
Repeated measurement error: ±1g
Test stroke: 1-75mm
Travel error: ≤±0.1mm
High-speed measurement stroke error: ≤±0.1mm
Measured value: in Bioom g
Frozen bottle: Capacity = 150ml Internal diameter = 59mm Height = 85mm
Temperature control range: 5°C -30°C
Temperature control accuracy: 10°C ± 0.1°C
Cooling time: 30°C→10°C < 40min
Refrigeration working fluid: environmental protection
Freezing force meter model: DJS-3 (old models)
Dimensions: length * width * height (mm) = 285 * 270 * 500 weight: 16.5Kg
Precision constant temperature monitoring cold water tank model: HW-3A (high quality thick stainless steel liner, long service life)
Dimensions: length * width * height (mm) = 400 * 430 * 380 weight: 22.5Kg
Refrigerator model: DZL-3 (high quality thick stainless steel evaporator, long service life)
Dimensions: length * width * height (mm) = 540 * 400 * 310 weight: 28.5 Kg
