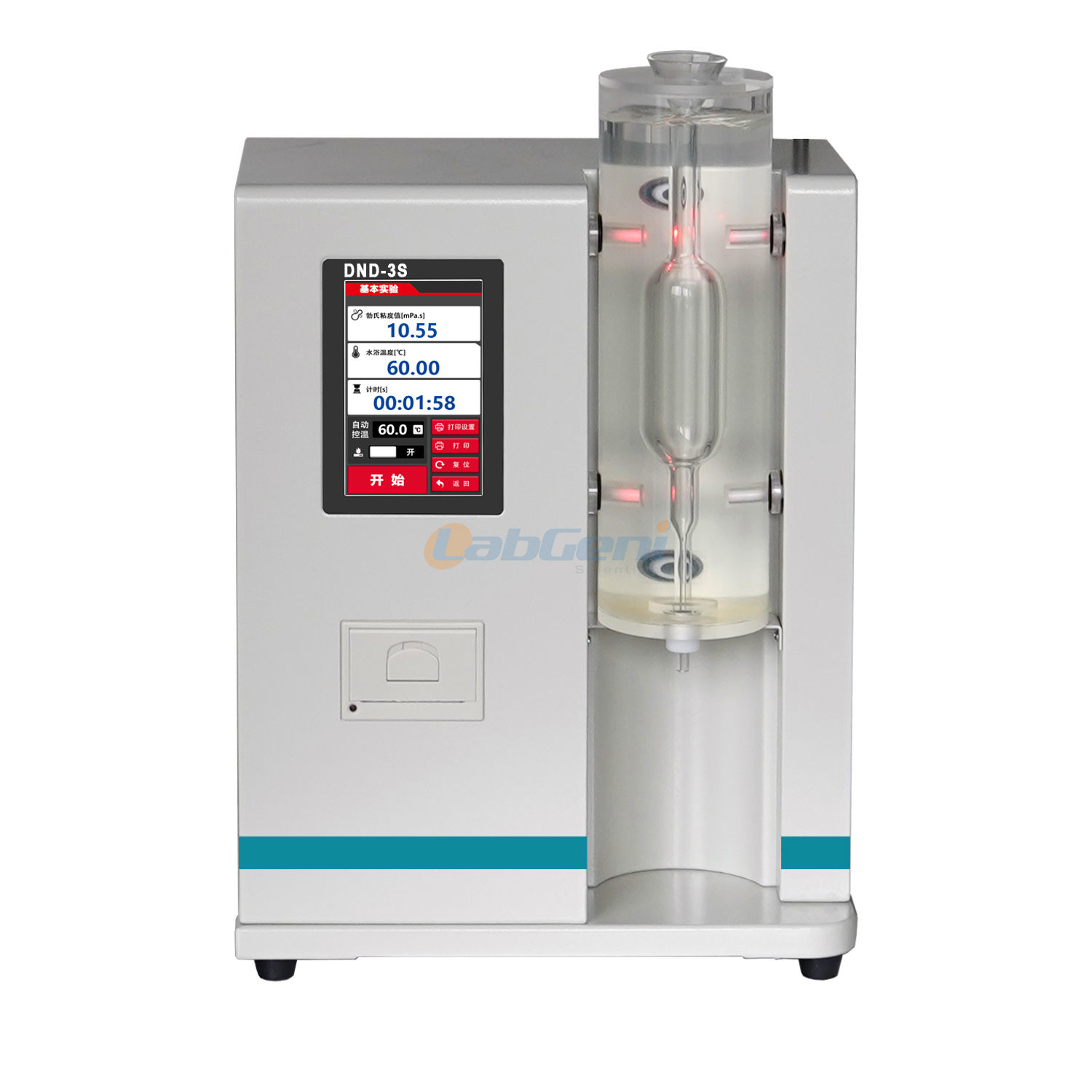

DND-3S Gelatin Boehm viscosity tester

Product introduction of Gelatin Boehm viscosity tester

The DND-3s Boehmite Viscometer is an upgraded and improved product based on the original DND-3 Boehmite viscosity tester. The DND-3s increases the temperature and temperature of the test tube from the two aspects of the accuracy and convenience of the measurement. Accurate calibration of a 1/3B precision mobile electronic package in 316 stainless steel. Standard temperature sensor (replaces a glass mercury thermometer that requires manual visual inspection and is fragile). DND-3s uses industrial grade high resolution color touch screen, 32bit 400MHz MCU, provides two-way monitoring of bath temperature and temperature of the tested product, provides interactive temperature calibration and calibration, provides correction and calibration of interactive viscosity tube correction factor, and provides any Temperature setting and constant environment. It also has a print function option.



Scope of application:

It is suitable for the viscosity performance test of all gelatin such as edible gelatin, medicinal gelatin and industrial gelatin.



The main technical indicators of the DND-3s Boehm viscosity tester:

◎ Viscosity measurement range: 0-999.99 mPa.s

◎ Viscosity value display resolution: 0.01 mPa.s

◎ Instrument measurement accuracy: ±0.02 mPa.s

◎ Time measurement range: 0-5000 seconds

◎ Time measurement accuracy: ≤0.01 seconds

◎ Time display resolution: milliseconds

◎ System real-time date and time display: 24 hours error ≤ 3 seconds

◎ Water bath temperature control range: room temperature – 70°C

◎ Water bath temperature setting resolution: 0.1°C

◎ Water bath temperature control accuracy: ±0.1°C

◎ Water bath temperature display resolution: 0.01°C

◎ Tested product temperature display resolution: 0.01°C

◎ Viscometer volume: 100 ml

◎ Viscometer volume error: ±0.5 ml

◎ Longitudinal center moment of the measuring device: 152 mm ± 0.5 mm

◎ Working power supply: AC 220V±10% 50Hz ≤500W

◎ Environmental conditions: room temperature 10 ~ 30 ° C humidity <75%

◎ Dimensions: 365 × 215 × 535mm (length * width * height)

◎ Machine weight: about 12 kg
