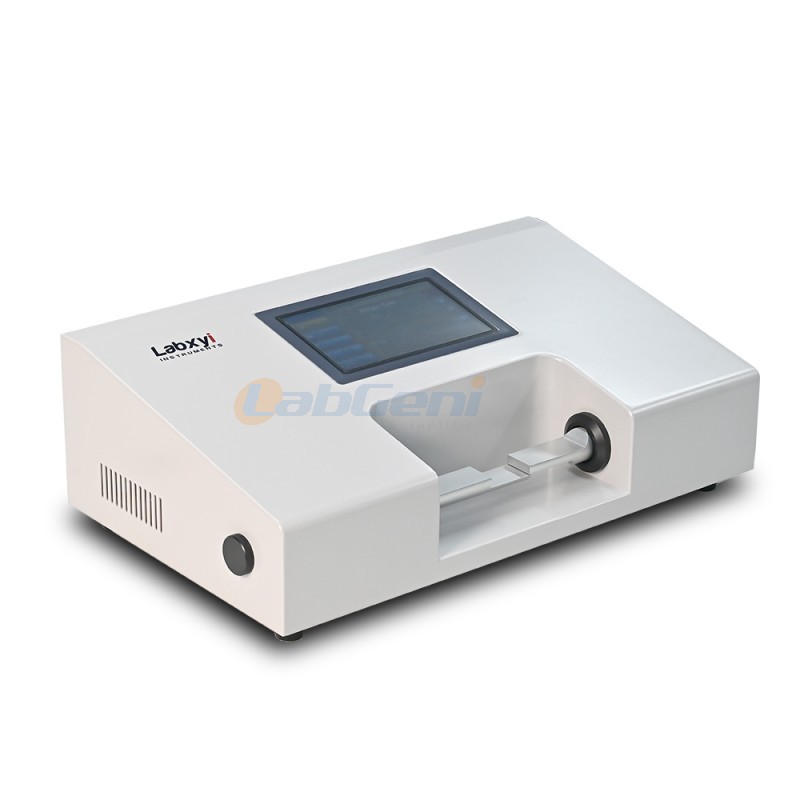

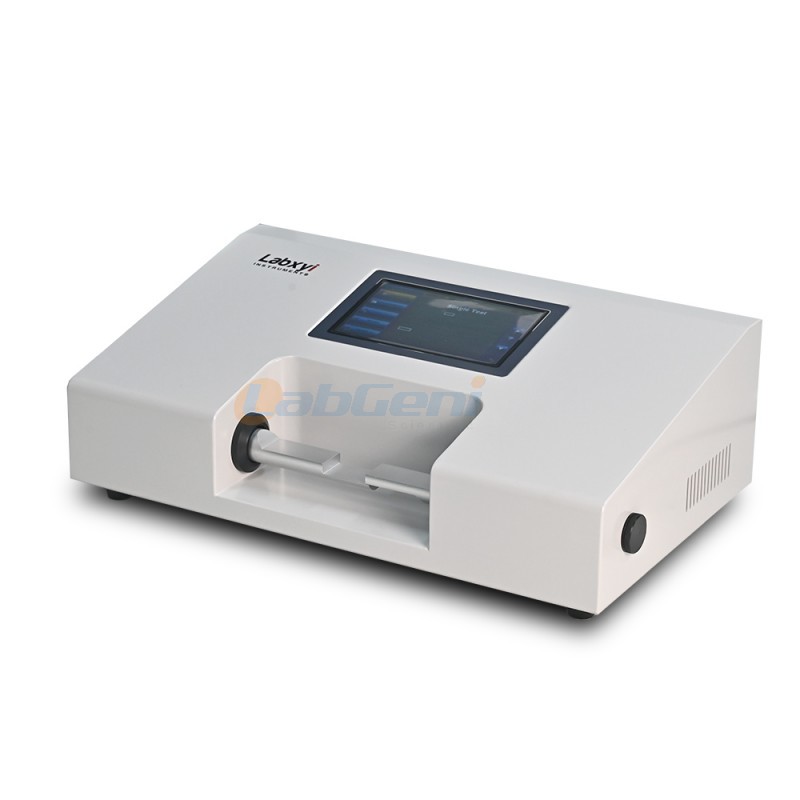

DYD-5S Smart tablet hardness tester

DYD-5s smart Drug tablet hardness tester developed and produced by our company is a professional grade tablet hardness measuring instrument; it has a wide measuring range of 5N~350N and a large diameter tolerance of 2mm~40mm. There is a higher resolution of 0.01N and a measurement accuracy of ±1% rdg±5dgt. At the same time, it provides real-time display load characteristic curve with time change; additional system management authority; USB mass storage, measurement data audit trail and other functions. The hardware uses the embedded ARM’Cortex-M7′ core processor and the super-performance mechanical A/D module chip to ensure high-speed acquisition and lossless processing of measurement data. Provide reliable and accurate measurement results for professional users.



System configuration requirements:

1. DYD-5s smart Drug tablet hardness tester1 set
2. Standard debris collection box 1 piece
3. brush 1



working conditions:

1. Power supply voltage: 220V; Frequency: 50HZ;
2. Environmental conditions: 0 ° C ~ 40 ° C relative humidity 20% ~ 80%, indoor air environment without condensation.



technical characteristics of Drug tablet hardness tester

1. Hardness measurement range: 5N-350N (35Kg) and 5N-500N (50Kg)

Resolution: 0.01N

Accuracy: ±1%rdg±5dgt

Real-time display of measurement characteristics of load over time

2. Allowable measurement diameter: 2mm~40mm
3. Tablet speed adjustment range: 0.1mm/s~5mm/s

Speed ​​regulation resolution: 0.1mm/s

Accuracy: ±1% of setting accuracy

4. Measurement method

Single chip accumulation;

Continuous decrement (measured up to 200 pieces)

Preset grouping (maximum 10 groups, 1-20 tablets per group)

5. Unit of measure: Newton-N, kilogram force-Kgf (unit conversion can be achieved by tapping the screen)
6. Display: 1024*600 color graphics dot matrix, K600+ core 65K color 7 inch touch screen.
7. Verification: The accuracy of the unit can be verified using standard weights. If the accuracy is deviated, the user can enter the calibration interface of the instrument; according to the screen prompt, the instrument error can be easily eliminated.

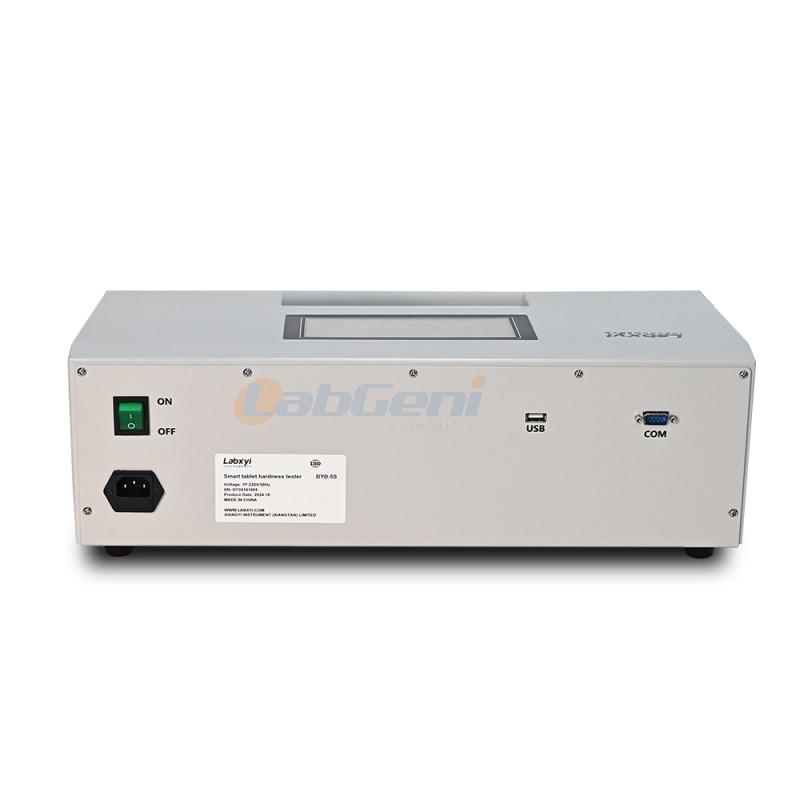

8. Output: RS232 serial print interface, USB serial port for massive data access and support for historical measurement data audit trail
9. Embedded ARM’ Cortex-M7′ core processor, combined with super-performance mechanical A/D module chip, guarantees high-speed acquisition and lossless processing of measurement data. Provide reliable and accurate measurement results for professional users.
10. Cumulative tablet mode provides pause and continuation work touch keys for easy observation and analysis of the sample break process curve.
11. Real-time display of the whole measurement characteristic curve, the coordinates show the complete test process, providing an intuitive basis for analyzing and judging the hardness of the sample.
12. Real-time display: current date and time, pressure, number of slices, speed, average, maximum, minimum, variance, standard deviation.
13. Provide administrator rights and general user rights hierarchical management (password login).
14. Provide Chinese and English input interface for inputting Chinese characters, numbers, English, editing sample name, number, and operator name:
15. Automatically calculate the ejection stroke, compress the test duty cycle, and improve work efficiency.
16. Provide one-click switching between Chinese and English operation interface.
17. Dimensions: length 330mm width 290mm height 530mm
18. Weight: 14.3Kg



Applicable standards:

1. JB/T20104-2007
2. Compliance with current GMP regulations
