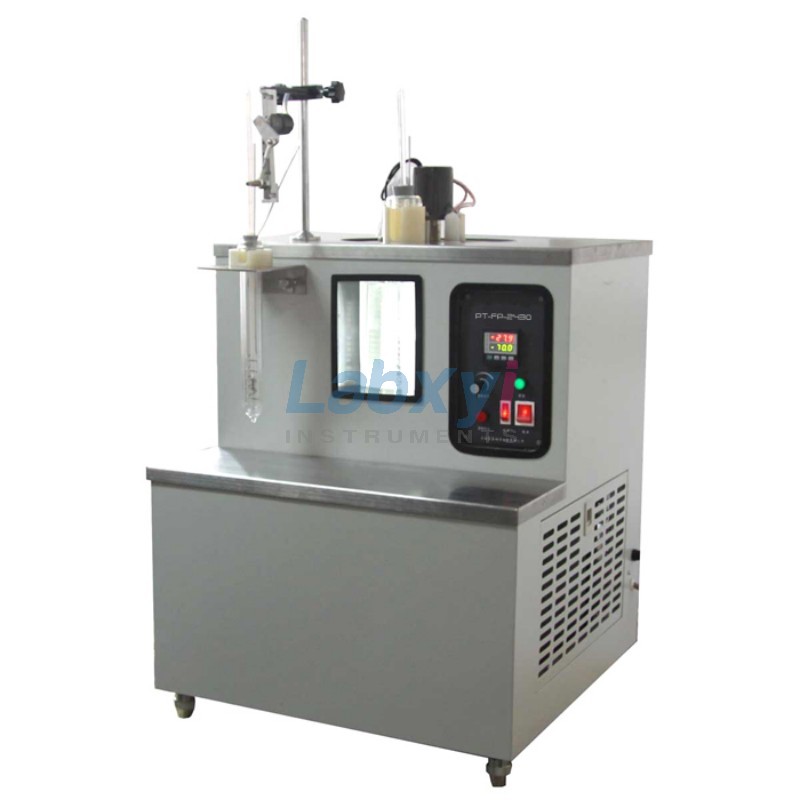

PT-FP-2430 Freezing Point Tester For Jet Fuels

PT-FP-2430 Freezing Point Tester

PT-FP-2430 Freezing Point Tester is designed and made as per the National Standard GB/T2430 “Test Methods for Freezing Point of Jet Fuels”, and Industry Standard of Petrochemical “Test Methods for Freezing Point of Engine Coolant”. If select different configurations, it can be used to determine freezing point of jet fuels, engine coolant and engine concentrate. It is multifunctional instrument.

Purpose
PT-FP-2430 Freezing Point Tester is designed and made as per the National Standard GB/T2430 “Test Methods for Freezing Point of Jet Fuels”, and Industry Standard of Petrochemical SH/T0090 “Test Methods for Freezing Point of Engine Coolant”. If select different configurations, it can be used to determine freezing point of jet fuels, engine coolant and engine concentrate. It is multifunctional instrument.

Technical parameters
1. Power supply: AC 220V±10%, 50 Hz;
2. Cold trough: stainless steel trough with two layer glass observation window;
3. Controlling temperature of cold trough: +20°C ~ -70°C;
4. Temperature controlling accuracy: ±0.5 °C;
5. Bath stirrer: 6 W, 1200 RPM;
6. Refrigeration system: new type of refrigeration compressor;
7. Sample stirrer: By an electromagnetic stirrer; 0 ~ 120 RPM;
8. Ambient temperature: ≤30 °C;
9. Relative humidity: ≤85%;
10. Total power consumption: not more than 2000 W;
11. Dimensions (m): 0.64*0.64*0.88
