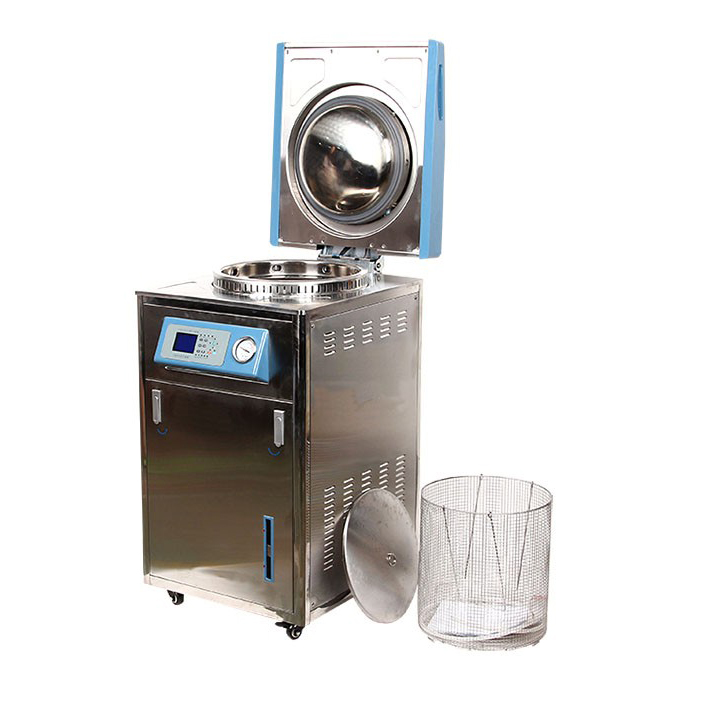

Suitable for sterilizing instruments, dressings, liquid, utensils, and other items
Features
- SS304 Stainless steel material
- Microprocessor control, LCD display, with water level, time & temperature can be controlled
- Rotary quick opening structure
- Safety valve to ensure maximum pressure at 0.165Mpa
- pressure interlock interactive
- Alarm system for water-leakage, over-temperature, low water level protection.
- Beep sound alert & auto shutdown when sterilizing finished
- pressure self-locking linkage cover
- Self-expand silicone sealing ring
- Water drain valve
- Printer is optional
Specifications:
| Model | VSA-M40KCS VSA-M60KCS VSA-M80KCS | VSA-M40KB-II VSA-M60KCS-II VSA-M80KCS-II | VSA-M40KB-III VSA-M60KCS-III VSA-M80KCS-III |
| Capacity | 40L 60L 80L | 40L 60L 80L | 40L 60L 80L |
| Sterilizing | Auto control | Auto control | Auto control |
Steam emission by internal circulation | – | Yes | Yes |
| Vacuum drying | – | – | Yes |
| Display | LCD | LCD | LCD |
| Lid open | Rotary | Rotary | Rotary |
| Basket size (D*H mm) | 350*190 * 1 350*360 * 1 350*190(360) * 2 | 350*190 * 1 350*360 * 1 350*190(360) * 2 | 350*190 * 1 350*360 * 1 350*190(360) * 2 |
| Safety max pressure | 0.24Mpa | 0.24Mpa | 0.24Mpa |
| Timer range | 0 ~ 99 hours | 0 ~ 99 hours | 0 ~ 99 hours |
| Temperature setting | 50 ~ 138°C | 50 ~ 138°C | 50 ~ 138°C |
| Power | 3.5 KW | 3.5 KW | 3.5 KW |
| Chamber size | Φ370*380 Φ370*560 Φ370*750 | Φ370*380 Φ370*560 Φ370*750 | Φ370*380 Φ370*560 Φ370*750 |
| Quick open | ● | ● | ● |
| Auto control of sterilization program | ● | ● | ● |
| Safety interlock | ● | ● | ● |
| Water leakage protect | ● | ● | ● |
| Self inflating seal | ● | ● | ● |
| Auto alarm | ● | ● | ● |
| Auto exhaust | – | ● | ● |
| Vacuum drying | – | – | ● |
| Power supply | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Weight | 80 kg 90 kg 100 kg | 80 kg 90 kg 100 kg | 80 kg 90 kg 100 kg |
| Dimensions (mm) | 660*780*950 660*780*1150 660*780*1330 | 660*780*950 660*780*1150 660*780*1330 | 660*780*950 660*780*1150 660*780*1330 |
