Features:
- Teflon (PTFE) and fluorine rubber dual rotating seal, patented technology to ensure high vacuum.
- the introduction of foreign advanced frequency control system, temperature control system, accurate and reliable.
- a vacuum switching valve, without affecting the system vacuum distillation of the situation and the solution can be continuously collected.
- water bath electric lift and manual lift support, easy to use.
- PTEE discharge valve, corrosion resistance, pollution-free.
Specifications:
| Technical Parameters: Model |
RE-LA-5 |
RE-LA-10 |
RE-LA-20 |
RE-LA-50 |
|
Capacity of Rotary Bottle |
5L |
10L |
20L |
50L |
|
Flanged diameter |
Φ50mm |
Φ95mm |
Φ95mm |
Φ125mm |
|
Capacity of Collecting bottle |
3L |
5L |
10L |
20L |
|

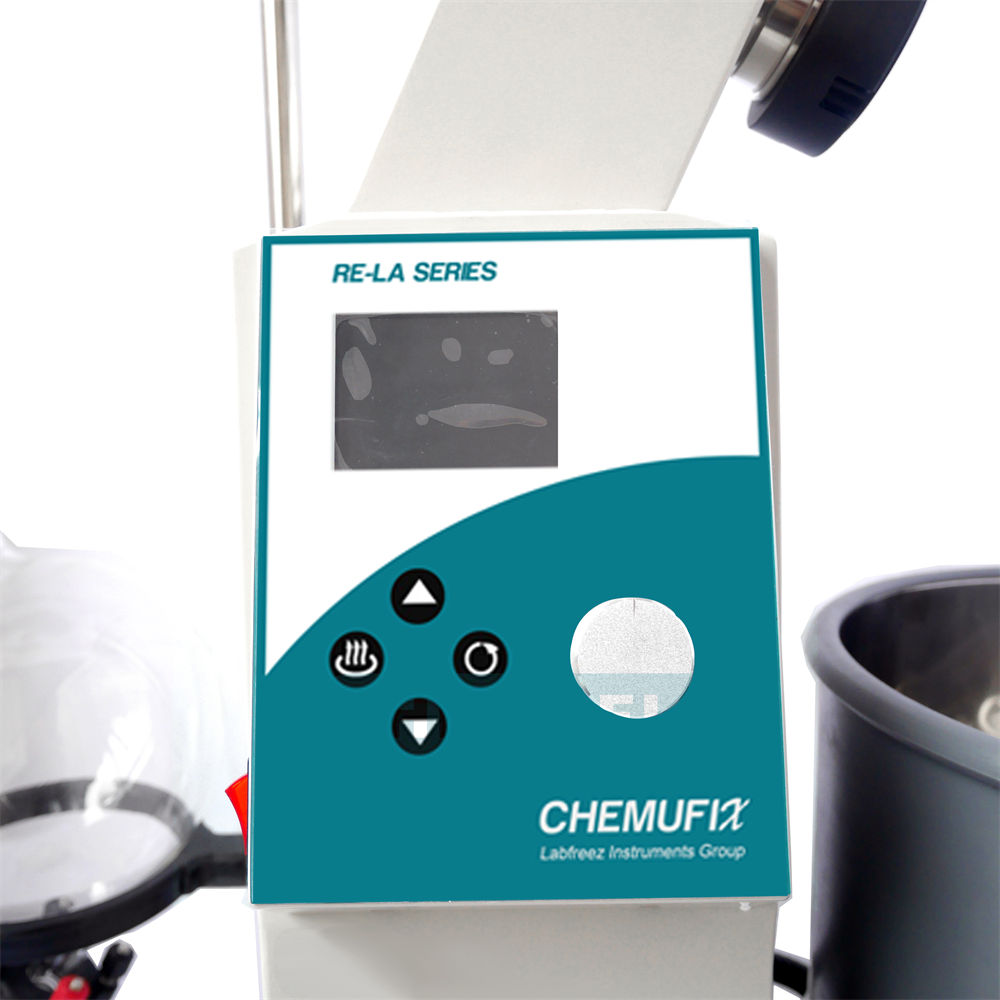

Rotary control |
LCD display, frequency conversion stepless |
|||
|
Rotary speed |
10to140r/min |
10to130r/min |
10to130r/min |
10to110r/min |
|
Power of rotary motor(W) |
40W |
90W |
120W |
120W |
|
Condensing tube |
Vertical double serpentine tube |
Vertical, main + auxiliary cooling and highly efficient three circulating |
||
|
Water Bath |
Stainless steel water bath |
|||
|
Temp. Range |
Digital display, RT~99°C |
|||
|
Vacuum degree |
399.9Pa (below 3mmHg) |
|||
|
Evaporating capability |
Water≥2L/h |
Water≥3.2L/h Alcohol≥6.5L/h |
Water≥5L/h |
Water≥9L/h |
|
Elevating mode |
Electric |
Electric & manual |
||
|
Elevating stroke |
0~150mm |
0~160mm |
0~190mm |
0~230mm |
|
Power supply |
220-240V/50Hz |
380V/50Hz |
||
|
Power |
2.2KW |
4.8KW |
6.3KW |
8.3KW |
|
Dimensions(mm) |
765L*400W*1070H |
920L*550W*1700H |
1250L*600W*2100H |
1320L*770W*2340H |
