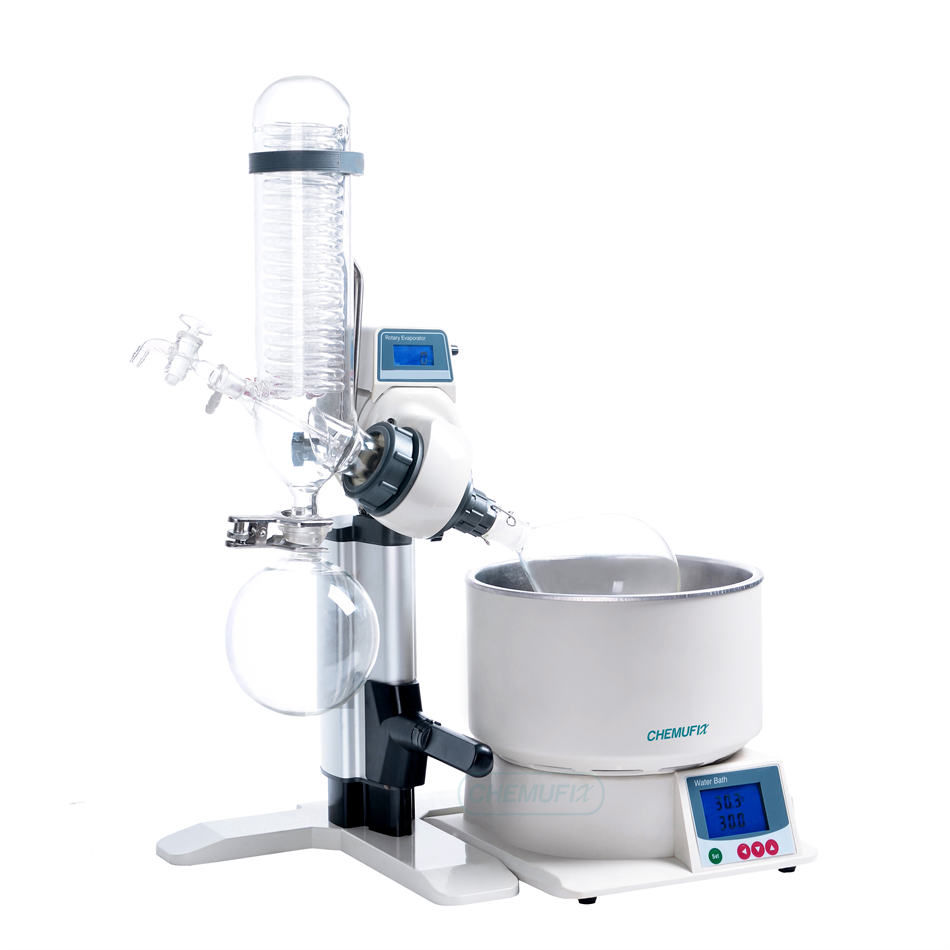

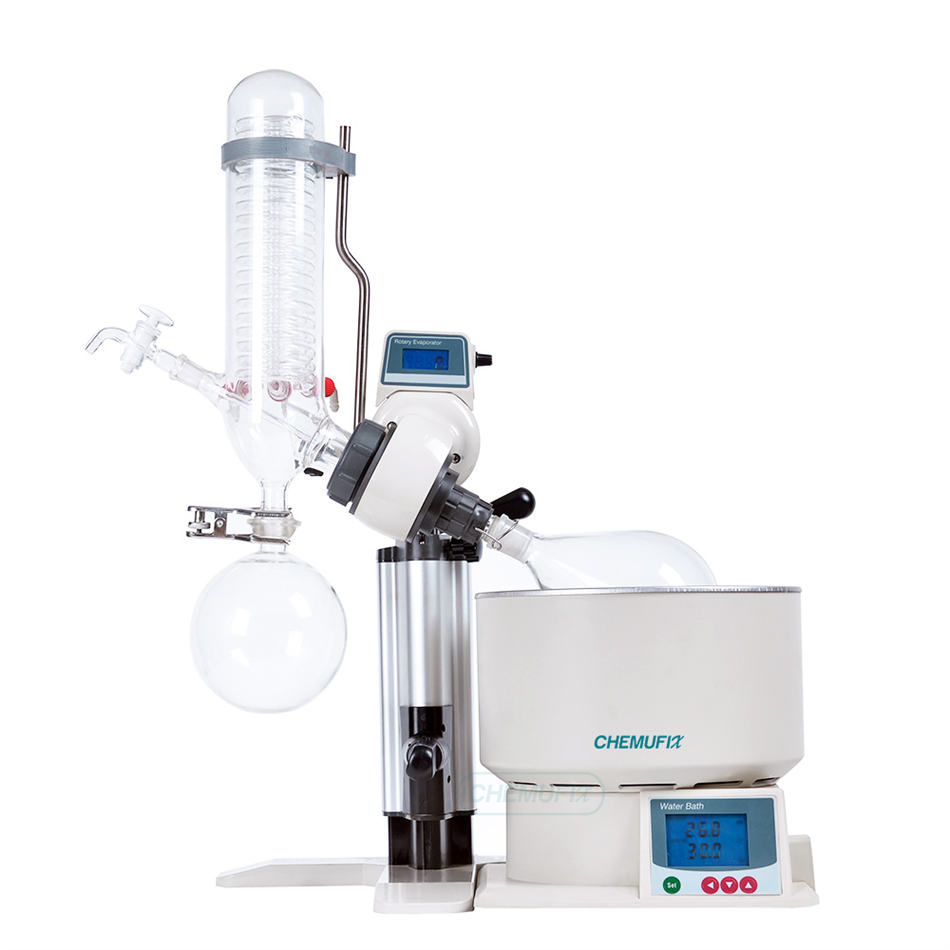

RE-2S-VD 2L Rotary Evaporator was developed using the principle of vacuum negative pressure, constant temperature heating, and thin film evaporation. The imported high-end frequency converter is used to control the stepless speed adjustment to make the glass rotating bottle rotate at a constant speed. The material forms a large area of uniform film on the wall of the bottle, and then the controlled constant warm water bath is evenly heated to the rotating bottle and evaporates at high speed under vacuum conditions. The solvent vapor is cooled by an efficient glass double condenser and recovered in a collection bottle. The instrument is also equipped with a feed interface and a discharge mechanism to facilitate automatic and continuous work during evaporation.
Specifications
| MODEL | RE-2S-VD 2L Rotary Evaporator |
| Glass | GG-17 |
| Support Material | aluminium alloy |
| Boil material | Aluminum alloy + Teflon composite pot
fully enclosed and heated |
| Rotary bottle volume | 1L |
| Collection bottle volume | 1L |
| Rotary power | 40W |
| Spin speed | 10-180rpm |
| Evaporation capacity | 20ml/min ( Evaporation of water ) |
| vacuum | 0.098Mpa |
| Heating power | 1.5KW |
| Temperature of bath | 0-99°C |
| Temp. control accuracy | ±1°C |
| Elevation stroke | 100mm+150mm
( Slide lift + Manual lift ) |
| Voltage / Frequency (V/Hz) | 220V/50Hz |
| Shape Size | 560*320*665mm |
| Inner bath size | 260*140mm (Diameter * Height) |
| weight | 10KG |
| Speed regulating mode | Stepless speed adjustment |
| Temperature Display | LCD display |
| Temp. control method | Smart temperature control |
| Seal way | Teflon + Fluoride Double Seal Ring |
| Lift mode manual | Manual Weight Balancing |
| condenser | Vertical Condenser Double Snake Tube |
| Continuous Feeds | 19# Label feeding valve |
| Safety function | Overload Protection Function |
Typical application
