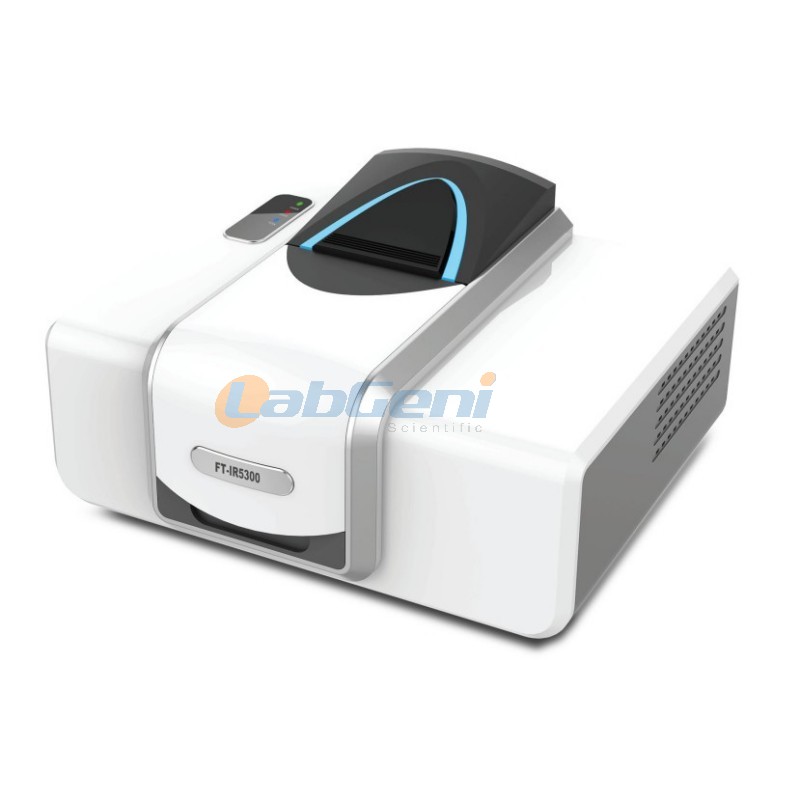

Based on more than thirty years experience in FTlR R&D and manufacturing, labgeni has launched a new type FT-IR5300 with fully independent intellectual property rights.Adhering to consistent excellent quality and superior performance, the new model obtains the best balance between inteligence and convenient operation, advance performance and low operation and
maintenance cost. lt is a good choice for basic science research analysis, production quality control, testing and detection in various fields.
Innovations
- Real-time diagnosis of instrument status
real-time monitoring of instrument working status , performance and communication
- optional temperature stabilized , high sensitivity DLATGS detector module
Providing stable detector response , thus ensuring high sensitivity, good reproducibility and stability of IR Spectral analysis.
- ” lnternet+ detection” instrument design with multiple communication options
Ethernet interface as standard supply for data transfer, WIF Wireless communication as an option , adapting to ” Internet+ detection ” instrument development trend , setting up a basic platform for interconnected tests , remote operation and maintenance , and data cloud computing.
Brand-new powerful MainFTOS suite software workstation
Features
High sensitivity optical system
Cube-corer Michelson interferometer combined with patented fixing miror aignment technology ( Utility model ZL 2013 2 0099730.2ixing miror alignment assembly ), to ensure long term stablity, without the need of dynamic alignment which needs extra complicatedelectronic circuits. Reflecting mirrors are coated with gold to provide the maximum light throughput and ensure the detection sensitivity.
High stability modular partition design
Compact structure modular design with layout on cast aluminum base and overall balance of mechanical robustness and partition heatdissipation, ofering higher ability of deformation resistance and less sensiive to vibrations and thermal variations, greatly improves themechanical stability and long term working stability of the instrument.
Intelligent multi-sealed moisture-proof design
Multiple sealed interferometer, large-capacity desiccant cartridge with visible window and easy replacement structure, real-timemonitoring of temperature and humidity inside the intererometer, getting rid of influences of high temperature, high humidity and chemicalcorrosions to the optical system in many ways.
Innovated integration electronic system
High sensitivlity integrated DLATGS detector pre-amplifier technology, dynamic gain amplification technology, high precision 24-bit AVDconversion technology, real-time control and data processing technology, digital filter and network communication technology, ensuringhigh quality real-time data collection and high-speed transmission.
Good anti-electromagnetic interference capability
The electronic system is designed to meet CE certificaion and electromagnetic compatibility requirements, minimizing electromagneticradiation in design and technology, in line with green instrument designing concept.
High intensity lR source assembly
High intensity,long lifetime lR source module, with the highest energy distributed in fingerprint region, adopts a reflex sphere design toobtain even and stable iR radiation.Exteral isolated iR source module and large space heat dissipation chamber design provide hichelthermal stability and stable optical interference.
The sampling compartment
The sampling compartment,reserving accessory mounting holes on the base plate, is wide enough for various accessories such asDefused/Specular Reflection, ATR, Liquid cell, Gas cell, and lR microscope etc.
Specification
| Interferometer | Cube-corner Michelson interferometer | |
| Beam spliter | Multilayer Ge coated KBr | |
| Detector | Room temperature DLATGS module (standard) | Temperature stabllzed, high sensitivity DLATGS module (optional) |
| IR Source | High intensity,long lifetime,air-cooled IR source | |
| Wavenumber Range | 7800cm⁻¹~350cm⁻¹ | |
| Resolution | 0.85cm⁻¹ | |
| Signal to noise ratio | Beter than 20,000:1 (RMS value,at 2100cm⁻¹-2000cm⁻¹~or 2100cm⁻¹，2200cm⁻¹, resolution:4cm⁻¹,detector:DLATGS,1 minute data collection) |
|
| Wavenumber Accuracy | ±0.01 cm⁻¹ | |
| Scanning Speed | Microprocessor control, different scanning speed selectable |
|
| Software | MainFTOS Suite software workstation, compatible to all version Windows OS |
Various specialized functional software modules(optional) |
| Communication | Ethemet interface(standard) | WIFI wireless communication(optional) |
| Data Output | Standard data format,report generation and output | |
| Status Diagnosis | Power on self check,real-time temperature and humidity monitoning and reminders |
|
| Cerification | FDA 21 CFR Part11 compliance, Ia/OQ/PQ(Optional) |
|
| Environment Conditions | Temperature:10℃~30℃,humidity:less than 70% | |
| Power Supply | AC220V±22V,50Hz±1Hz | AC110V(optional) |
| Dimensions &Weight | 520×435×255mm,24kg | |
| Accessories | Transmission sample holder(Standard) | Optional accessories such as gas cell liquid cell,DefusedSpecular Refleaction, single/multi reflection ATR,etc. |
