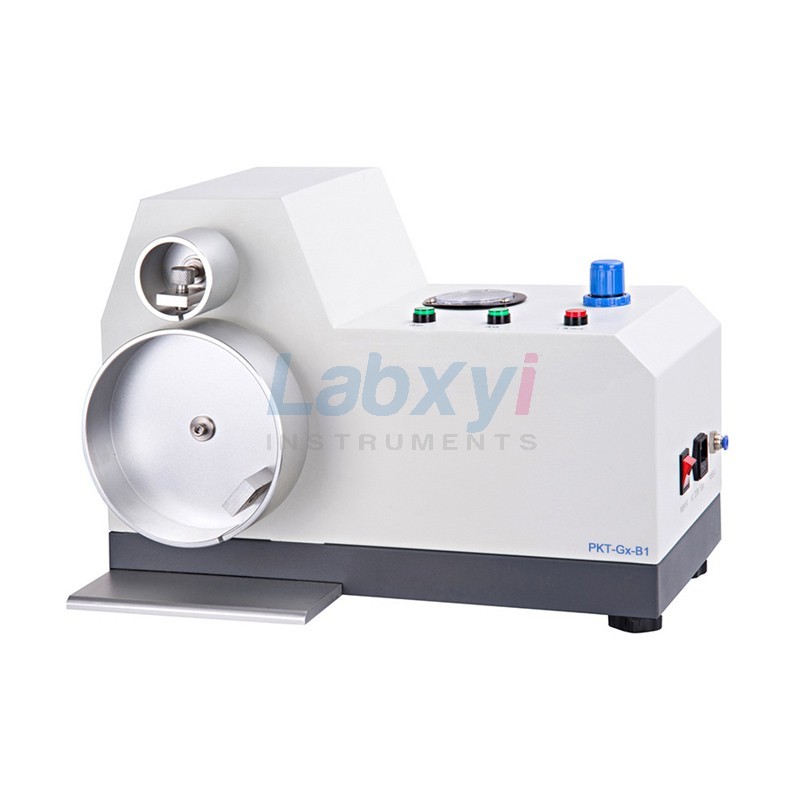

This instrument tests the ink layer bonding strength of printed plastic film, also applicable to the bonding layer formed by other process such as lamination and coating. It is pneumatic drive to apply pressure, can adjust pressure.
Working Principle
Stick adhesive tape to the printed surface of test sample, then peel them off, measure the stripped status of ink layer to evaluate the bonding strength. This instrument is used together with Gx-Y1 Roller Pressing Machine.
Standards
GB/T 7707-2008, GB/T 7706-2008
Specifications
| Peeling pressure |
100N |
|
Peeling speed |
0.8m/s |
|
Disc A size |
Φ170mm, width 55mm |
|
Disc B size |
Φ65mm, width 55mm |
|
Gas source |
compressed air, 0.6Mpa (user provide) |
| Gas port | Φ6mm gas pipe |
|
Instrument size |
45×30×34cm |
