Features:
1. Microprocessor control, operated by touch panel, LED and LCD display, operated data can be saved automatically, RCF value can be set directly for working, easy to use.
2. Brushless converter motor which has high torque, High speed bearing from Europe, smoothly running and maintenance-free.
3. Multistage damping system, the freon-free compressor from Europe, low noise and slight vibration，green.
4. Steel body, stainless steel centrifugal chamber, imports of key components, durable and easy to clean.
5. Rotor identification system, Over-speed, over-temperature, door interlock, imbalance protection. The function of rotor service life calculation, ensure safety.
6. Pre-cooling design for chamber, fast cooling. Proprietary SCT speed control design, fast acceleration and deceleration, high efficiency.
7. Adjustable acceleration and deceleration from grade 0 to 9 or directly set the time of Accel/Decel, and can be store 40 kinds of self-defining operating models, to achieve the best centrifugal result.
8. Proprietary SBT control technique and rotor design, to avoid mix up, ensure getting maximum specimen.
9. Hold-on and transient centrifuging, easy to diversification centrifugation.
10.Not only be equipped with high capacity and but also can run at high speed, it is a multi-purpose centrifuge, widely used in research and production.
Technical Parameter:

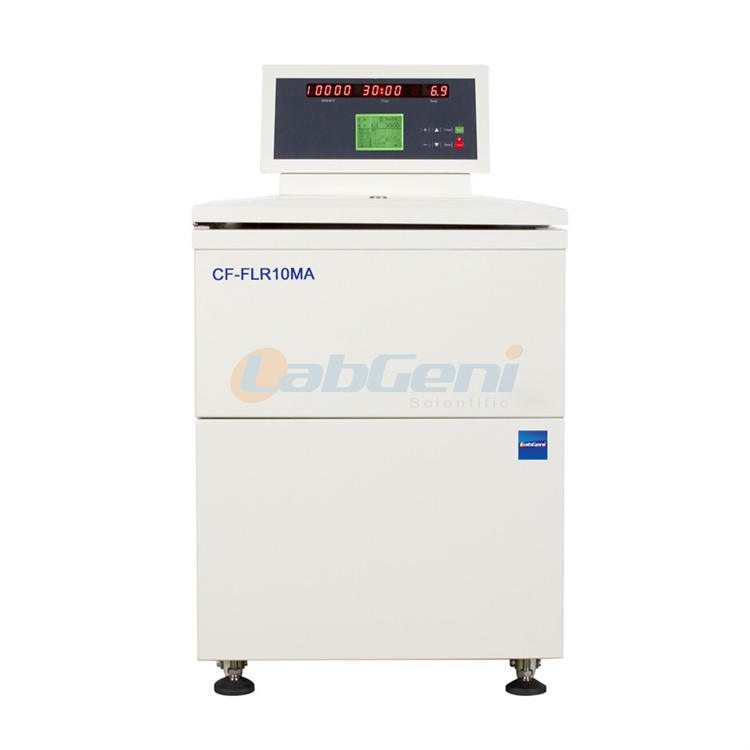

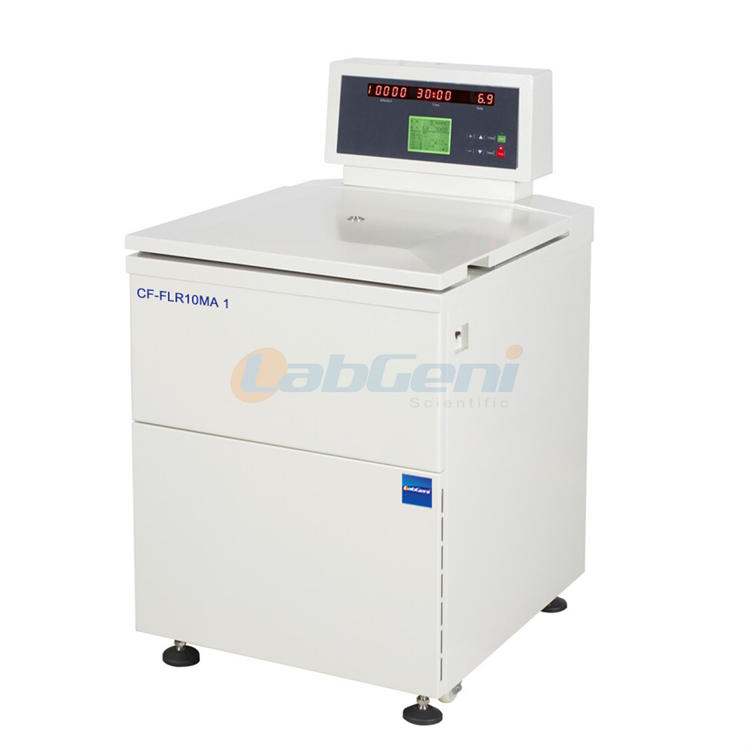

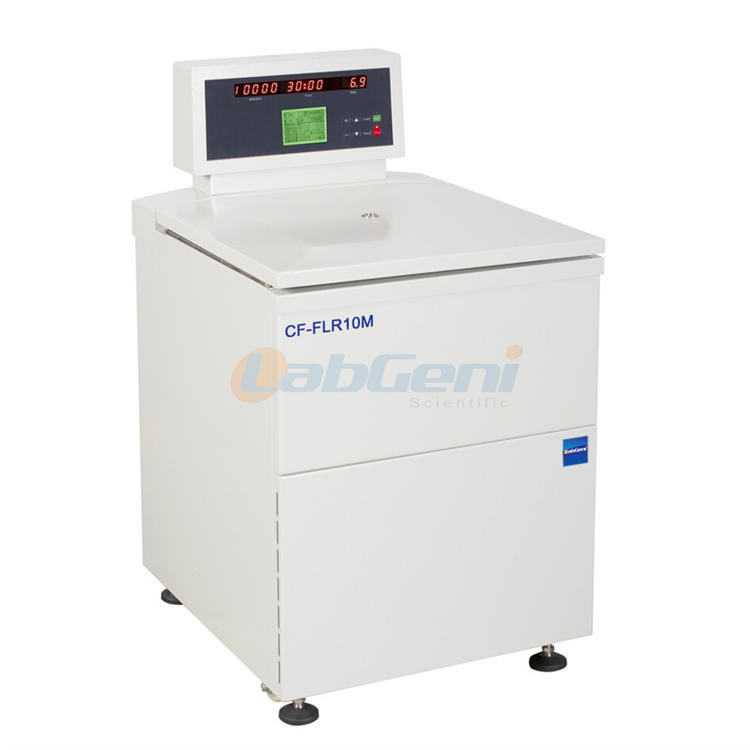

| Model | CF-FLR10M / CF-FLR10MA |
| Max Speed | 10000r/min |
| Max RCF | 18300* g |
| Max Capacity | 6000ml |
| Speed Accuracy | ±20r/min |
| Temperature Range | -20°C-+40°C |
| Temperature Accuracy | ±1°C |
| Time Range | 0-99H59min59s |
| Power Supply | AC 220V 50Hz 30A/35A Or AC110V 60Hz |
| Noise | ≤ 65dB |
| Dimension | 830*720*1250mm |
| Weight | 268 / 298kg |
Rotors:
| Rotor Type |
Number |
Capacity |
Max speed (r/min) |
Max RCF (×g) |
Dimension of tube (mm) |
|
Angle Rotor |
No.33 |
6×500ml |
8000 |
11680 |
Φ74×168 |
|
No.29 |
6×300ml |
10000 |
18300 |
Φ62×139 |
|
|
No.36 |
6x1000ml |
7200 |
12166 |
Φ97×175 |
|
|
Swing Rotor |
No.65 |
6×1000ml (round bucket) |
4200 |
5100 |
Φ100×175 |
|
No.65 |
6×1000ml (rectangle bucket) |
4200 |
5100 |
12pcs of 200ml blood bags |
|
|
No.66 |
4x1000ml |
4200 |
4430 |
Φ100×175 |
