Features:
1. Advanced Control System, Excellent separation
1) 10 kinds of Accel/Decel modes can be selected, or directly set up the time of Accel/Decel; User can set up the operate parameter by themselves, to achieve the best centrifugal result.
2) Short running function, convenient for diversified centrifugation.
3) Proprietary SCT speed control technical, high efficiency.
4) Proprietary SBT soft brake control technical, to avoid mix up and ensure get maximum specimen.
2. High Safety, Ease of use
1) Automatic Rotor identification system, no need to select rotor number.
2) Over temperature, over speed, door and unbalanced protection.
3) Steel body, Stainless steel chamber, Steel Protective sleeve.
4) Can take the rotor with aerosol-tight lid for use with hazardous samples.
3. Friendly Display, Humanity Operate
1)LCD, LED multiple-screen display, the Program, Accel/Decel modes, RPM/RCF, Time, Temperature are all easy to set up without any key combination.
2) Microprocessor control, operated data can be saved automatically, can start the instrument with RCF directly, can be store and use 40 kinds of self-defining operating modes directly by user-self.
4. Good parts, Reliable and longlasting
1) Brushless converter motor which has high torque, “SKF” supper speed bearing, Freon-free compressor from Europe.
2) Aerospace rubber for damping, super duralumin alloy from Aluminum Corporation of China Limited (CHALCO).
TECHNICAL PARAMETER

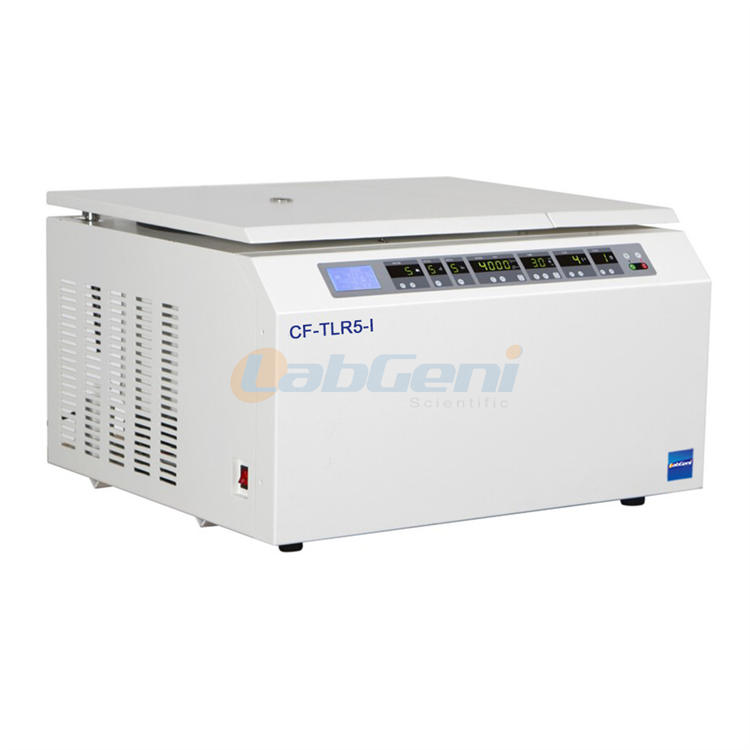

| Model | CF-TLR5-I |
| Max Speed | 5500r/min |
| Max Rcf | 5310×g |
| Max Capacity | 3000ml |
| Speed Accuracy | ±20r/min |
| Temperature Range | -20°C-+40°C |
| Temperature Accuracy | ±1°C |
| Time Range | 1s-99h59min59s |
| Power Supply | AC 220V 50Hz 18A |
| Noise | ≤60dB |
| Dimension | 800×700×400mm |
| Weight | 110kg |
Rotor
| Rotor Type | Number | Capacity | Max Speed (r/min) | Max RCF(×g) | Dimension of tube (mm) |
| Swing Rotor | No.1 | 4×50ml/100ML | 5500 r/min | 5310×g | Φ38×124 |
| No.2 | 4×500ml / 12×50ml / 8×100ml | 4000 r/min | 3580×g | Φ80×140 | |
| No.3 | 4×250ml / 8×50ml / 32×10ml | 4000 r/min | 3500×g | Φ64×113 | |
| No.4 | 72×5ml | 4000 r/min | 2830×g | Φ14×54 | |
| No.5 | 32×10ml/15ml | 4000 r/min | 2810×g | Φ16×85-118 | |
| No.6 | 16×10ml/15ml | 4000 r/min | 2810×g | Φ16×85-118 | |
| No.7 | 8×50ml | 4000 r/min | 2810×g | Φ28×105-115 | |
| No.8 | 48×5ml | 4000 r/min | 2800×g | Φ14×54 | |
| No.9 | 148×7ml | 4000 r/min | 3080×g | Φ13×78 | |
| No.10 | 120×5/7ml | 4000 r/min | 3080×g | Blood collection tube | |
| No.11 | 96×7ml | 4000 r/min | 2800×g | Φ13×78 | |
| No.12 | 80×5/7ml | 4000 r/min | 2800×g | Blood collection tube |
