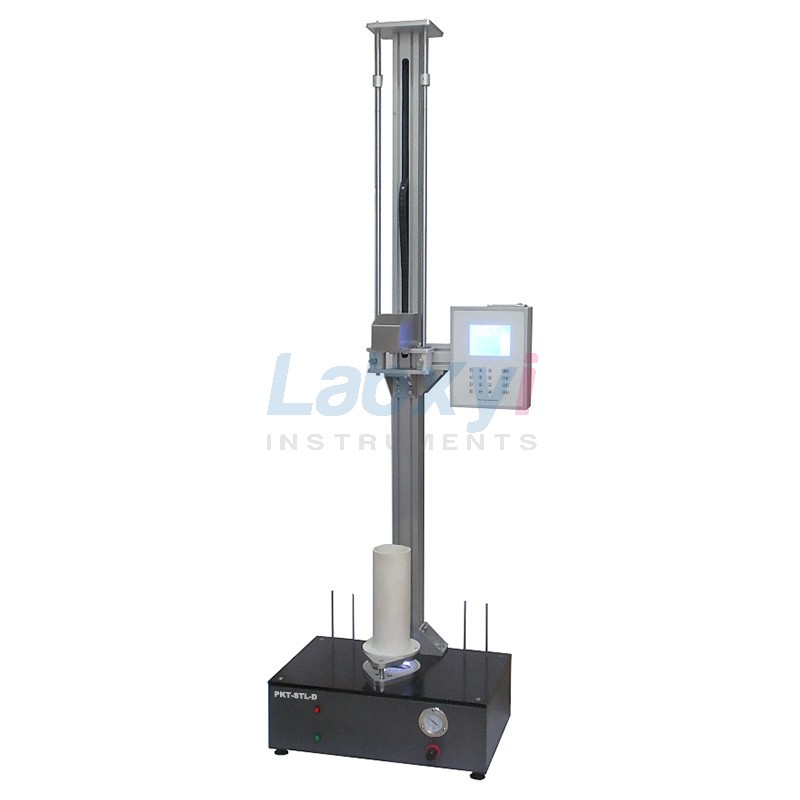

Product Description:
The machine is suitable for plastic film or sheet under the impact of free dart impact at the given height, measure the impact mass and energy when 50% plastic film or sheet specimen is damaged.
Features:
1. In line with national and international standards;
2. Revise error in national standards and international standards;
3. Innovative design ,easy to operate;
4. Test Method A, B double mode design;
5. Unique lighting observation light, convenient to test;
6. Test data processed by microcomputers;
7. Intelligent testing process, high efficiency;
8. Sample pneumatic lock, release, reduce the experimental error and the test time;
9. Without manual drawing mark in the test, data parameters system display by LCD;
10. Test data systems automatically identify, calculate, without human intervention;
11. Test automatically ends; results display in various units, output by micro printer;
Technical Specifications:
| Model |
PKT-STL-A |
|
Measuring Range |
Method A: 50～2000g (Method B: 300～2000g, optional) |
|
Measuring Accuracy |
0.1g (0.1J) |
|
Measuring Method |
Method A ,B (optional) |
|
Test Condition |
23 ℃ 50% RH (standard) |
|
Sample Size |
> 150mm × 150mm |
|
Power |
AC 220V ± 10% 50Hz |
|
Main machine |
Method A: 500 (L) mm × 450 (B) mm × 1320 (H) mm |
|
Net weight |
70kg |
|
Sample Clamping |
Pneumatic |
|
project |
Model |
|
|
PKT-STL-A |
PKT-STL-D |
|
|
Measuring range |
A method | A method、B method |
|
measurement accuracy |
50～2000g | |
|
Clamping means |
0.1g | |
|
Sample size |
pneumatic | |
|
Host size |
＞150mm×150mm | |
|
L × B × H |
670mm×400mm×1300mm | 670mm×400mm×2100mm |
|
net weight |
70Kg | 80Kg |
|
Standard configuration |
A method balance weight 1 set | A &B method balance weight 1 set each |
|
User-supplied |
|
|
Standard Compliant:
ASTM D1709、JIS K7124, GB 9639
Standard configuration:
1. Test host, a set of weights in method A;
2. The optional accessories, a set of weights in method B;
Note: The air source is equipped by user.
