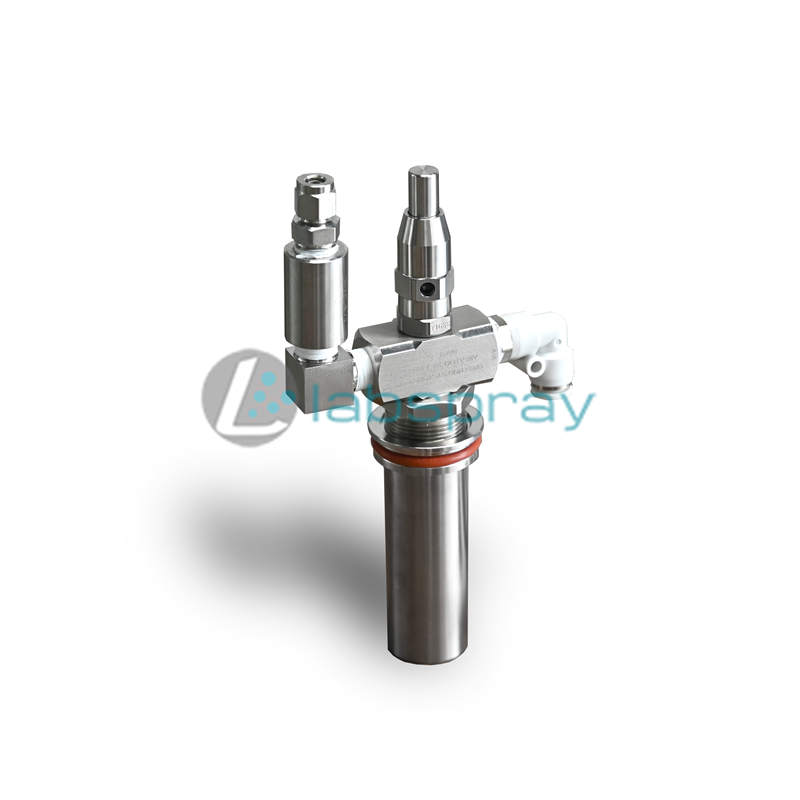

Atomization system: two-fluid atomizer and flow (imported parts)
Professional designers surgeon design, patent application has been submitted
Full body painting process
Mechanical parts grinding secret agents, only the pursuit of perfection
Meticulous & stable spray drying
spray nozzle imported from U.S.
Fan imported from Taiwan
Schneider & Siemens electric components
LCD touch display from Taiwan
Delicate design on appearance
Whole body spray painting process
Quick release design to let experiment in easy way
Siemens PLC
Fuzzy PID control, precise & humanity
Advanced Interface
Intelligent & humanity LCD interface
Visual touch operation, animation demo process flow
Inlet temperature, outlet temperature, frequency value, pricker frequency can be display and control
Data logging, analysis, alarm and overload protection
Real frequency converter fan
Frequency converter fan can be great help in particles forming, product yield and processing
We use real frequency wind turbine design, Delta brand inverter
Specifications:
| Max evaporator capacity | 1800ml/h |
| Peristaltic pump feed rate | 0 ~ 2000ml/h |
Inlet air temperature | 30 ~ 250°C ±1°C |
| Outlet air temperature | 30 ~ 120°C ±1°C |
| Dry air flow rate | 70m3/h（maximum 330m3/h）, pressure 686Pa |
| Blower | 0.2KW/220v, frequency converter fan |
| Electric heater | 3.2KW/220V，2520 special stainless steel |
| Temperature sensor | PT-100，intelligent PID control |
| Spray system | nozzles (U.S.), 0.7mm diameter, Two-fluid nozzle (inside mix) |
| Avg drying time | 1.0 ~ 1.5s |
| Automatic block discharging device | 0 ~ 60s adjustable |
| Control system | Siemens PLC, 7’’ color touch LCD display |
| Electrical standard | Schneider |
| Quick release | Temperature meter, air piping and power supply |
| Dimensions(H×W×D) | 910mm×575mm×423mm |
| Power supply | 220/230V, 50 ~ 60Hz |
| Rate power | 220V/3.6KW |
| Weight | 50kg |
