Features
1. Adopts high-voltage brushless DC motor control program, speed measurement precision, long life and maintenance-free; positive and reverse work setting can be carried out.
2. Using five-axis into one eccentric shaft driven, smooth running, long service life;
3. Microcomputer with large screen display temperature control , set, observe the clear and intuitive;
4. Timer function, time setting range for 0-9,999 minutes ( hour).
5. with power off memory function to prevent data loss due to power failure, crash.
6. With over temperature sound and light alarm, automatic power off function.
7. With self diagnosis function.
Technical index
| Model |

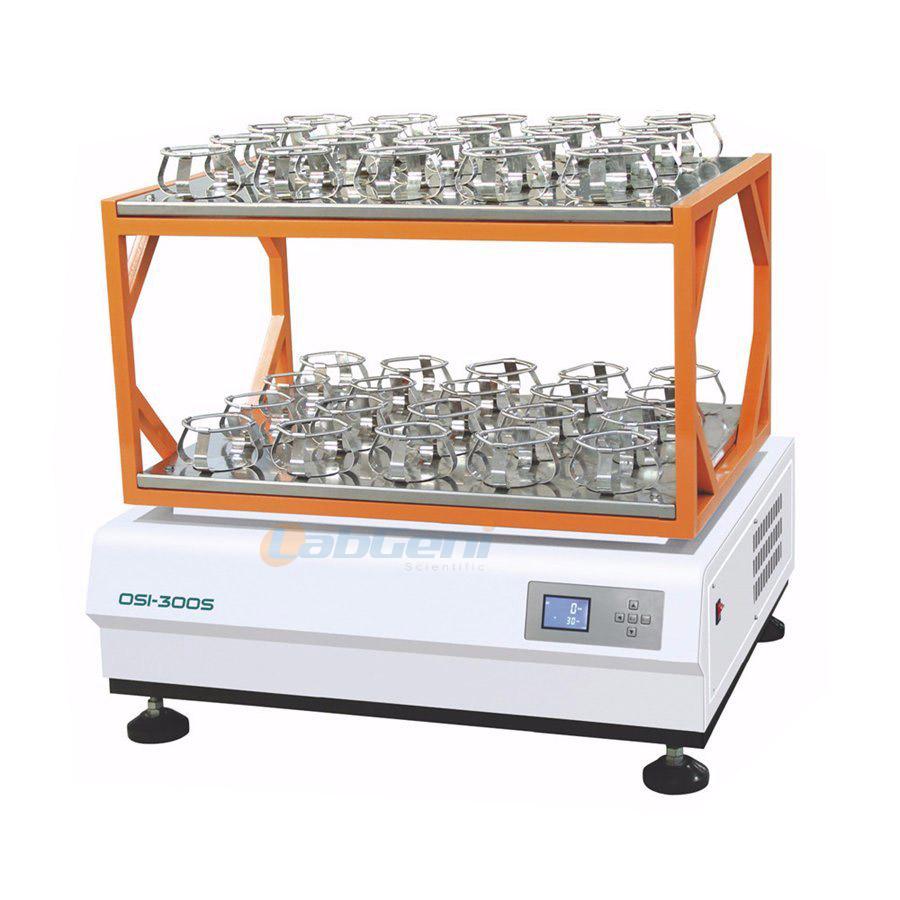

OSI-300（monolayer） |
OSI-300S（bilayer） |
| Oscillatory mode |
Cyclotron oscillation mode |
|
| Oscillation frequency |
30-300rpm |
|
| Oscillation frequency accuracy |
±1rpm |
|
| Paddle amplitude |
Ф35mm |
|
| The maximum capacity of the monolayer |
250ml×42or500ml×30or1000ml×20or2000ml×12 |
|
| Timing range |
0~9999minute（hour） |
|
| Shake plate size (mm) |
800×600 |
|
| power supply |
AC220±10﹪ 50～60Hz |
|
| Power (kw) |
0.3 |
|
| Overall dimensions (length × width × height) mm |
900×780×320 |
900×780×725 |
| Weight (kg) |
375 |
400 |
Note:
1, Performance parameter testing under no-load conditions: ambient temperature20 ° c, humidity 50%RH
2: Working ambient temperature: 5-25℃
