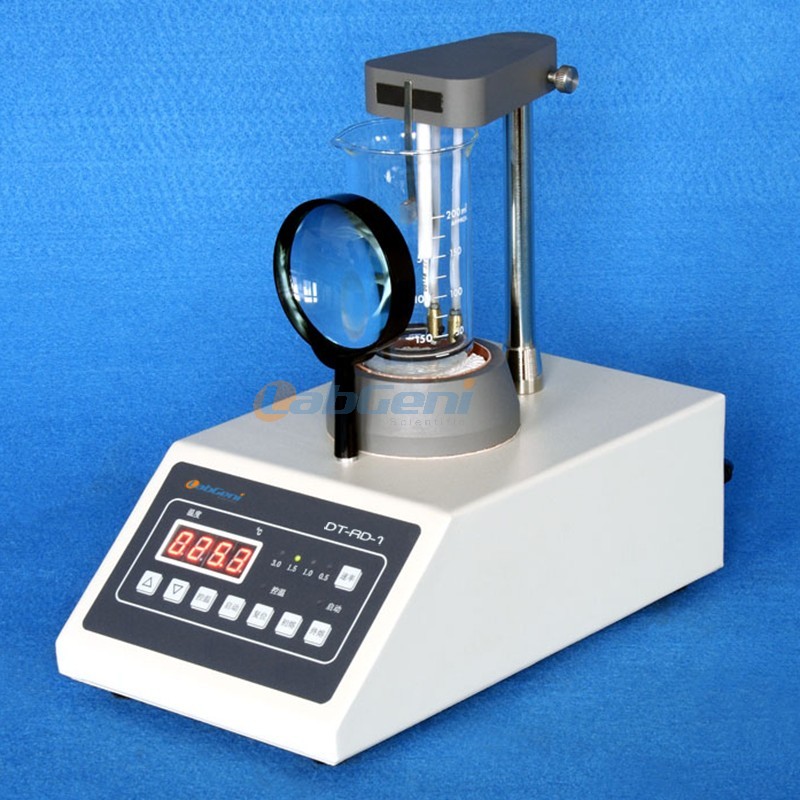

MELTING POINT TESTER

Melting point is the temperature of something turning to liquid from solid. Testing it is the main method to detect some characters such as purity etc.

DT-RD series are suitable for testing Melting points of drug, spice and dye etc.

 Melting Point Tester Applicable standard

• National standard( Chinese codex ) /2010
• Corporate standard(Thickness tester) Q/12XQ0185-2010

   Melting Point Tester Features:

• Testing the temperature with high-precision sensor. emending nonlinear error automatically.
• Using auto frequency-conversion control technology, with high accuracy in controlling temperature and little linear error in heating speed.
• Auto-memorizing and noting preset data and melt point, holding without power.
• Auto magnetism stirrer, with the bath oil even in temperature.
• Auto-preset temperature, auto-heat, display preset and real-time data alternately in time.
• Automation: auto-test, auto-diagnose, auto-alarm

Melting Point Tester Specifications:

• • Range of melting point (50~270)°C
  • Accuracy <200°C ±0.5°C
    ≥200°C ±1.0°C
  • Usage temperature (15~35)°C
  • Range of preset temperature (50~260)°C
  • Oil bath methyl silicone oil
  • Oil bath cup 250ML high beaker
  • Rate (0.5,1.0,1.5,3.0)°C/min
  • Accuracy of Rate ≤10%
  • Power of the heater 200W
  • Power 220V/50Hz/500W
  • Dimension (320*180*290)mm3
