Description:

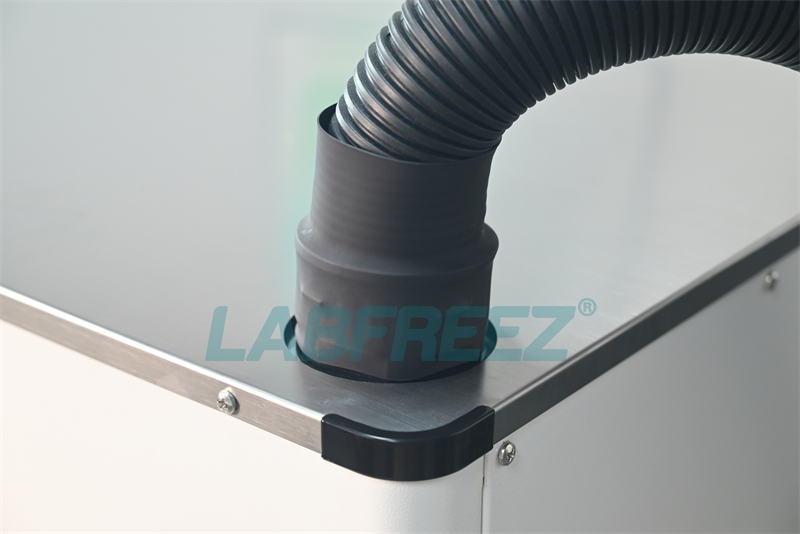

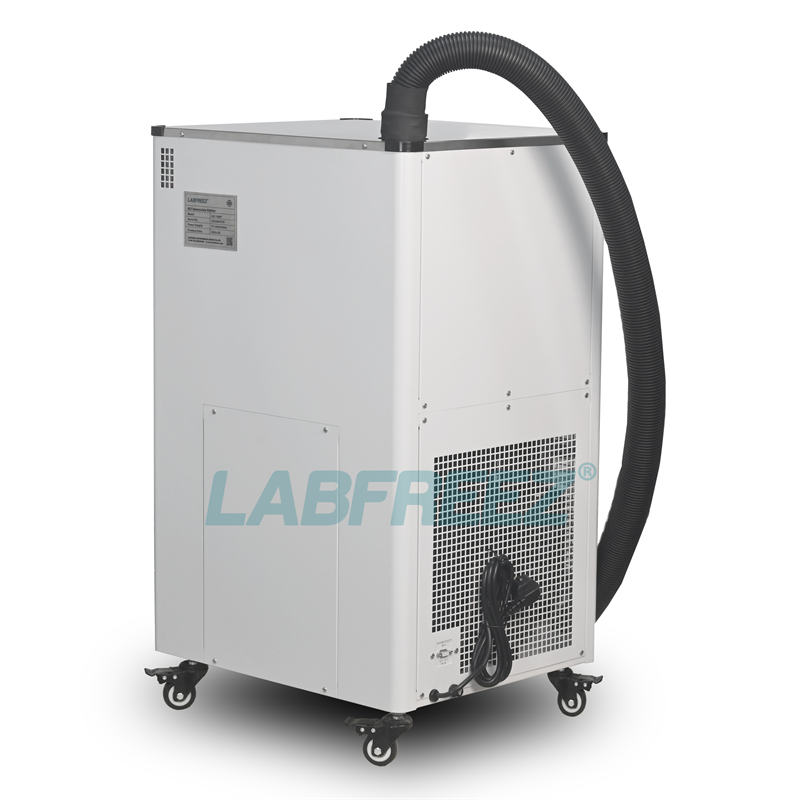

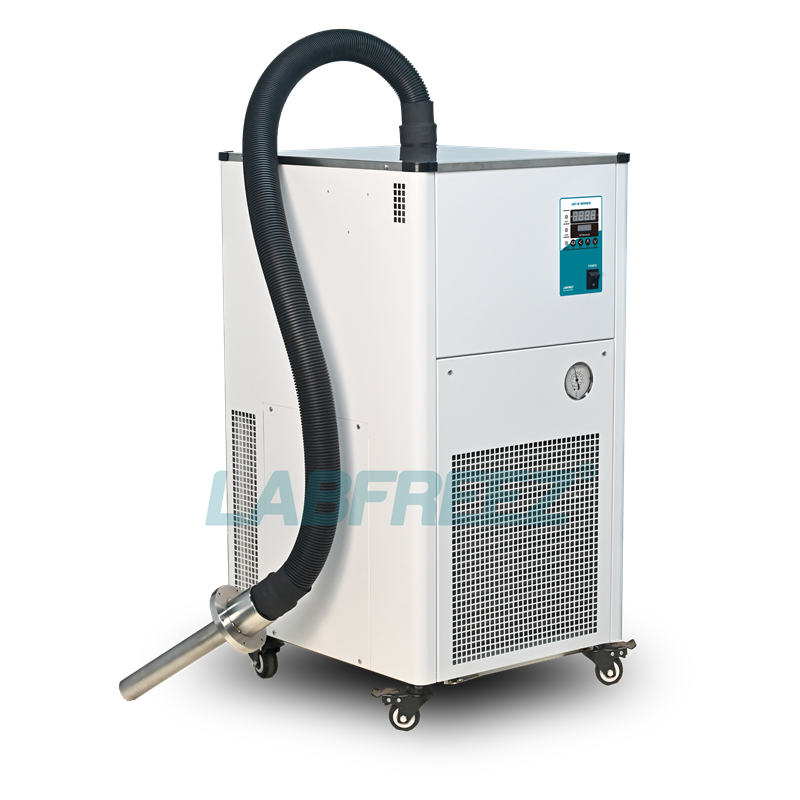

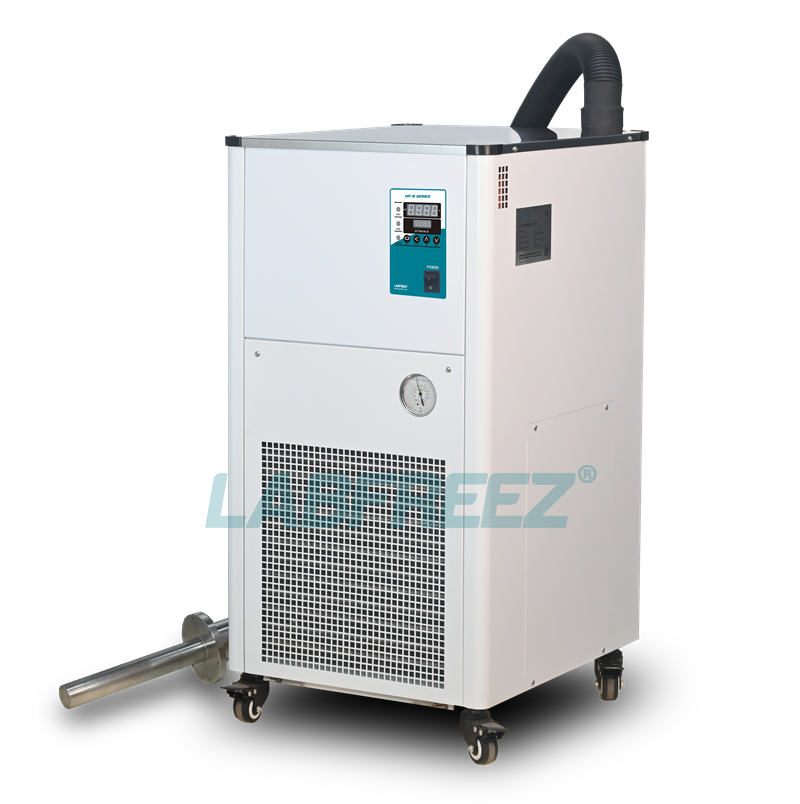

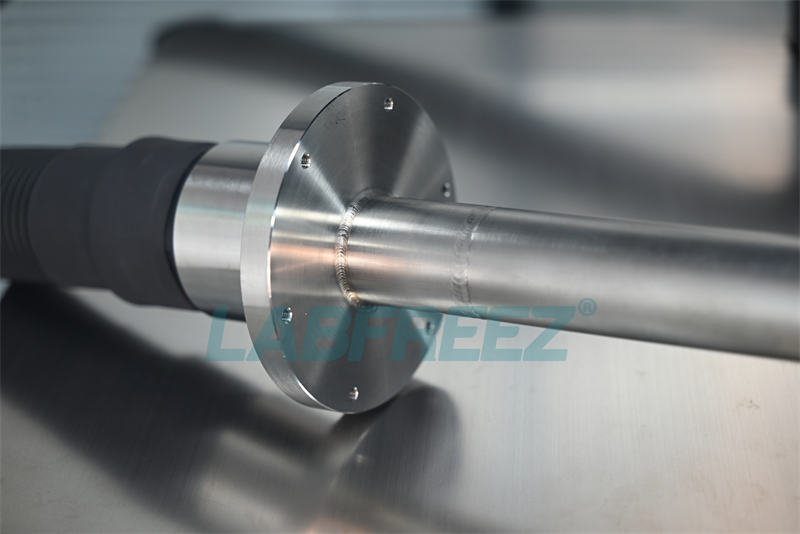

UIC-P Series ultra low temperature immersion chiller used single-stage compression refrigeration, high-effective mixed refrigerant ensure high-effective performance, cooling probe connected with host through hose which is lightweight and flexible. It can be used in Parylene vacuum coating, gas condensate trap , cryogenic liquid bath, or works with cold trap & liquid tank for ultra low temperature experiments. It can reach maximum temperature at -145°C, the cooling probe(coil evaporator) can be customized to meets widely requirements.
Main feature
- The lowest temperature can reach -145°C
- Compact design, fast and easy installation
- Fast cooling for uninterrupted ultra-low temperature applications
- Provides high-speed water vapor capture, effectively preventing oil and gas backflow
- Eliminates the cost, inconvenience and danger of liquid nitrogen
Application range
- LN replacement in cold traps Helium mass spectrometer leak detectors
- Cryogenic baffle of flange-mounted mechanical pump
- Ultra-low temperature cooling of small flow gas
- Condensation and trapping of water vapor and oil and gas in small space
- Cold focusing and thermal desorption of gas chromatograph
- Parylene coating vacuum coating
- Cooling of high vacuum system trap
Specifications:
| Model | Max. temp. | Cooling capacity @-100°C | Coil diameter (mm) | Coil length (mm) | Hose length (mm) | Total power (W) | Power supply (V/Hz) | Weight (kg) | Dimensions (mm) |
| UIC-90P | -90 | 20 W | 25 | 300 | 1400 | 660 | 220/50 | 57 | 300*550*580 |
| UIC-100P | -100 | 150 W | 60 | 380 | 1400 | 860 | 220/50 | 72 | 440*520*930 |
| UIC-120P | -120 | 100 W | 16 | 600 | 1400 | 910 | 220/50 | 78 | 440*520*980 |
| UIC-140P | -145 | 60 W | 40 | 300 | 1400 | 970 | 220/50 | 92 | 500*550*1200 |
