Characteristics:

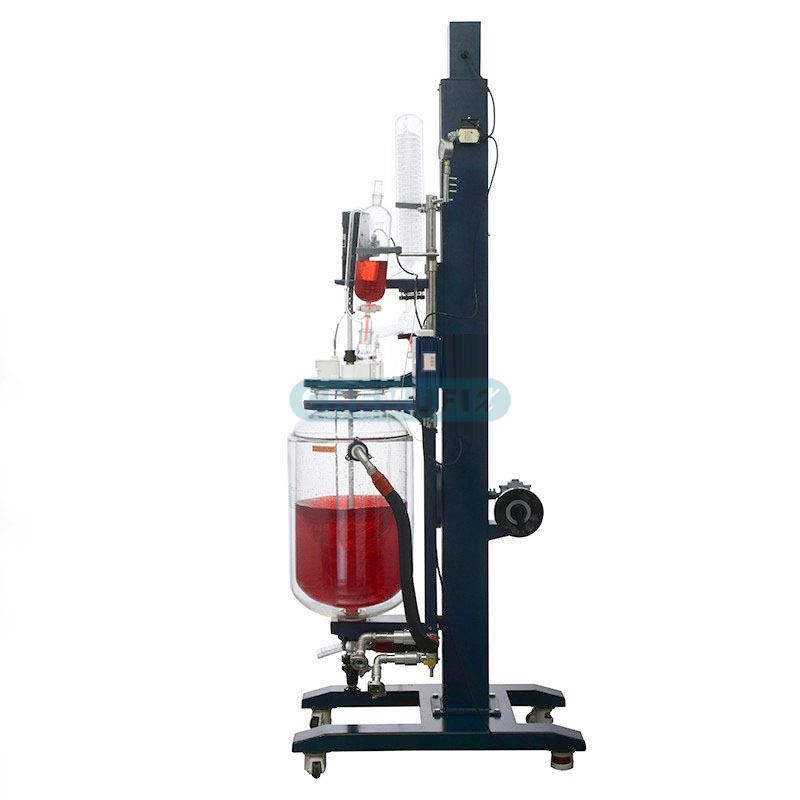

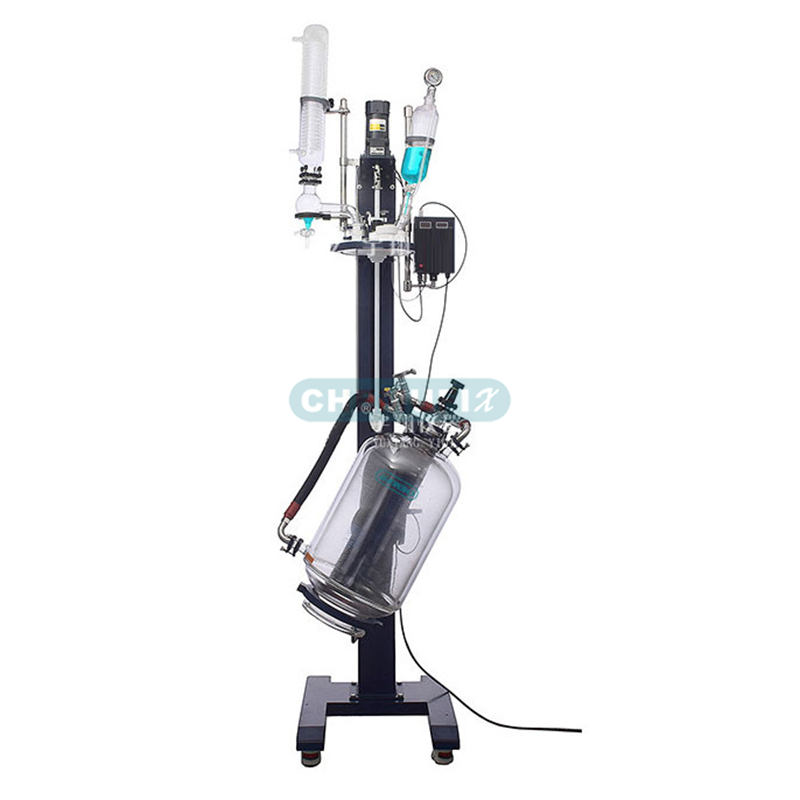

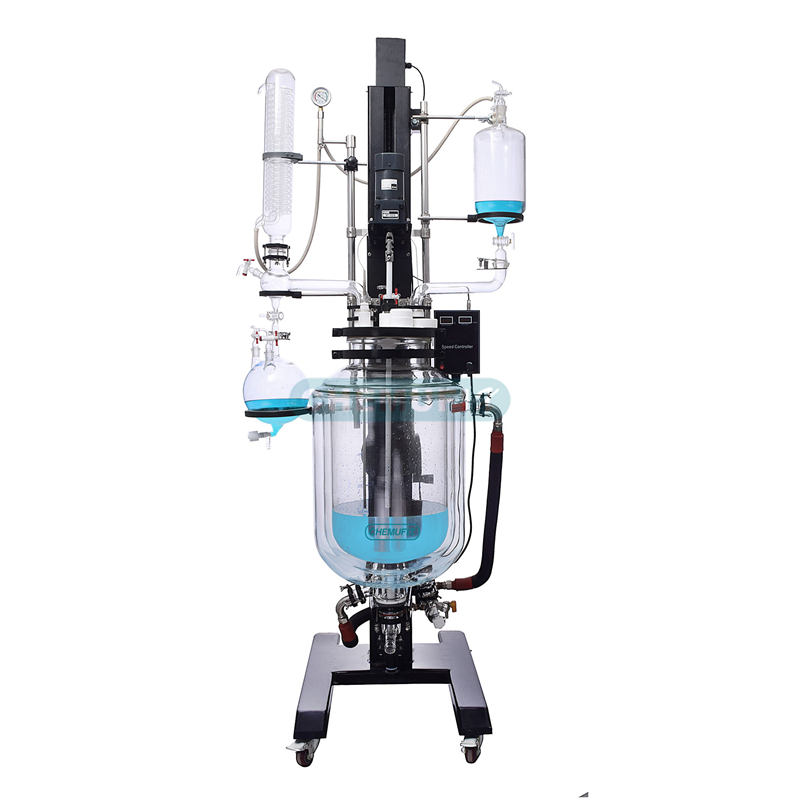

●Reaction Kettle can lift, fall and rotate 120 degree, it is convenient to use and clean;
●Use flange to seal glass interface, avoid using vaccum silicon to seal and open it difficultly;
●Connect it using all flange interface, it can with stand the positive pressure to 0.03Mpa.
Model description:
S: single layer glass reactor D: double layer jacket glass reactor
T: triple layer jacket glass reactor L: manual lift & rotary type glass reactor
Specifications:
| Model |
VGR-5SL |
VGR-10SL |
VGR-20SL |
VGR-30SL |
VGR-50SL |
|
VGR-5DL |
VGR-10DL |
VGR-20DL |
VGR-30DL |
VGR-50DL |
|
|
VGR-5TL |
VGR-10TL |
VGR-20TL |
VGR-30TL |
VGR-50TL |
|
|
Reactor kettle material |
High borosilicate glass |
||||
|
Temperature sensor material |
Stainless steel claded by fluorine, double anti-corrosion |
||||
|
Temperature range |
-80~200 |
||||
|
Speed Control method |
Frequency speed control |
||||
|
Affordable jacket temperature difference between inside and outside |
60°C (TL series, triple layer jacket reactor) |
||||
|
Inlet/putlet liquid circulation nozzle |
DN15 |
||||
|
Power supply |
220/50 |
||||
