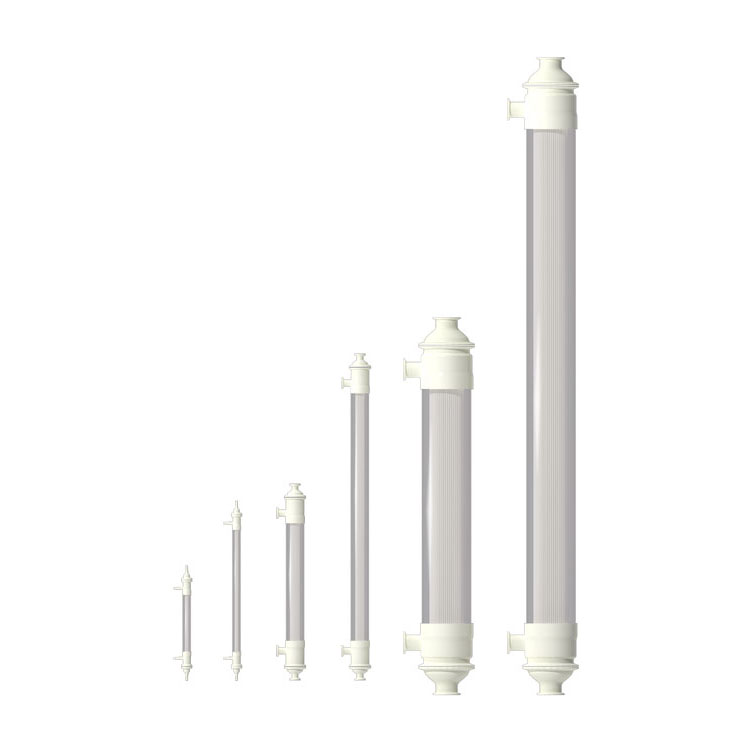

LABGNI has developed the BIOTFF-HF series of hollow fiber membrane columns specifically designed for perfusion cell culture. This product uses high performance modified polyethersulfone (mPES)material, making it perfectly suited for key cell culture processes such as perfusion medium exchange and continuous clarification harvesting. Its stable and reliable performance helps improve process efficiency and cell culture quality.
Product Advantages
- Low bioburden,non-cytotoxic
- High flow rate,high filtration capacity
- Tolerates conventional sterilization procedures,ensuring aseptic requirements of the process
- Excellent chemical compatibility
- 100%integrity testing,stable performance
Operating parameters
| Project | Parameter |
| Hollow fiber material | mPES |
| Shell material | PSU (polysulfone) |
| Potting glue | Polyurethane/Epoxy Resin |
| Net | polypropylene |
| Maximum operating pressure | 0.2MPa |
| Maximum operating temperature | 60℃ |
| Tolerable pH range | 1-14 |
Component parameters
| Module Specifications | BIOTFF-HF2 | BIOTFF-HF6 | BIOTFF-HF10 |
| Hollow Fiber Material | mPES | mPES | mPES |
| Pore Size/MWCO Specifications | 50kDa、0.2μm | 50kDa、0.2μm | 50kDa、0.2μm |
| Module Tube Diameter(mm) | 20 | 76 | 176 |
| Number of Membrane Filaments (units) | 75 | 1440 | 6720 |
| Effective Membrane Area(m²) | 0.13 | 2.5 | 11 |
| Length (cm) | 61 | 63 | 61 |
| Inner Diameter(mm) | 1.0 | 1.0 | 1.0 |
| Reactor Size(L) | 1-10 | 50-100 | 200-1000 |
Naming Rules
| ① | ② | ③ | ④ | ⑤ | ⑥ |
| Component Specifications | Length | Membrane Material | MWCO | Inner Diameter | Type |
| BIOTFF-HF2 BIOTFF-HF6 BIOTFF-HF10 | 061-61cm 063-63cm | E-PES | 20M-0.2μm 050-50kDa | 10-1.0mm | S-Steam Model G-Irradiated Model |
