FEATURES:
1. Microprocessor control, operated by touch panel, LED display, operated data can be saved automatically, RCF value can be set directly for working, easy to use.
2. Brushless converter motor which has high torque, high speed bearing from Europe, running smoothly and maintenance-free.
3. Steel body, stainless steel centrifugal chamber, good security and stability. Multistage damping system, low noise and slight vibration, green.
4. The freon-free compressor from Europe with high quality, stainless steel centrifugal chamber, Pre-cooling design for chamber makes cooling fast. high efficiency .
5. Equipped with Over-speed, over-temperature, door interlock, imbalance protection. The rotor can be disinfected at high temperature & high pressure, ensure safety.
6. Can be configured 5ml, 7ml, 10ml, 15ml, 30ml,50ml and several kinds of adapters, to meet the customer’s different needs.
TECHNICAL PARAMETER

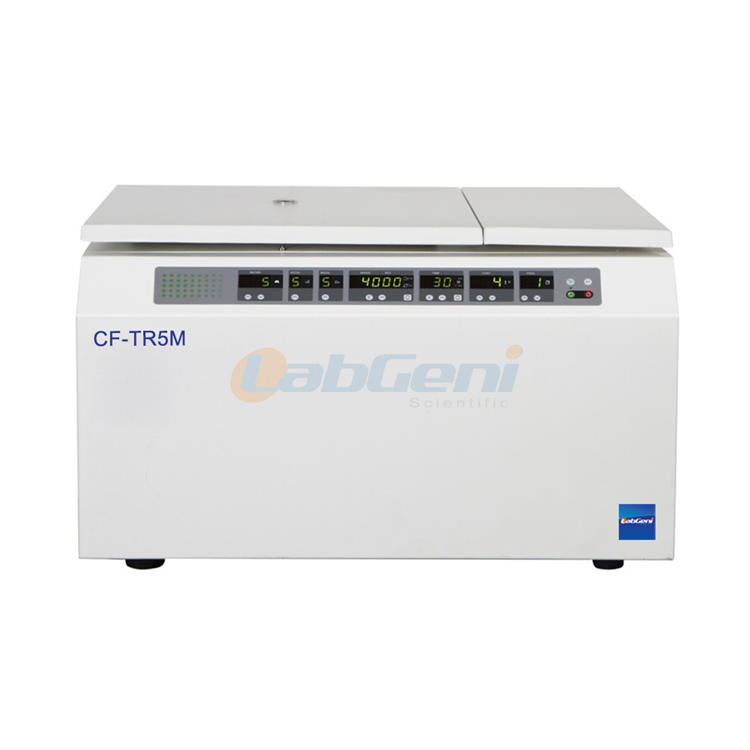

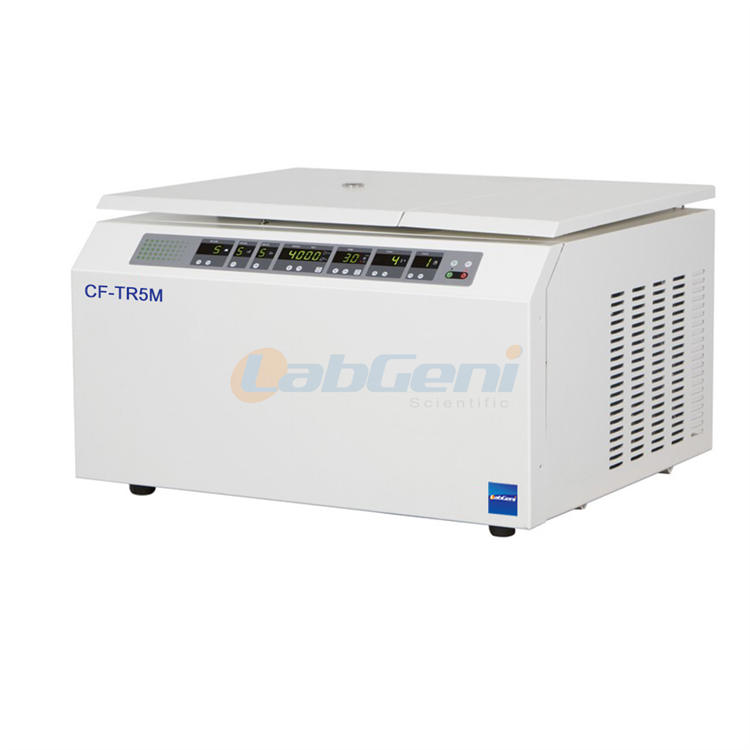

| Model | CF-TLR5M/ CF-TR5M |
| Max Speed | 5000r/min |
| Max RCF | 4390×g |
| Max Capacity | 1000ml |
| Speed Accuracy | ±50r/min |
| Temperature Range | -20°C to +40°C |
| Temperature Accuracy | ±1°C |
| Time Range | 0-99min |
| Power Supply | AC 220V 50Hz /AC110V 60Hz 18A |
| Noise | ≤65dB |
| Instrument Dimension | 640×680×380(mm) |
| Net Weight | 95kg |
ROTOR:
| Rotor Type | No. | Capacity | Max Speed (r/min) | Max RCF(×g) | Tube Dimension (mm) |
| Swing Rotor | No.63 | 4×50/100ml | 5000 | 4390 | Ø38×124 |
| No.70 | 4×250ml | 4000 | 3500 | Ø64×113 | |
| Adaptor:8×50ml | |||||
| Adaptor:32×10ml | |||||
| No.77 | 32×10/15ml | 4000 | 2810 | Ø16×85-118 | |
| No.81 | 8×50/100ml | 4000 | 2810 | Ø38×124 | |
| No.82 | 48/40×5ml | 4000 | 2800 | Ø14×54 | |
| No.85 | 96×7ml | 4000 | 2800 | Immuno Tubes | |
| No.85 | 80×7ml | 4000 | 2800 | Vacuum Blood Collection Tube |
