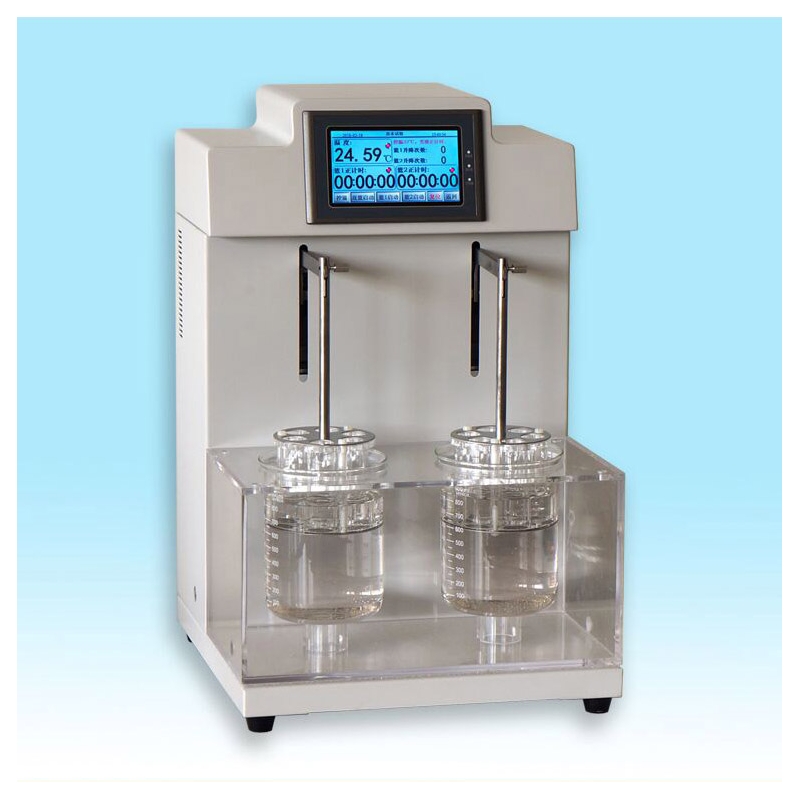

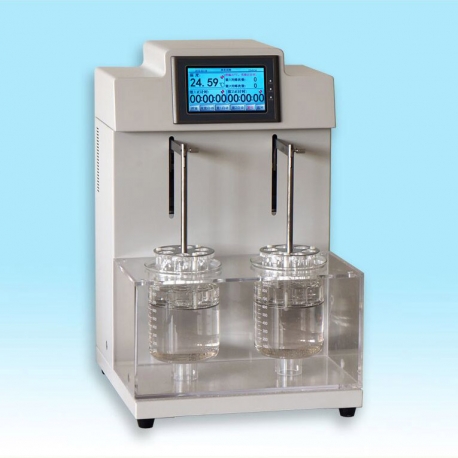

Intelligent disintegrator

DBJ-2D intelligent disintegration instrument is a high-precision intelligent drug testing instrument developed and produced according to the Chinese Pharmacopoeia's 2015 edition of the disintegration time limit for tablets, capsules and pills. Its main technical indicators are in line with USP, BP, and JP regulations on the detection of disintegration time limits.

working environment:

• Safety performance: In accordance with the provisions of China's pharmaceutical industry standards related to the "disintegration instrument"
• Working power supply: AC 220V±10% 50Hz ≤800W
• Environmental conditions: room temperature 5 ~ 35 ° C humidity <80%

Main Specifications:

• Timing range: arbitrarily set within 24 hours, display resolution, hour: minute: second
• Temperature control range: 5 ° C ~ 50 ° C, display resolution is 0.01 ° C
• Temperature control accuracy: ≤±0.3°C
• Basket lifting frequency: 30~32 times/min.
• The real-time display function of the number of lifting and lowering of the basket, the display resolution is 1 time. Accuracy rate is 100%
• Basket lifting amplitude: 55mm
• Lifting amplitude accuracy: ≤±0.5mm
• Screen bottom distance: 25mm
• Screen hole diameter: 2mm, 0.425mm (1mm optional)
• Dimensions: length 340mm, width 350mm, height 550mm

This machine features:

• DBJ-2D adopts high-resolution color touch screen, and the human-machine interface is friendly. Users can enjoy intelligent and interactive operation according to the screen prompts.
• The instrument is a two-basket working position. Each basket can be disintegrated independently, or it can be disintegrated in a double basket.
• The instrument provides two working modes: basic test and program control test; the basic test default temperature is 37 °C, the time is positive timing, the time can be paused, and the time can be connected to facilitate the research test. The program-controlled test can preset the temperature and time limit arbitrarily, and save it automatically. The time is countdown, which is convenient for routine repeatability test.
• The real-time basket lift display function provides users with a reliable method to monitor the lifting frequency of the basket.
• At the end of the test, the basket is automatically parked at the highest position for easy loading of the basket and beaker.
• The instrument provides timed shutdown and timed automatic warm-up function.
• The instrument provides intelligent temperature correction function, which allows users to easily and easily perform temperature correction through interactive operation.
• The instrument has temperature abnormality, temperature over limit alarm and secondary overheating automatic protection function.
• The instrument provides real-time display of “year, month, day, hour, minute, second” function.
