Flash Point Tester

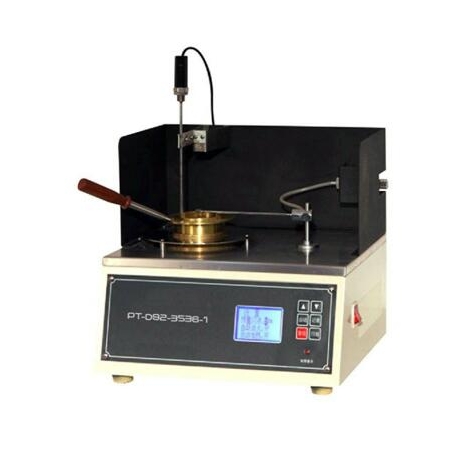

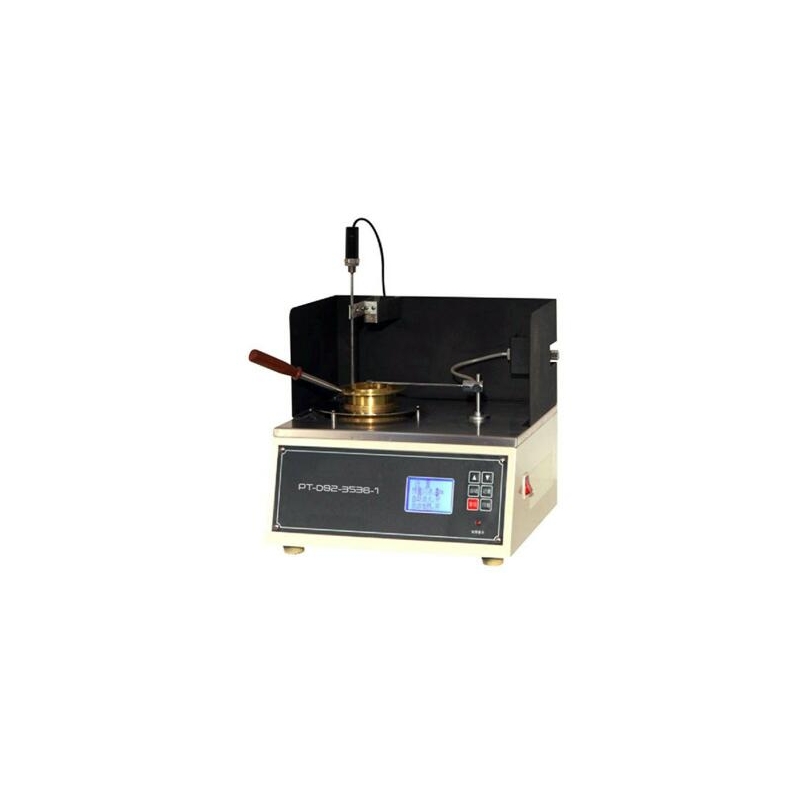

Automatic Cleveland Open Cup Flash / Fire Point Tester, ASTM D92 Petroleum Oil

More info

Purpose
PT-D92-8C/109 is designed and made as per the National Standard GB/T3536, ISO 2592, ASTM 92 “Test Methods for Flash Point and Fire Point of Petroleum Products (Cleveland Open Cup Methods), and T0651 “Asphalt Flash Point and Fire Point Test (Cleveland Open Cup Methods)” in the Industry Standard JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering. It is used to determine flash point of petroleum products and bituminous materials, excepting fuel oil and materials having a flash point of lower than 79 °C.

Features:

  1. Color LCD large screen display, full English interactive interface, no logo keyboard, Prompt menu guiding type input to the parameters as the pre-value of temperature, the sample label, atmospheric pressure and the date of the test;
  2. Simulation trace showing the curve of heating up and test time, with English software prompt modification function with the test date, the test time and other parameters prompts;
  3. Equipped with standard RS-323, 485 computer interface, lower computer storing 100 sets of historical data, can be connected to computer for mass storage data and can be stored for a long time, transmission of data, the host computer can modify the lower computer parameters.
  4. Automatic correction of the influence of atmospheric pressure on the test and calculate the correction value;
  5. Differential detection, system deviation automatic correction;
  6. Open the lid, ignition, detection, print data is done automatically. Electronic ignition, forced air cooling;
  7. Can detect light ignition (PT-D92-109).

Technical parameters


Model

PT-D92-8C

PT-D92-109

Measuring range

Room temperature~400°C

Room temperature~450°C

Resolution

0.1°C

0.1°C

Repeatability

≤4°C

≤4°C

Reproducibility

≤±6°C

≤±6°C

Lift way

Automatic tilt

Automatic tilt

Display mode

Color screen

Color screen

Detection mode

Automatic

Automatic

Data output

Print

Print

Ignition mode

Manual

Automatic

Connection interface

None

RS232

Ignition point

None

Yes

Experimental cup number

Single cup

Single cup

Operating environment

10-50°C

10-50°C

Relative humidity

85%

85%

Power supply voltage

AC220V

AC220V

Power frequency

50Hz±5%

50Hz±5%

Power rate

≤300W

≤300W

Standard Accessories


No.

Item

Unit

Qty

Remarks

1

Oil cup

Piece

1



2

Power supply wire(250V 6A)

Piece

1



3

Printer paper

Roll

1



4

Igniter

Piece

1
