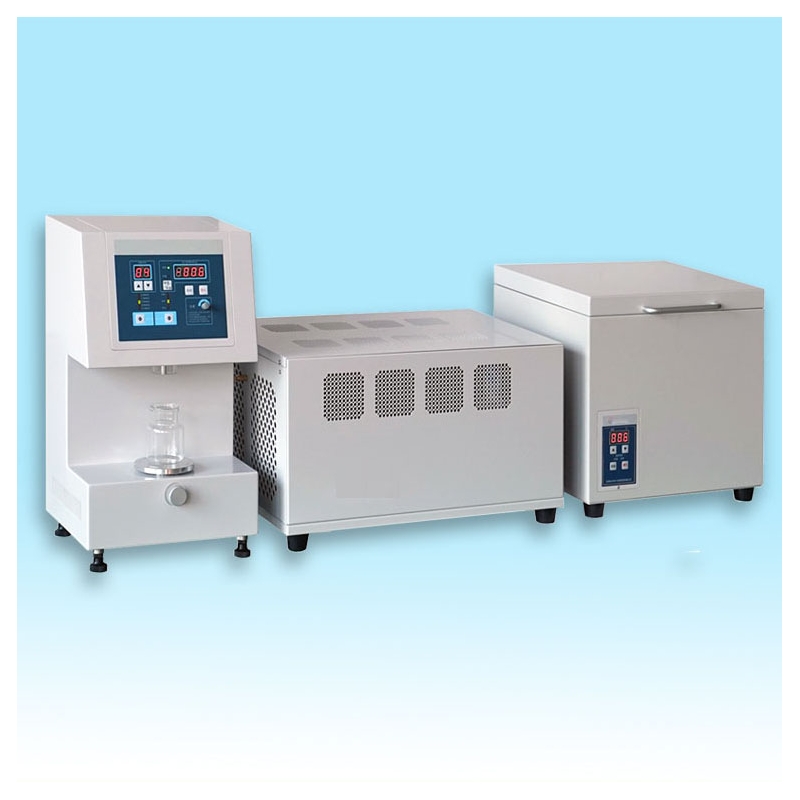

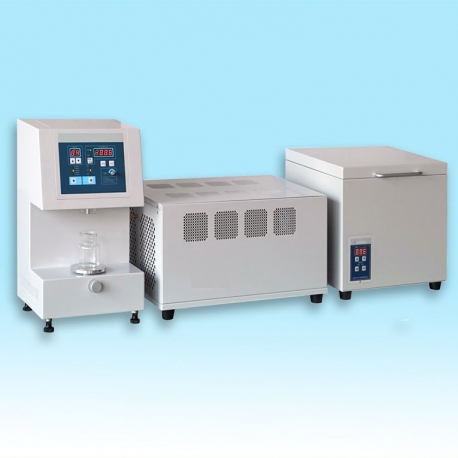

Freezing force meter

System composition:

◎DJS-2Freezing force meter host 1

◎HW-3A precision constant temperature cold water tank 1

●ZL-3 refrigerator 1

●16 sets of standard frozen bottles

◎1 set of frozen screen bracket

◎ 2 sets of insulated water pipe connecting pipe

Applicable standards:

◆Chinese Pharmacopoeia 2015 Edition

◆ National Standard "Food Additive Gelatin" GB6783-2013

◆ National standard "medicine gelatin hard capsule" GB13731

◆Light industry standard "edible gelatin" QB/T4087-2010

◆ in line with current Chinese GMP regulations

System structure and features:

The DJS-2 chassis adopts a new structure of the new chassis, the horizontal adjustment function is added to the ground, and the new 3-stage damping structure eliminates the measurement error caused by the mechanical transmission.

High-brightness digital tube display, simple, practical, cost-effective models.

Use high-speed microprocessors to ensure your measurements are faster, more accurate, and more reliable.

Provide 5 sampling speeds; 0.1mm/s 0.2mm/s 0.5mm/s 1mm/s 2mm/s

Provides 3 sampling modes; single-step measurement mode, cyclic measurement mode and hold measurement mode.

Provide 2 kinds of sampling result selection; final value peak

The sampling depth can be preset.

Automatic error overrun protection.

Sensor over-range protection.

The user can correct the measurement accuracy by himself. (with standard weight)

The user can correct the depth travel error by himself. (using standard dial gauge)

System set of 3 sets (Freezing force meter host, precision constant temperature cold water tank (including monitoring), refrigerator)

Automatic fault diagnosis alarm, automatic overrange protection, automatic error correction prompt.

Main Specifications:

◇High-speed measurement time computer dynamic monitoring probe presses into the rubber surface depth error

◇ Test range: 5-1000g

◇Test accuracy: ≤±0.5%

◇ Reading resolution: 1g

◇ Repeat measurement error: ≤±3g

◇ Effective stroke: 1-75mm

◇ Measuring stroke error: ≤±0.1mm

◇Measured value: in Bioom g

◇ Temperature control accuracy: ≤10oC±0.1oC

◇ Temperature control range: 5oC -65oC

◇ Cooling time: 20oC→10oC < 20min

◇Refrigerant: Environmentally friendly R406a

◇Freezing force meter model: DJS-2

◇ Dimensions: length * width * height (mm) 285 * 270 * 500

◇ Box size: length 440mm*寛 390mm* height 560mm

◇ Weight: 14.5Kg

Mane weight: 17Kg

◇Frozen bottle: Capacity=150ml Internal diameter=59mm Height=85mm

◇Precision constant temperature monitoring cold water tank: HW-3A (high quality thick stainless steel inner tank, long service life)

◇ Dimensions: length * width * height (mm) 400 * 430 * 380

◇ Box size: length 585mm*寛 490mm* height 455mm

◇ Weight: 22Kg

Mane weight: 25Kg

◇Refrigerator model: ZL-3 (high quality thick stainless steel liner, long service life)

◇ Dimensions: length * width * height (mm) 540 * 400 * 310

◇ Box size: length 700mm*寛 500mm* height 375mm

◇ Weight: 27Kg

Mane weight: 30Kg
