Inert Loop Spray Dryer, solution recovery for organic solvent

DESCRIPTION

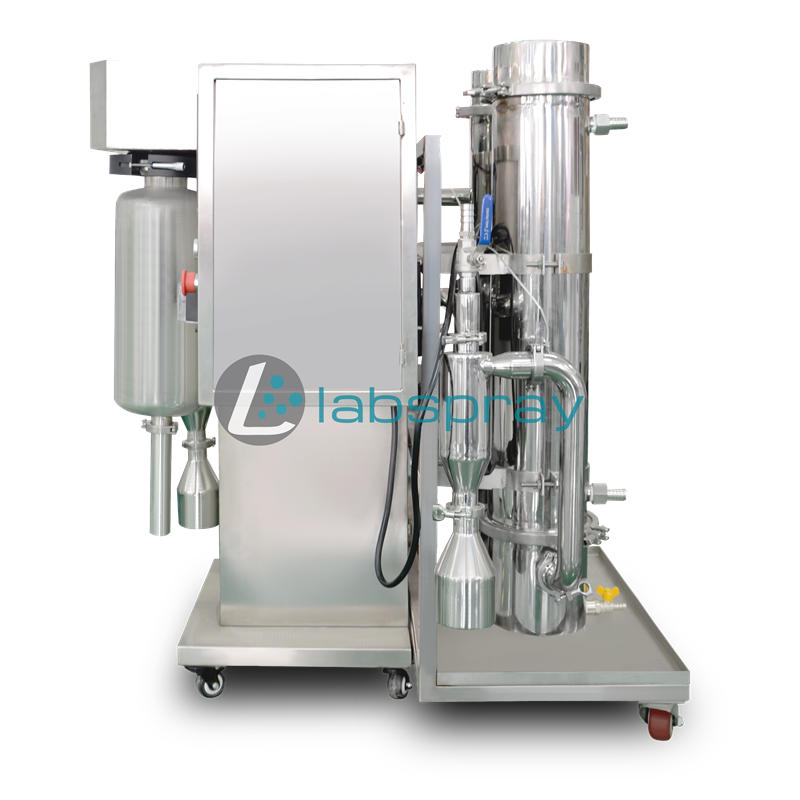

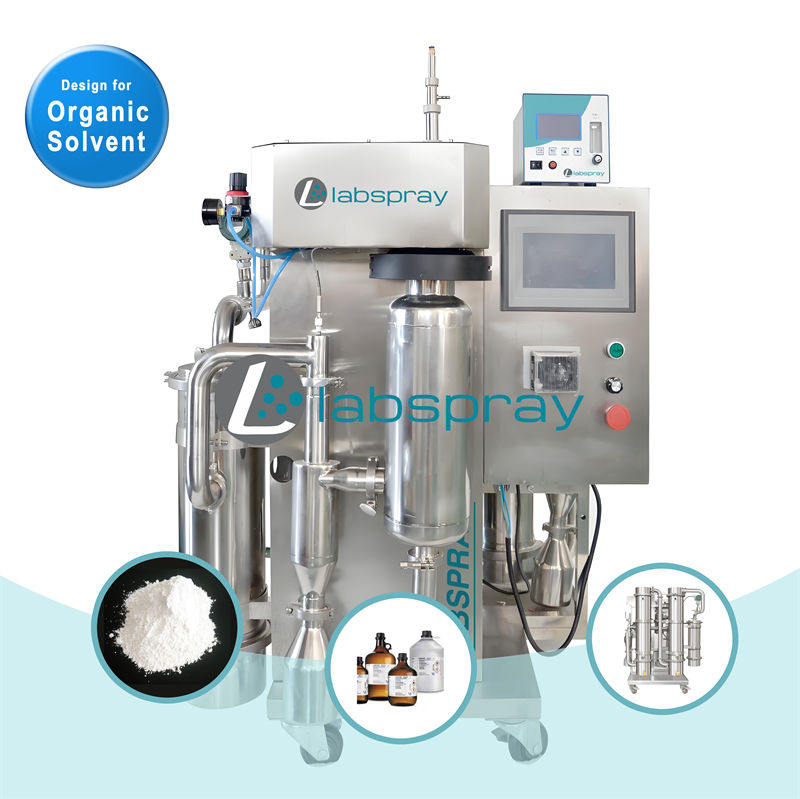

LABSPRAY MINI LOOP is specially designed for organic solvents and uses an inert gas medium formed by circulating nitrogen to replace the usual air medium for spray drying. In addition to recovering products, organic solvents can also be recovered.

This closed-loop spray system is specially designed for the low flash point or slightly toxic, flammable and explosive characteristics of organic solvents. It is an ideal closed-loop dryer for laboratory small-scale to pilot-scale tests. , The drying of toxic materials and oxidizable materials provides a new and reliable method.

APPLICATIONS

With inert loop system, solvent recovery device and oxygen monitor system, it is standard spray dryer suitable for both water-based liquid and organic solvent


	Touch screen control One-button start-up, setting spray process parameters, process running can be clearly displayed on touch screen		Spray drying tower Atomized material is fully contacted with hot gas to evaporate solvent in material & dry into small powder.
	Peristaltic pump Bidirectional & equal flow delivery capability, no damage is no liquid empty operation, can generate vacuum of 98%: can easily transport solid, liquid or gas-liquid mixed fluids, allowing fluids Contained solids up to 40% of inner diameter of tubular: do not contact with anything other than hose.		Spray nozzle Concentric spray head. Make sure that there is no eccentricity to any side of bottle wall; spray head can move up and down after installation, adjust atomization position so can improve spray drying effect;
	Oxygen analyzer Detect oxygen content in pipeline and display in real time. When oxygen content is higher than set value, a corresponding signal will be sent to stop part functions such as heating and feeding.		Two-stage condensate tank Used in conjunction with a low temperature constant temperature tank, low temperature can liquefy high temperature solvent vapor flowing in tank, which is convenient for solvent recovery.
	Switch group One-button start switch, emergency stop, inverter fan control panel, which can perform functions such as start, stop and speed regulation.		Dust filtration device Small amount of solid small particles not separated are separated from the high temperature solvent vapor through a filter device
	Pressure reducing valve Adjust inlet pressure of gas required for atomization.		Heating equipment Used to heat gas in pipeline, double-layer design, higher heating efficiency and energy saving.
	Explosion-proof digital pressure gauge Real-time display of current pressure of pipeline, monitoring of system running status, when set value is exceeded, a corresponding signal will be sent, and parts functions will be stopped like heating and feeding.		Safety valve (top), Exhaust/Intake (bottom) Safety valve: When pressure rises sharply and exceeds set value, it can realize function of rapid pressure relief. Exhaust/air inlet: function of air intake into the system or the system exhaust air can be realized as required

COMPONENTS OF LABSPRAY MINI LOOP

TECHNIACL SPECIFICATIONS

MODEL	LABSPRAY MINI LOOP
Inlet air temperature	30~300°C (±0.5°C)
Outlet air temperature	30~200°C (±0.5°C)
Control way	Intelligent PLC control Real time PID temperature control
Drying time	0.8 ~ 1 second
Feed rate	50 ~ 2000 ml/h
Fan motor mode	Suction
Solvent recovery	Part of solvent can be recovery
Atomization structure	two-fluid
Atomization nozzle	0.5/0.7/0.75/1.0/1.5/2.0 mm can be chosen
Inert loop system	N2 closed loop system
Bag filter	Included
Material	SS304
Overall size	7755851305 mm (WDH)
Net Weight	210 kg
Total Power	3.5 kw
Voltage/frequency	AC 220V/50Hz

OPTIONAL LIST

ITEM NO.	ITEM NAME	PICTURE
SDC001	Overhead Stirrer/ Magnetic Stirrer
SDC002	Analytical balance
SDC003	Special tools box
SDC004	Add wireless control module to the device
SDC005	Remote pad control system
SDC006	Computer and software
SDC007	1.2mm nozzle
SDC008	0.4mm nozzle
