Chest Type Deep Freezer Control System
- Microprocessor-based temperature controller, temperature from -10°C to -25°C/-30°C/-40°C,can be set freely, Digital temperature display.
- Delayed start and safe stop interval between restart and being terminated
- Audible/visual alarm for high or low temperature alarm, system failure alarm.
- Power supply: 220V /50Hz 1 phase, can be changed as 220V 60HZ or 110V 50/60HZ

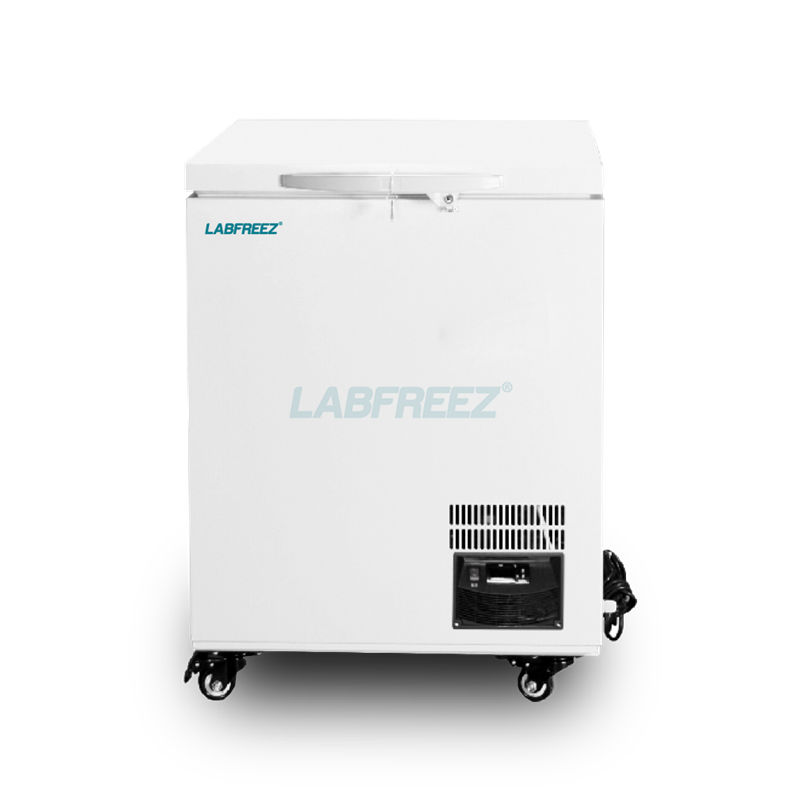

Chest Type Deep Freezer Structure Design
- Chest type, Outer body is painted steel board, inside is aluminum panel.
- Top door with key lock.
- One unit basket made of steel wire are convenient to store articles
- Four units Casters for easy handing
Refrigeration System
- Quick freezing switch to make fast cooling.
- Famous good quality compressor and Germany EBM fan motor
- Refrigerant as R134a, CFC free
- Certificate: CE, ISO9001, ISO14001, ISO13485
Specifications
Model | MR-HV25-100 | MR-HV25-200 | MR-HV25-300 | MR-HV25-322 | MR-HV25-525 |
Capacity | 100 Liters | 203 Liters | 322 Liters | 322 Liters | 525 Liters |
Temperature range | -10~-25°C | -10~-25°C | -10~-25°C | -10~-25°C | -10~-25°C |
External size (W*D*H) mm | 570×580×880 | 865×660×875 | 1120×745×875 | 1295×697×967 | 1843×689×848 |
Internal size (W*D*H) mm | 450×375×705 | 735×440×685 | 970×490×660 | 1080×530×625 | 1701×508×700 |
External material | Paint Steel | Paint Steel | Paint Steel | Paint Steel | Paint Steel |
Internal material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
Power | 87W | 100W | 120W | 135W | 270W |
Weight (N.t / G.t) | 30Kg/40kg | 50kg/60kg | 65kg/75kg | 80kg/90kg | 110kg/120kg |
