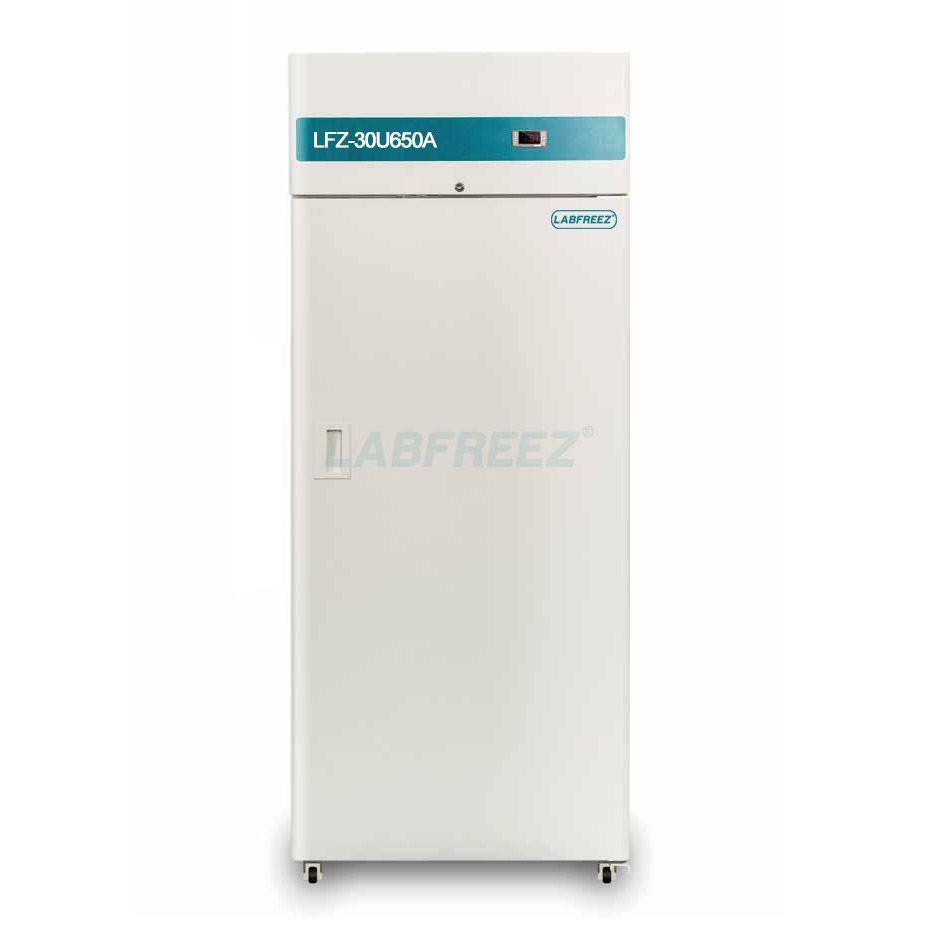

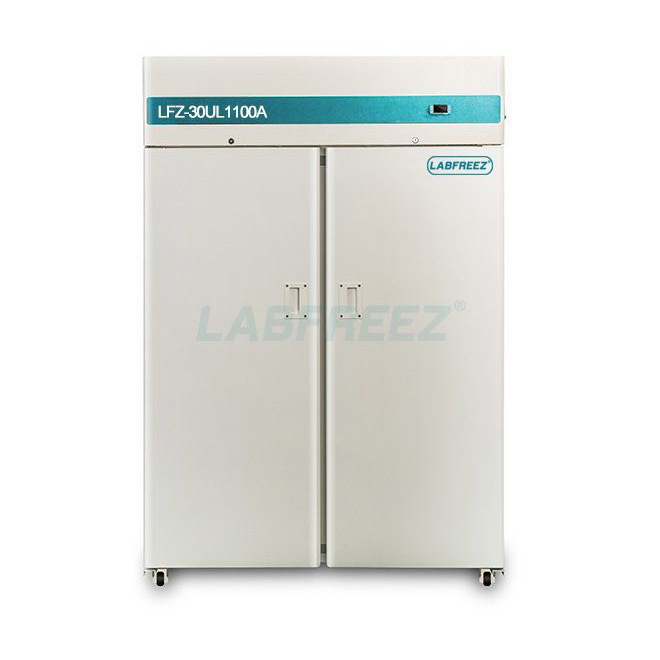

LFZ-30UA Series Minus 30°C Upright Laboratory Auto Defrost Freezer, air-cooled

SKU: LFZ-30UA Series Category:
Request a Quote

Auto defrost freezer, Forced-Air Circulation Suitable for hospitals,blood banks, epidemic prevention, animal husbandry areas,pharmaceutical companies and research institutes.Designed to store pharmaceuticals, medicine, vaccines, biological materials, testing reagents and laboratory materials.

Features of Auto defrost freezer

Temperature Control

  • Microprocessor control, Large LED display inner temperatureclearly, and with easy viewing.
  • Theinnertemperature can be adjustable at the range of -10°C~-30’C, with an increment of o.1°C.
  • Multiple sensors to display or control the temperature.
  • Lock and password for protection to prevent arbitrary adjustmentof operating parameters.

Safety Control

  • Malfunction alarms: high temperature alarm, low temperaturealarm, Sensor failure.
  • Over temperature alarm system, set the alarm temperature as
  • Three alarming methods: buzzer alarming, digital flashing alarming and Remote alarm;Protection function: power-on delay, timebetween stops.
  • 7 days Chart temperature recorder monitor system (Optional).

Ergonomic Design

  • Safety door lock, preventing unauthorized access;Wide voltage design from 192V to 242V.
  • Pressure-balanced port design, easy to open the door.
  • Adjustable shelves design.
  • Heavy type caster and locking adjustable screw, easy to move and fix.

Refrigeration System

  • Highly efficient famous brand hermetically sealed CFC free compressor andfan;70mm thick foam insulation, better insulation effect, help to maintain temperature stability inside the freezer, Forced-Air Circulation for large airflow with special air ducts to guarantee inner temperature consistency.
  • Monoblock refrigeration units, energy-efficient and easy for maintanance.
  • HCFC refrigerant
ModelLFZ-30U650ALFZ-30U1100ALFZ-30U1400A
Technical DataCabinet TypeUpright
Climate ClassN
Cooling TypeForced air cooling
Defrost ModeAuto
RefrigerantHC,R290
PerformanceCooling performance(°C)-25
Temperature Range(°C)-10~-30
Power Supply(V/HZ)220/50
Power(W)460650700
Power Consumption(kwh/24h)6.87.28.5
ControlControllerMicroprocessor (Dixell)
DisplayLED
MaterialInteriorGalvanized steel powder coating(white)
ExteriorGalvanized steel powder coating(white)
DimensionsCapacity58010501350
Net/Gross Weight(approx)158kg/183kg228kg/263kg280kg/330kg
Interior Dimensions(W*D*H)660x690x1401mm1180x690x1401mm1460x690x1401mm
Exterior Dimensions(W*D*H)785x830x1965mm1305x830x1965mm1585x830x1965mm
FunctionsHigh/Low TemperatureYes
Remote Alarm contactYes
Door open alarmYes
Door LockYes
AccessoriesCasterYes
Test HoleYes
Shelves/Inner Doors5/45/85/8
Foaming DoorYes
Temperature RecorderOptional
