Teflon water bath, auto lifting, temperature digital display
FEATURES

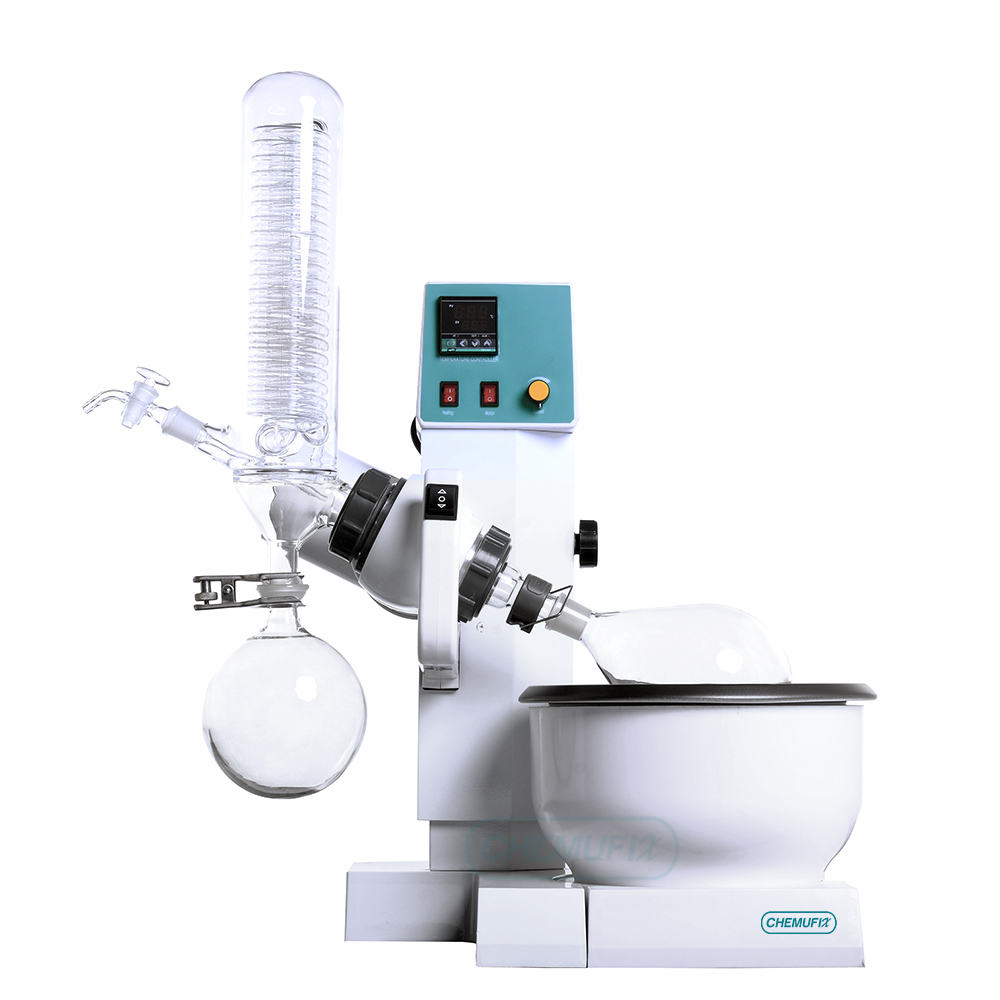

- RE-2000A 1L Rotary Evaporatoris the latest intelligent
- rotary evaporator developed by our company.
- The device uses two-line large-capacity blue backlight
- liquid crystal display as the human-machine interface of
- the device.
- In the control part,the high performance single chip computer is used as the main control chip, and the control object is formulated.
- Using special control program, the whole machine is beautiful and graceful, stable performance, and the device is reserved.
- Upgrade the interface, according to different customer needs, by upgrading the software can meet user requirements.
- Host shock button, fast automatic lifting, lifting distance 0-150 mm
Specifications of 1L Rotary Evaporator
| Model | RE-2000A |
| Glass Material | GG-17 |
| Bracket Material | Aluminium alloy |
| Material of Pan gallbladder | Teflon composite pot, fully closed heating |
| Rotating bottle volume | 1L 24#Standard mouth |
| Collect bottle volume | 1L 35#Ball mill |
| vacuum degree | 40W |
| Rotating power | 0-180rpm |
| Rotating speed | 1.5KW |
| heating power | 0-99°C |
| Temperature control range of bathtub | ±1°C |
| Lifting power | 15W |
| Lifting trip | 120mm |
| Voltage/frequency(V/Hz) | 220V/50Hz |
| Shape size(mm) | 660*420*830 |
| Packing dimensions(mm) | 630*560*540 0.19square |
| Packing weight (KG) | 26 |
| Speed regulation mode | e-cvt |
| Temperature Display Square | PT100sensor digital display |
| Temperature display mode | Intelligent Temperature Control |
| temperature control | Teflon Seal |
| Sealing method | Host automatic lifting |
| condenser | Vertical condenser85*430mm |
| Lifting mode | 19#Label feeding valve |
Optional configuration of 1L Rotary Evaporator
| ITEM NAME | REMARK |
| Heating square | Oil bath 0-400°C |
| Material of bathtub | Whole 304 Stainless steel |
| Splash-proof device | Transparent cover for bathtub |
| Vacuum pump | • Water circulation vacuum pump • Diaphragm vacuum pump |
| Chiller | Circulation chiller, temperature can be chosen from -10C to -100C. |
| Vacuum control | Digital vacuum controller |
