FEATURES

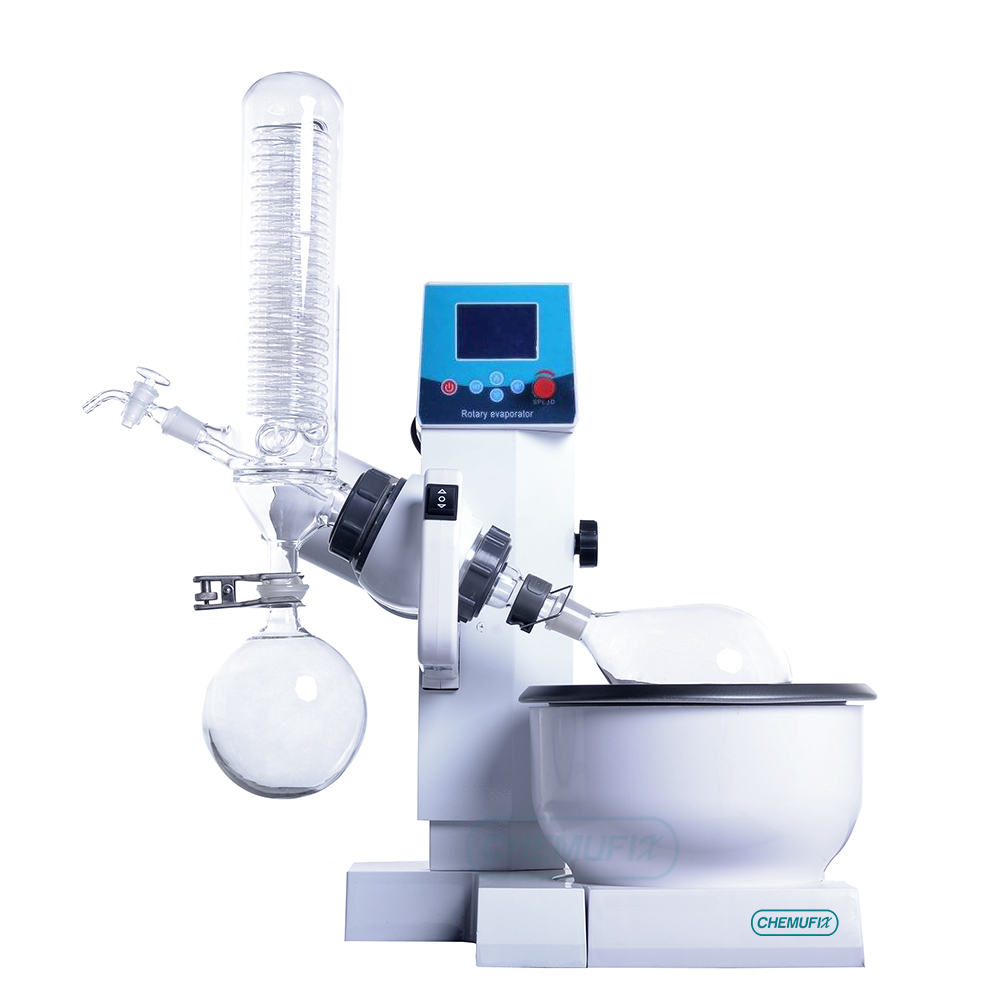

- RE-2000E1L Rotovap Rotary Evaporator is the latest intelligent rotary evaporator developed by our company.
- The device uses two-line large-capacity blue backlight
- liquid crystal display as the human-machine interface of
- the device.
- In the control part,the high performance single chip computer is used as the main control chip, and the control object is formulated.
- Using special control program, the whole machine is beautiful and graceful, stable performance, and the device is reserved.
- Upgrade the interface, according to different customer needs, by upgrading the software can meet user requirements.
- Host shock button, fast automatic lifting, lifting distance 0-150 mm
SPECIFICATION OF 1L Rotovap Rotary Evaporator
| Model | RE-2000E |
| Glass Material | GG-17 |
| Bracket Material | Aluminium alloy |
| Material of bath | Teflon composite closed heating |
| Rotating bottle volume | 1L 24#Standard mouth |
| Collect bottle volume | 1L 35#Ball mill |
| Rotating power | 40W Brushless motor |
| Rotating speed | 0-180rpm |
| heating power | 1.5KW |
| Temperature range of bath | 0-99°C ±1°C |
| Lifting power | 15W |
| Lifting trip | 120mm |
| Voltage/frequency(V/Hz) | 220V/50Hz |
| Shape size(mm) | 660*420*830 |
| Packing dimensions(mm) | 630*560*540 0.19square |
| Packing weight (KG) | 26 |
| Speed regulation mode | e-cvt |
| Speed display mode | LCD |
| Temperature display mode | PT100 sensor LCD |
| temperature control | Intelligent |
| Sealing method | Teflon Seal |
| Lifting mode | Host automatic lifting |
| condenser | Vertical condenser 85*430mm |
| Continuous Feeds | 19#Label feeding valve |
| Heating square | Oil bath 0-400°C |
| Material of bathtub | 304 Stainless steel |
| Splash-proof de vice | Transparent cover for bath |
