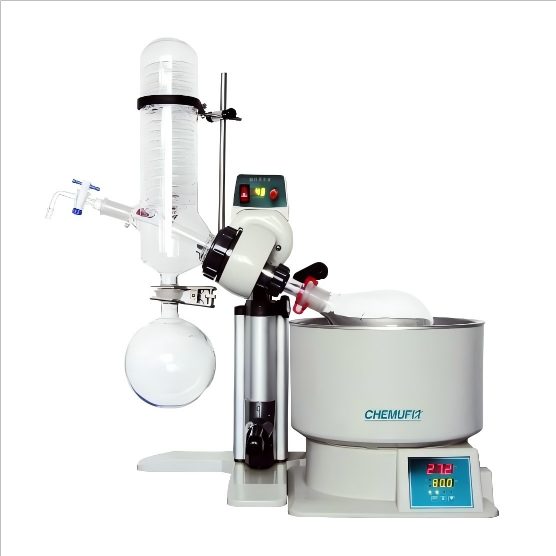

SPECIFICATIONS OF Sliding Lift Rotary Evaporator
| Model | RE-2010 |
| Glass Material | GG-17 |
| Bracket Material | Aluminum alloy |
| Material of Pan gallbladder | Aluminum alloy + Teflon composite pot, fully closed heating |
| Rotating bottle volume | 1L 29 #Standard mouth (Optional 500-3000ml) |
| Collect bottle volume | 1L 35#Ball mill |
| vacuum degree | 0.098Mpa |
| Rotating power | 40W |
| Rotating speed | 20-195rpm |
| heating power | 1.5KW |
| Evaporating capacity | 20ml/min (water) |
| Temperature range | 0-99°C ±1°C |
| Lifting trip | 100mm+150mm(Sliding Lift + Manual Lift) |
| Voltage/frequency(V/Hz) | 220V/50Hz |
| Shape size(mm) | 550*400*780 (1040) |
| Packing dimensions(mm) | 720*525*385 |
| Packing weight (KG) | 16 |
| Speed regulation mo de | e-cvt |
| Temperature display mode | PT100sensordigital display |
| temperature control | Intelligent Temperature Control |
| Sealing method | Teflon + Fluorine Rubber Double Seal Ring |
| condenser | Manual Weight Balance Square |
| Lifting mode | Vertical condenser￠85*430mm，Optional Inclined condenser |
| Continuous Feeds | 19#Label feeding valve |
| Security function | Overload Protection Function (Safety Pipe) |
