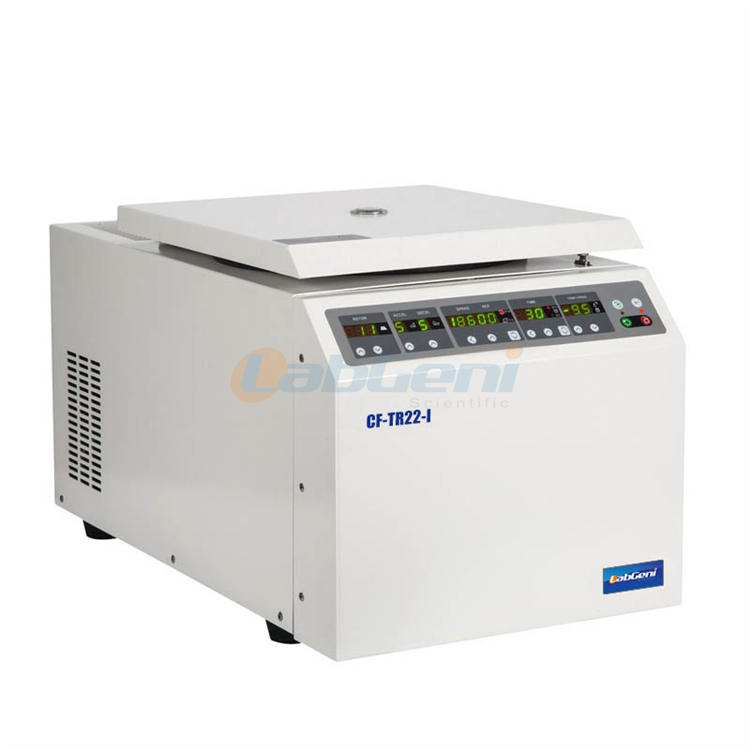

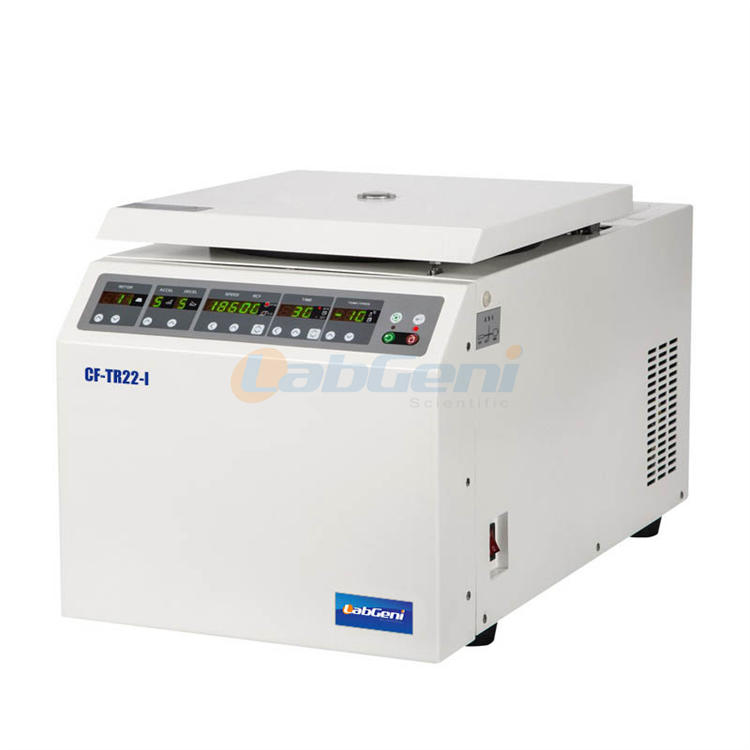

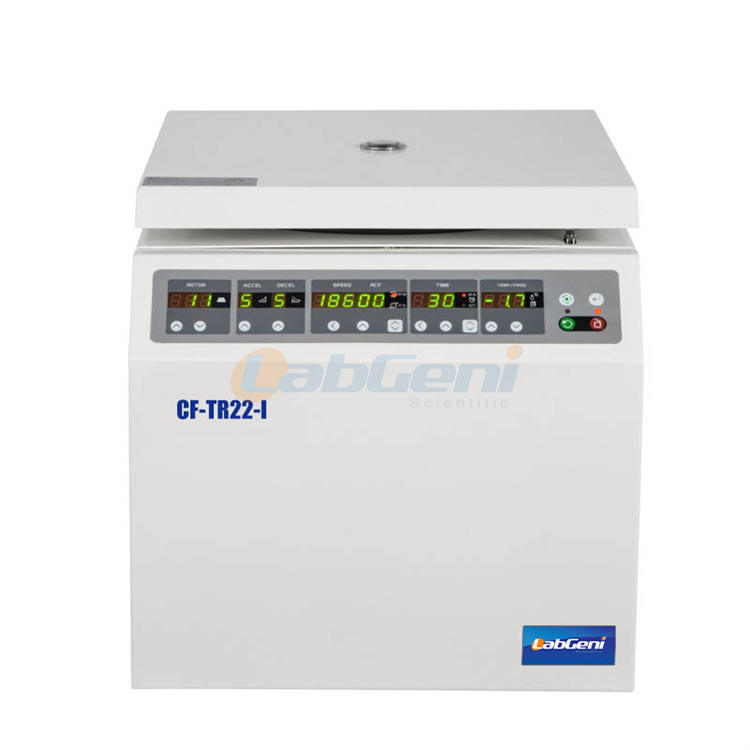

Refrigerated Centrifuge
Advanced Control System, Excellent separation
- 10 kinds of Accel/Decel modes; User can set up the operate parameter by themselves, to achieve the best centrifugal result.
- Short running function, easy to diversification of centrifugation.
- Proprietary SCT speed control technical, high efficiency.
- Proprietary SBT soft brake control technique, to avoid mix up and ensure get maximum specimen.
- Timing control, the centrifugal time can be free to choose minutes or seconds, to achieve optimal centrifugation
High Safety, Ease of use
- Over temperature, over speed, door lid and imbalance switch off and other protection functions, with sound and light alarm, to ensure human and instrument security.
- Steel body, Stainless steel chamber, Steel Protective sleeve, three damping structure, to prevent accidents.
- Optional rotor with aerosol-tight lid, the rotor can be high temperature and high pressure sterilization, to prevent biological pollution.
Friendly Display, Humanity Operate
- LCD, LED multi-screen display, program group, Accel/Decel, RPM/ RCF, time, temperature and other parameters can be set without key combination, easy to operate;
- Microprocessor control, operated data can be saved automatically, can start the instrument with RCF directly, 40 kinds of self-defining programs can be stored and recalled, reduce duplication of operation.
Good parts, Reliable and long-lasting
- Brushless frequency converter motor, super speed bearing and Freon-free compressor imported from Europe, high quality.
- Aerospace rubber for damping, super duralumin alloy from Aluminum Corporation of China Limited (CHALCO), extend the service life of the machine.
Technical Parameter
| Model | CF-TR22-I |
| Max Speed | 18600r/min |
| Max Rcf | 23950×g |
| Max Capacity | 300ml |
| Speed Accuracy | ±20r/min |
| Temperature Range | -10°C-+40°C |
| Temperature Accuracy | ±1°C |
| Time Range | 1s-999min/999sec |
| Power Supply | AC 220V 50Hz 15A |
| Noise | ≤60dB |
| Dimension | 350×625×370mm |
| Weight | 56kg |
Rotor
| Rotor Type | Number | Capacity | Max Speed (r/min) | Max RCF(×g) | Dimension tube（mm） |
Angle Rotor | No.1 | 12×1.5/2.0ml | 18600 | 23950×g | Φ10×42 |
No.2 | 18×0.5ml | 18600 | 23950×g | Φ8×32 | |
No.3 | 24×1.5 /2.0ml | 14000 | 17510×g | Φ10×42 | |
No.4 | 10×5ml | 16000 | 17420×g | Φ14×54 | |
No.5 | 12×10ml | 13000 | 17370×g | Φ16×81 | |
No.6 | 8×15ml | 12000 | 14800×g | Φ16×115 | |
No.7 | 4×8×0.2ml | 12000 | 14800×g | Φ6×22 |
