Table type Universal High speed Refrigerated Centrifuge

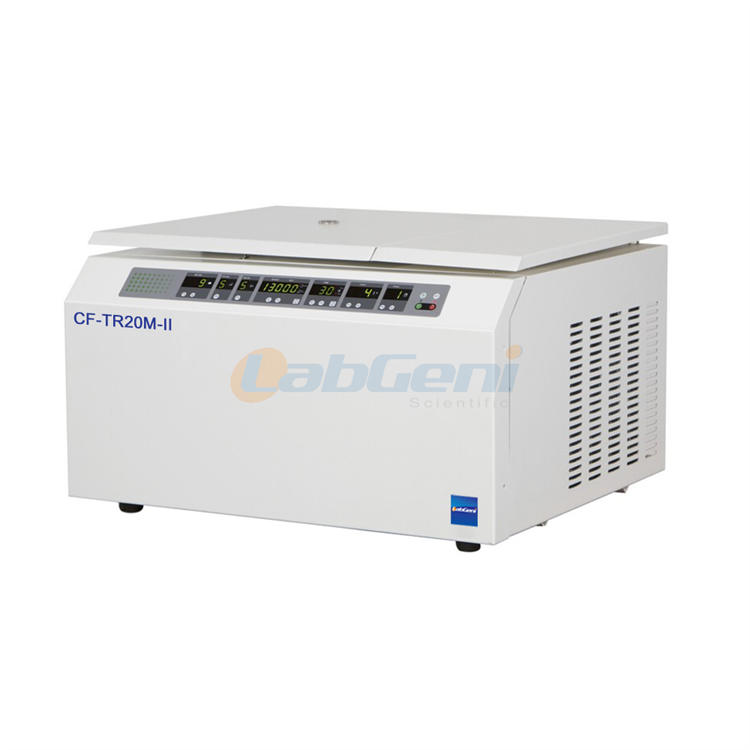

Table type Universal High speed Refrigerated Centrifuge - Image 2
Table type Universal High speed Refrigerated Centrifuge - Image 3

Table type Universal High speed Refrigerated Centrifuge

SKU: CF-TR20M Table type-1 Category:
Request a Quote

FEATURES:

  1. Microprocessor control, operated by touch panel, LED and LCD display, operating data can be saved automatically, RCF value can be set directly for working, easy to use.
  2. Brushless converter motor which has high torque, high speed bearing from European that running smoothly and maintenance-free
  3. Multistage damping system, the Freon-free compressor from Europe, low noise and slight vibration, green.
  4. Steel body, stainless steel centrifugal chamber, imported of key components with high quality, durable and easy to clean
  5. with rotor identification system, Over-speed, door interlock, unbalance protection function, instrument and rotor lifespan calculation function, the rotor can be disinfected at high temperature & high pressure to ensure safety.
  6. Pre-cooling design for chamber, fast cooling. Proprietary SCT speed control design, fast acceleration and deceleration, high efficiency.
  7. Adjustable acceleration and deceleration from grade 0 to 9 or directly set the time of Accel/Decel, and can be store 40 kinds of self-defining operating models, to achieve the best centrifugal result.
  8. Hold-on and transient centrifuging, easy to diversify centrifuging.
  9. Multifunctional, can centrifuge at both high speed and low speed with large volume swing rotor

TECHNICAL PARAMETER:

Maximum RPM21,000r/min
Maximum RCF30,700 x g
Maximum Capacity3000ml
Temperature Range-20°C – +40°C
Time Range0-99h59m59s
Speed Accuracy±20r/min
Temperature Accuracy±1°C
Noise≤60dB
Power supplyAC220V50Hz /AC110V 60Hz 18A
Dimension800 x 700 x 400 mm
Net Weight110 kg

ROTORS AS PER YOUR REQUIREMENT:

Rotor TypeRotor No.Capacity (ml)Max Speed (r/min)Max RCF (xg)Dimension of tube (mm)
Angle rotor612x 1.5/2.0ml2100030700Φ10×42
924x 1.5/2.0ml1600023200Φ10×42
1118×0.5ml1600017800Φ8×32
1210x5ml1600017420Φ14×54
1612x10ml1500023120Φ16×81
1848×0.5ml1300014740Φ8×32
226x50ml1400020150Φ28×105
314x100ml1400020000Φ38×124
528x50ml1000011100Φ29×106.5
5312x30ml80007600Φ25×93.5
5420x10ml1000010150Φ16.5×85.5
5632×1.5ml1600020320Φ11×41.5
5730x2ml1500024300Φ10.5×42
5836x2ml1500022140Φ10.5×42
Swing-out rotor634×50/100ml50004390Φ38×124
694x500ml40003580Φ80×140
Adaptor12x50ml/8x100ml40003580
704x250ml40003500Φ64×113
Adaptor8x50ml/36x10ml40003500
714x750ml40003580Φ99×130
7732×10/15ml40002810Φ16×85-118
818×50/100ml40002810Φ28×105-115
8248/40x5ml40002800Φ14×54
84148x7ml40003200Immuno tube
84120x7ml40003200Vacuum blood collection tube
442×48 holes40002300Microtiter plate
442×96 holes40002300Microtiter plate
