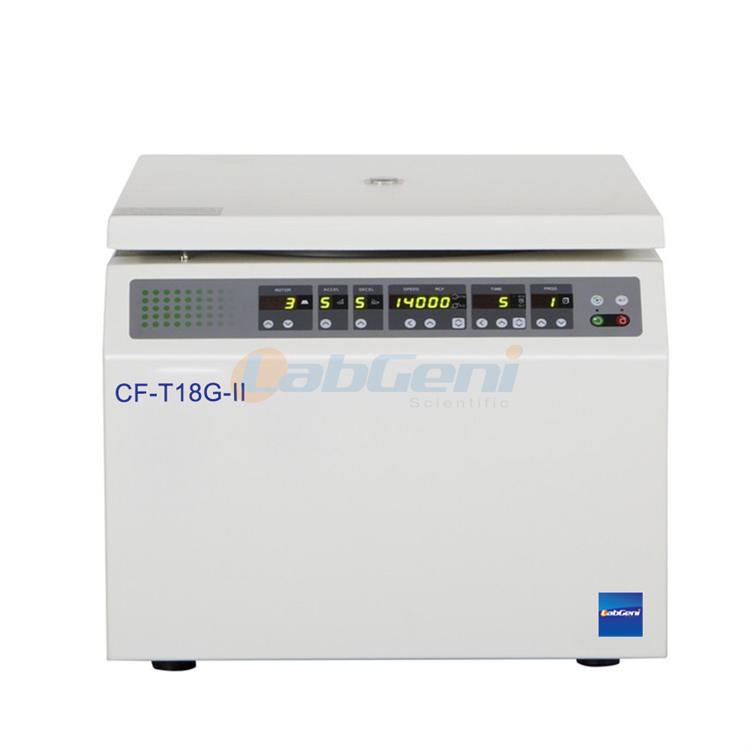

Table type Universal High speed Refrigerated Centrifuge

SKU: CF-T18G-II Category:
Request a Quote

FEATURES:

  1. Microprocessor control, operated by touch panel, LED display, operating data can be saved automatically, RCF value can be set directly for working, easy to use.
  2. Brushless converter motor which has high torque, high speed bearing from European that running smoothly and maintenance-free
  3. Multistage damping system, low noise and slight vibration, green.
  4. Steel body, stainless steel centrifugal chamber, imported of key components with high quality, durable and easy to clean
  5. with rotor identification system, Over-speed, door interlock, imbalance protection function, instrument and rotor lifespan calculation function, to ensure safety.
  6. Special air flow guide design, small temperature rise. Proprietary SCT speed control design, fast acceleration and deceleration, high efficiency.
  7. Adjustable acceleration and deceleration from grade 0 to 9 or directly set the time of Accel/Decel, and can be store 40 kinds of self-defining operating models, to achieve the best centrifugal result.
  8. Hold-on and transient centrifuging, easy to diversify centrifuging.
  9. Multifunctional, can centrifuge not only at high speed but also at low speed with swing rotor.

TECHNICAL PARAMETER:

ModelCF-T18G-II
Maximum RPM 18600r/min
Maximum RCF 23950 x g
Maximum Capacity 2000ml
Time Range0-99h59m59s
Speed Accuracy±20r/min
Noise≤65dB
Power supplyAC220V50Hz / AC110V 60Hz,18A
Dimension460 x 590 x 420 mm
Net Weight48 kg

ROTORS

Rotor TypeRotor No.Capacity (ml)Max Speed (r/min)Max RCF (xg)Dimension of tube (mm)
Angle rotor612x 1.5ml1860023950Φ10×42
1118×0.5ml1860023950Φ8×32
924×1.5/2.0ml1500021000Φ10×42
1210x5ml1600017420Φ14×54
1612x10ml1500023120Φ16×81
226x50ml1300017380Φ28×105
314x100ml100009690Φ38×124
Swing-out rotor634×50/100ml50004390Φ38×124
694x500ml (adaptor 12x50ml/8x100ml)40003580Φ80×140
704x250ml (adaptor 8x50ml/36x10ml)40003500Φ64×113
7732×10/15ml40002810Φ16×85-118
818×50/100ml40002810Φ38×124
8248/40x5ml40002800Φ14×54
84148x7ml40003200Immuno tube
84120x7ml40003200Vacuum blood collection tube
Microplate rotor442×48 holes40002300Microplate
