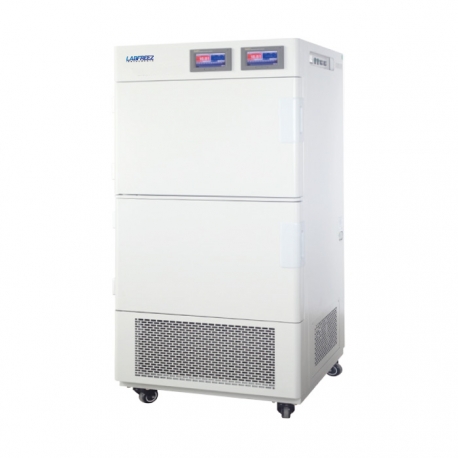

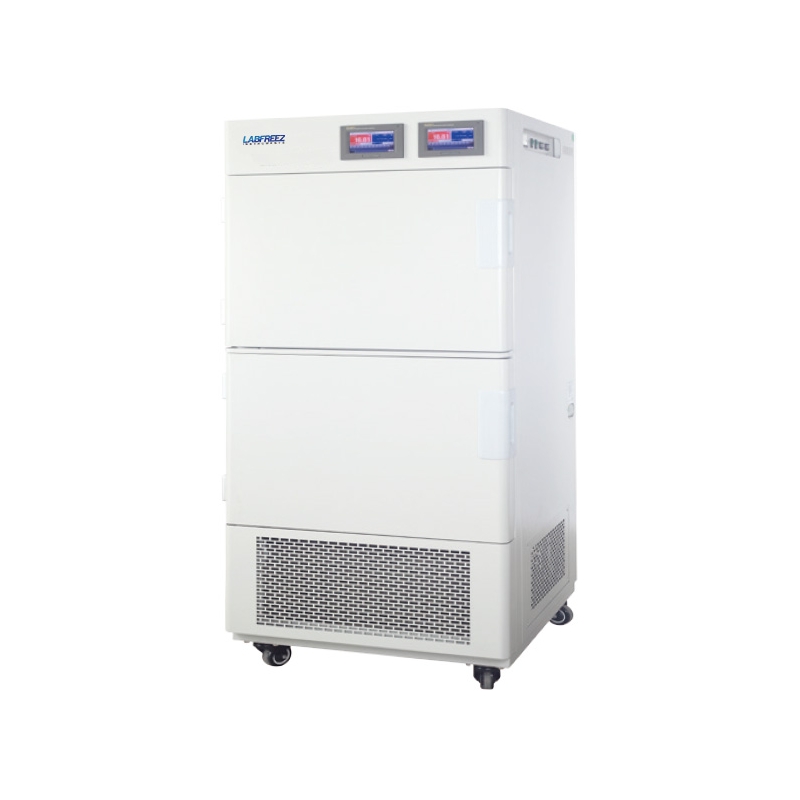

Medicine Stability Testing Chamber

Model: MSC-TH/THL/TL Series

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

To create an evaluation of drug failure need long stable temperature, humidity and light environment for pharmaceutical companies for medicines and accelerated testing of new drugs, long-term test, humidity test and glare testing, pharmaceutical companies drug stability test performed best option, it is necessary equipment of pharmaceutical factory to achieve GMP certification.

Features:
l Microprocessor control, stainless steel chamber, semicircular arcs at corners for easy cleaning
l Even air circulating system
l R134a refrigerant, 2 imported compressors and fan motor
l Over temperature and temperature difference alarms
l Imported humidity sensor which can be used in high humidity environment
l Balance temperature and humidity adjusting system
l There is a 25mm instruction connection hole on the left side of the chamber for easy testing operation and temperature measurement.
l UV light system for periodic sterilization of chamber (Option)
l Independent audible and visible temperature-limiting alarm system ensures experiments run safely (Option)
l RS485 connector can connect computer record and inspect the parameters and the variations of temperature (option)

Programmable Touch Screen
l Large LCD screen to display more data at same time
l English operation menu, display current data curves
l 100 groups with 1000 period’s 999 circulations, max timing for each period is 99hours 59 minutes.
l Auto lock after setting data.
l Available to program on computer via RS-484 or RS-232

Safety device:
l Compressor over-heat protection
l Fan over-heat protection
l Over-temperature alarm system
l Over-compressing protection
l Over-load protection
l Water lack protection

Specifications

Type	Temperature & humidity		Temperature & humidity & illumination	Temperature & illumination
Model	MSC-TH80 MSC-TH150 MSC-TH250	MSC-THP80 MSC-THP150 MSC-THP250	MSC-THL150 MSC-THLP150 MSC-THL250 MSC-THLP250	MSC-TL150 MSC-TL250 MSC-TL400
Temp. range	0~65°C		With illumination: 0~65°C Without illumination 10～50°C
Temp. fluctuation/uniformity	±0.5°C/±2°C
Humidity range/accuracy	40~95%RH/±3%RH			None
Illumination range/accuracy	None		0~6000LX adjustable≤±500LX
Timer	1~99 hours per segment
Adjust type	Balance			Balance
Refrigeration	Dual imported hermetic compressors (Auto switchable) MSC-TH80/THP80 is one compressor)
Controller	LCD	touch LCD	THL：LCD THLP：touch LCD	LCD
Sensor	Pt100 & humidity sensor			Pt100
Ambient temp.	RT+5～30°C
Power supply	AC220V±10% 50HZ
Power	1900W/2200W/2400W		2300W/2600W	1500W/1800W/3200W
Capacity	80L 150L 250L	80L 150L 250L	150L 250L	150L 250L 400L
Inner size(mm) W×D×H	400×400×500 550×405×670 600×500×830	400×400×500 550×405×670 600×500×830	550×405×670 600×500×830	550×405×670 600×500×830 700×550×1140
Dimensions(mm) W×D×H	550×790×1080 690×805×1530 740×890×1680	550×790×1080 690×805×1530 740×890×1680	690×805×1530 740×890×1680	690×805×1530 740×890×1680 950×850×1850
Shelf	2/3/3 pcs	2/3/3 pcs	3/3 pcs	3/3/4 pcs
Built-in printer	Yes	Yes	Yes	Yes
Programmable	Yes	Yes	Yes	Yes
Safety device	Compressor overheating and overpressure protection, Fan overheating protection Over temperature protection, Overload protection, Water protections
Remark	Illumination can be manual stepless adjust for TL, THL, THLP series, light intensity monitor, built-top illumination device is fitted up.

Optional

Item No.	Paperless recorder
MSC0001	high-precision digital recorder（Fuji PE-2）
MSC0002	wired alarm monitoring system
MSC0003	SMS monitoring alarm system
MSC0004	UV disinfection systems.
MSC0005	Shelf illumination device
