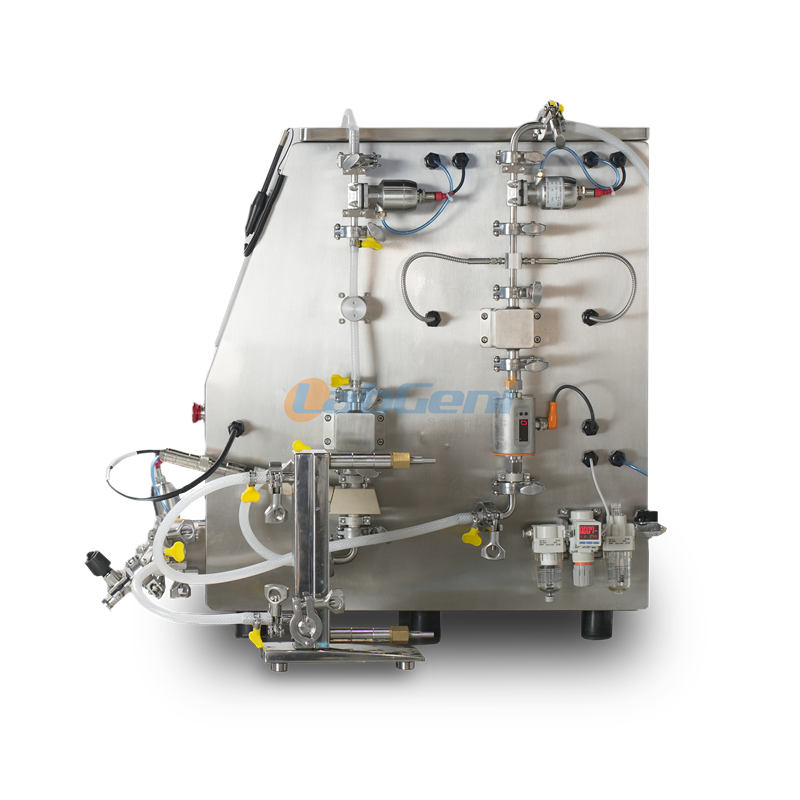

The system is suitable for purification, clarification, concentration, buffer exchange and other processes in the downstream process of biological products. The system adopts a semiautomatic design, automatically controls TMP, and realizes functions such as automatic concentration, automatic diafiltration collection, and automatic data recording.
System Advantage
Industry-leading system piping design, smaller circulation volume and retention volume
- Pipeline design strictly follows ASME BPE standards
- Sensor flow cell and multi-channel valve body design, so that your system no longer has dead zones
- Modular design optimizes system piping, convenient loading and unloading, and flexible use in laboratory environments
Powerful system module optional configuration, with higher usage requirements
- Flowmeter imported from Germany, accurately monitors the flow at the concentration end and the permeate end
- A combination of multiple sensor optional modules (conductivity, PH, UV) enables you to get the system you want and fully meet your experimental process needs
Self-developed new generation BIO-TFF Intelix® operating system
- display interface and operation interface are independent of each other, making observation and operation more intuitive
- Simple operation, just set a few parameters, the system can run efficiently
- Multiple endpoint parameter controls to create unattended ultrafiltration equipment for you
- Automated TMP control, optimize process parameters, ensure consistency during amplification process Built-in parameter alarm settings, online monitoring, recording and curve display data, etc.
Main Specifications
| Project Name | Parameters |
| Support membrane package area | 0.1㎡-0.5㎡ |
| Circulation tank | AISI 316L stainless steel
volume 10L stirring speed: 0~1000rpm |
| Power Unit | Four-piston diaphragm pump
speed 0~3000rpm flow 0~180L/H Peristaltic pump speed 0~60 rpm flow 0~186L/H |
| Feed flow | 0-3L/min |
| Work Pressure | 0 ~ 6 bar |
| Process temperature range | 0 ~ 65 ℃ |
| Minimum circulation volume | 120 ml |
| Hold-up volume | 29 ml |
| interface | 1/2” |
| Contact material | AISI 316L, PTFE, EPDM |
Optional List
| ITEM CODE | DESCRIPTION |
| BIOTFFAUT001 | Flat membrane (0.1m2 , 0.5m2) |
| BIOTFFAUT002 | Hollow fiber column |
| BIOTFFAUT003 | Protein concentration monitoring |
| BIOTFFAUT004 | Conductivity electrode |
| BIOTFFAUT005 | pH electrode |
| BIOTFFAUT006 | Stirring system for tank |
| BIOTFFAUT007 | Weight system |
| BIOTFFAUT008 | Jacket tank |
| BIOTFFAUT009 | UV detector |
