Titrator

> >>>Automatic potentiometric titrator

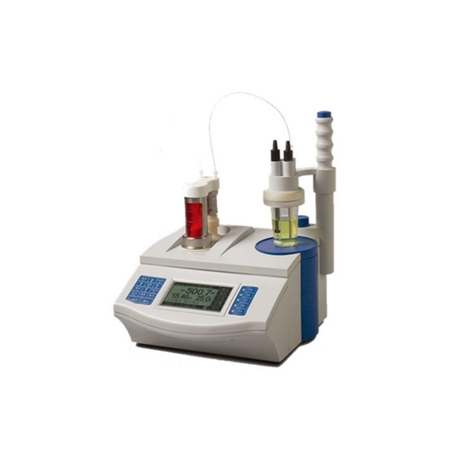

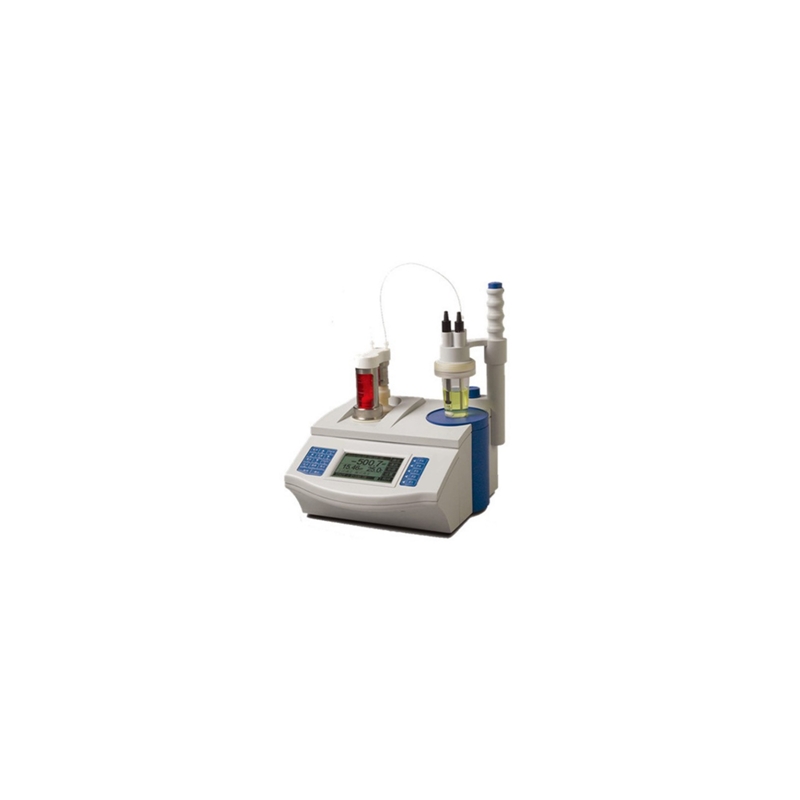

Automatic potentiometric titrator

WT-TT-4B

More info

Main feature

  1. Dot matrix LCD display, button operation, computer Chinese software control or separate control; real-time display of relevant test methods, titration curves, measurement results;
  2. Valve burette integrated design, easy to replace, effectively avoid the mutual interference problem of different solutions with different titration;
  3. Support multiple titration modes such as pre-titration (dynamic titration), preset end point titration, mode titration, blank titration, manual titration, etc., to support the generation of special titration mode;
  4. Supports various titration methods such as acid-base titration, redox titration, precipitation titration, complexometric titration, non-aqueous titration, etc.; supports the establishment, editing, copying and review of titration methods; supports pH measurement.
  5. Data management function: support storage of 200 sets of titration results and 1 set of titration curves, in accordance with GLP specification measurement information, traceable information is more complete; support data deletion, review, printing or output;
  6. Supports both Chinese and English operating languages; supports power-off protection;
  7. Support USB, RS232 connection PC, random donation special software;
  8. Support firmware upgrade; support for automatic sampler connection via PC.

Technical Parameters


Titration device

Volumetric titration
unit

Titration analysis repeatability

0.2%

Titration capacity tolerance

10ml burette: ±0.025ml; 20ml burette: ±0.035ml

Burette resolution

10ml burette: 1/10000; 20ml burette: 2/10000

Burette infusion or Rehydration rate

(55±10) s (when the burette is full)

Measuring device

Potentiometric titration
Module

Measuring range

 (-1800.0 ~ 1800.0) mV,
(0.00 ~ 14.00) pH

Resolution

0.1mV, 0.01pH

Basic error

pH: ±0.01pH    mV: ±0.03%FS

stability

(±0.3mV±1 words)/3h

Temperature compensation

Measuring range

 (-5.0 ~ 105.0) ℃

Resolution

0.1℃

Basic error

±0.3℃

power supply

AC (220 ± 22) V; frequency (50 ± 1) Hz

Size (mm), weight (kg)

340×400×400, 10

The main function


Titration
unit

Built-in titration line

●

Expandable external titration line

/

Integrated burette

●

10ml/20 ml optional

●

Signal unit

Potentiometric titration module

●

screen display

Dot matrix liquid crystal display

Computer software control

●

Titration
mode

Dynamic titration

●

Preset endpoint titration

●

Constant titration

●

Equal titration

●

Manual titration

●

Custom titration

●

Titration curve

●

Titration method

/

Storing data

200

Data interface

RS-232

●

USB

●

Autosampler

● (via PC)

U disk hardware upgrade

●

Product configuration
WT-TT-4B automatic potentiometric titrator


Serial number

Name and specification

Quantity


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26



 WT-TT-4B automatic potentiometric titrator
  232-01 reference electrode
  213-01 platinum electrode
  216-01 silver electrode
  217-01 reference electrode
  231-01 pH glass electrode
  T-818-B-6 type temperature electrode
  Drip tube (SC5.462.013)
  Solution Cup (SC8.219.010)
  Solution Cup (SC8.463.001)
  Pole tool (SC8.227.126)
  Burette valve device 10ml (SC5.461.044)
  Stirring beads (small)
  Electrode holder device (SC5.108.022)
  Sealing ring (SC8.370.249)
  Infusion tube (fluoroplastic) Φ3.2×0.5 (import)
  Casing 008NC32-YC5U (import)
  Inverted cone washer 008CZ32 (import)
  Plastic liquid storage bottle (500ml)
  Fuse Φ5×20(1A)
  International universal power cord
  TP-16 serial printer connection
  USB communication connection
  Product instruction manual and application examples
  Product certification
  Lightning titration software



1 set
1
1
1
1
1
1
4 roots
3
3
1 set
1se
3
1se
3
2 roots
3
3
1
2
1
1
1
1 each
1 serving

  1. set
