APPLICATIONS
Ultrasonic homogenizer, also known as ultrasonic cell pulverizer, extractor, disperser, processor , emulsifier; is one of the commonly used equipment for laboratory sample pretreatment; widely used in:
- Sewage treatment (COD degradation)
- Environmental science (extraction of soil organic matter)
- Pharmaceutical (Traditional herbal medicine and plant extraction)
- Life science (cell wall extraction and crushing)
- Composite material preparation (nano material dispersion)
- Homogeneous mixing (accelerated dissolution, chemical reaction synthesis, oil-water emulsification)
FEATURES
- OUH-piece design, simple and elegant appearance, and small footprint.
- 110V/220V optional voltage input
- 10 groups of user selection and storage, can call out the program group to run in real time.
- There are three operating mode settings: continuous use, pulse, and timed continuous ultrasound, which can meet the processing of various materials.

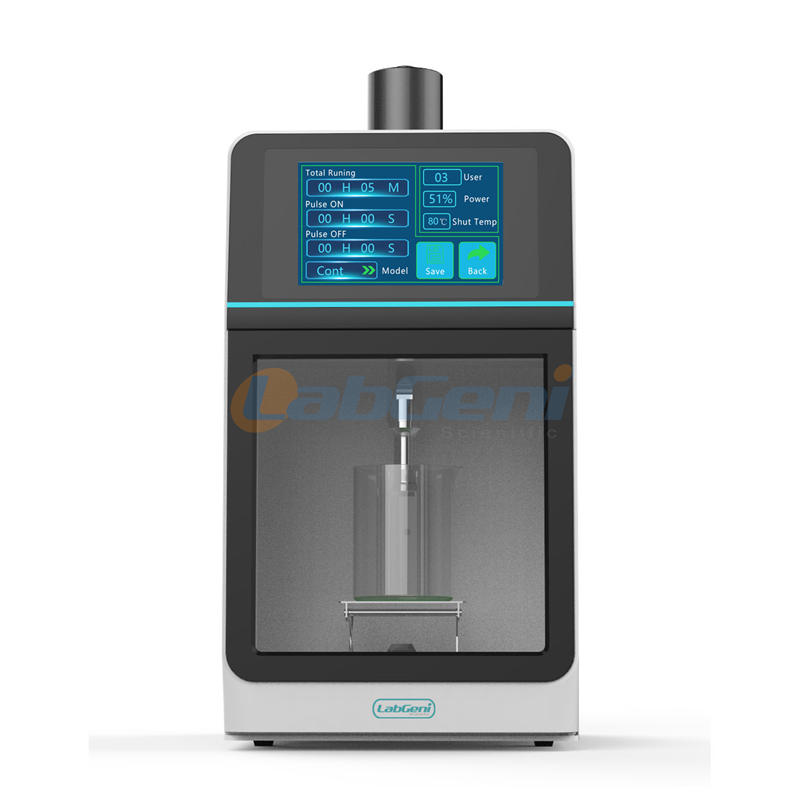

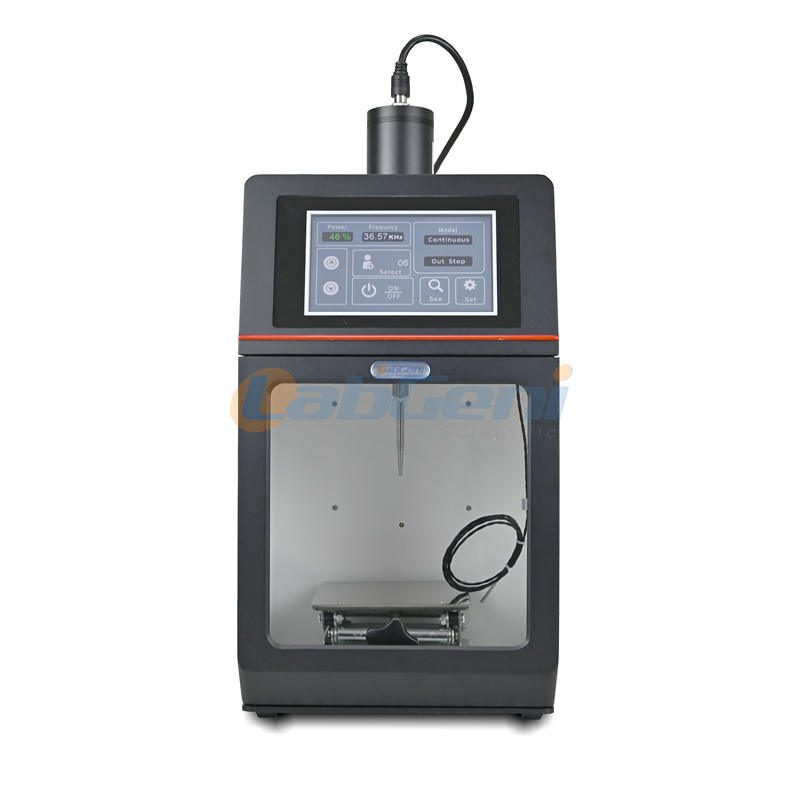

- The operation interface adopts 7-inch color industrial touch screen.
- Comes with ultrasonic output running display light, which can observe the processing effect of ultrasonic on the sample in real time.
- Integrated display of operation interface, which can directly view each parameter of ultrasound.
- Three-dimensional exponential horn design, the ultrasonic horn has a longer service life and higher efficiency.
- Optional automatic lift, UV sterilization lamp.
- The series of products have CE/ISO certification and intellectual property protection.
TECHNICAL PARAMETERS
| Model | UH-300Z | UH-500Z | UH-1000Z | UH-1500Z | UH-1800Z | UH-2000Z |
| ultrasonic host parameters | ||||||
| Ultrasonic power | 300W | 500W | 1000W | 1500W | 1800W | 2000W |
| Ultrasonic power (energy saving) | 30W | 65W | 115W | 160W | 175W | 185W |
| Ultrasonic probe parameters | ||||||
| Standard horn | Φ3mm | Φ6mm | Φ10mm | Φ16mm | Φ18mm | Φ20mm |
| throughput | 0.1~300mL | 0.1~500ml | 0.1~1200ml | 50ml~1800ml | 50ml~2200ml | 50ml~3000ml |
| Cable | 150cm | 150cm | 150cm | 150cm | 150cm | 150cm |
| Optional horns | Φ3 (0.1~50mL) Φ6 (50~300mL) Φ10(200~300mL) | Φ3 (0.1~50mL) Φ6 (50~500mL) Φ10(300~500mL) | Φ3(0.1~50mL) Φ6 (50~500mL) Φ10(500 ~1200mL) | Φ10(50~500mL) Φ16(50~1200mL) Φ18(1000~1800mL) | Φ10(50~500mL) Φ16(50~1200mL) Φ18(1000~2200mL) | Φ10(50~500mL) Φ16(50~1200mL) Φ18(1000~2200mL) Φ20(1000~3000mL) |
Note: Choose the appropriate horn according to the processing capacity
ULTRASONIC HOST COMMON PARAMETERS
| ITEM | SPEFICICATION |
| Horn material | Titanium alloy: TC4 |
| Nominal frequency | 19-26KHz (real-time display frequency) |
| Timer | 1Min~99H can be set |
| Power regulation | 1%~100%, 1% progressive |
| Temperature warning setting | 0~300°C, 1°C increments |
| user program | 10 groups (can be set, stored, working status can be viewed in real time) |
| pulse interval | 1S~60Min can be set and stored |
| operating mode | Pulse, Time, Continuous |
| LCD | Color touch screen, resolution: 800×480 |
| operating language | English |
| Display parameters | Ultrasonic output power, frequency, working mode, user group, setting key, equipment running status, start/stop, equipment running parameter details key |
| Running display | Total running time, working time, stop time, user group, overload temperature, power output ratio, working mode, program save key |
| show lights | Built-in ultrasonic output running display light, you can observe the ultrasonic output status at any time |
| Power | 110/220V /50-60Hz |
| Dimensions | 530×375×560 (mm) (D*W*H) |
| Weight | 11 kg |
PARAMETERS OF ULTRASONIC PROBE
| Configuration of Piezoelectric Frequency Converter | |
| Piezoelectric Frequency Converter | PZT Lead Zirconate Titanate Piezoelectric Ceramics |
| Standard Amplifier | Aluminum Alloy Material: T1-6AL-4V |
| Total Length | 105-115mm (variable ratio) |
| Cable Line | 150 cm |
STANDARD CONFIGURATION PACKING
| ITEM NAME | QTY |
| Ultrasonic host | 1 set |
| Ultrasound probe | 1 set |
| Lifting table, non-slip mat | 1 |
| Temperature Sensor | 1 stick |
| power cable | 1 |
| Cable | 1 |
| fuse | 3 sticks |
