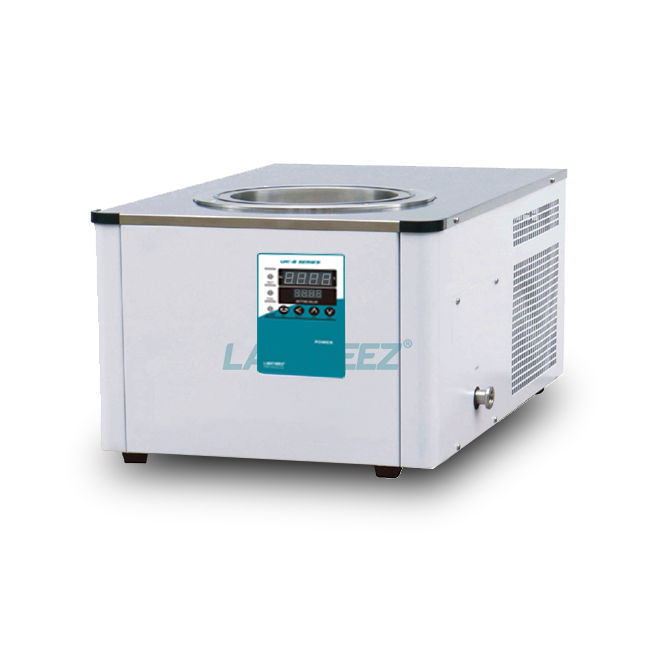

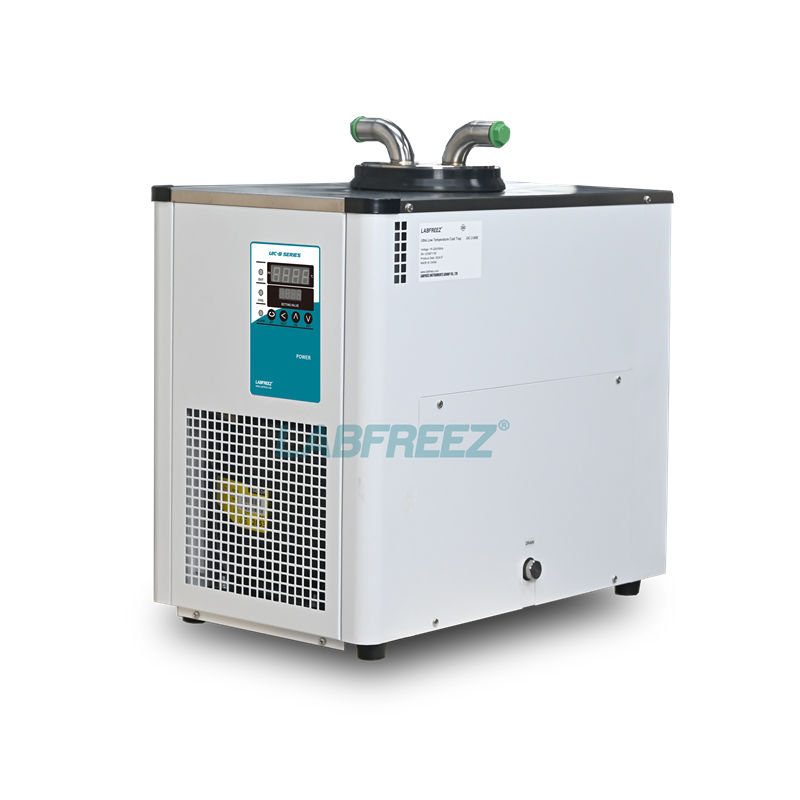

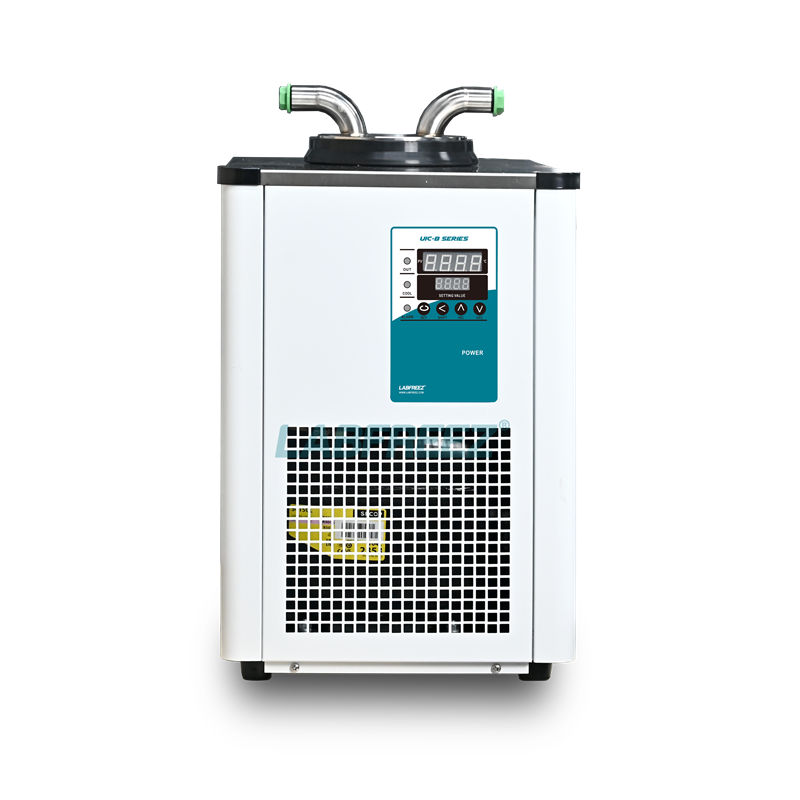

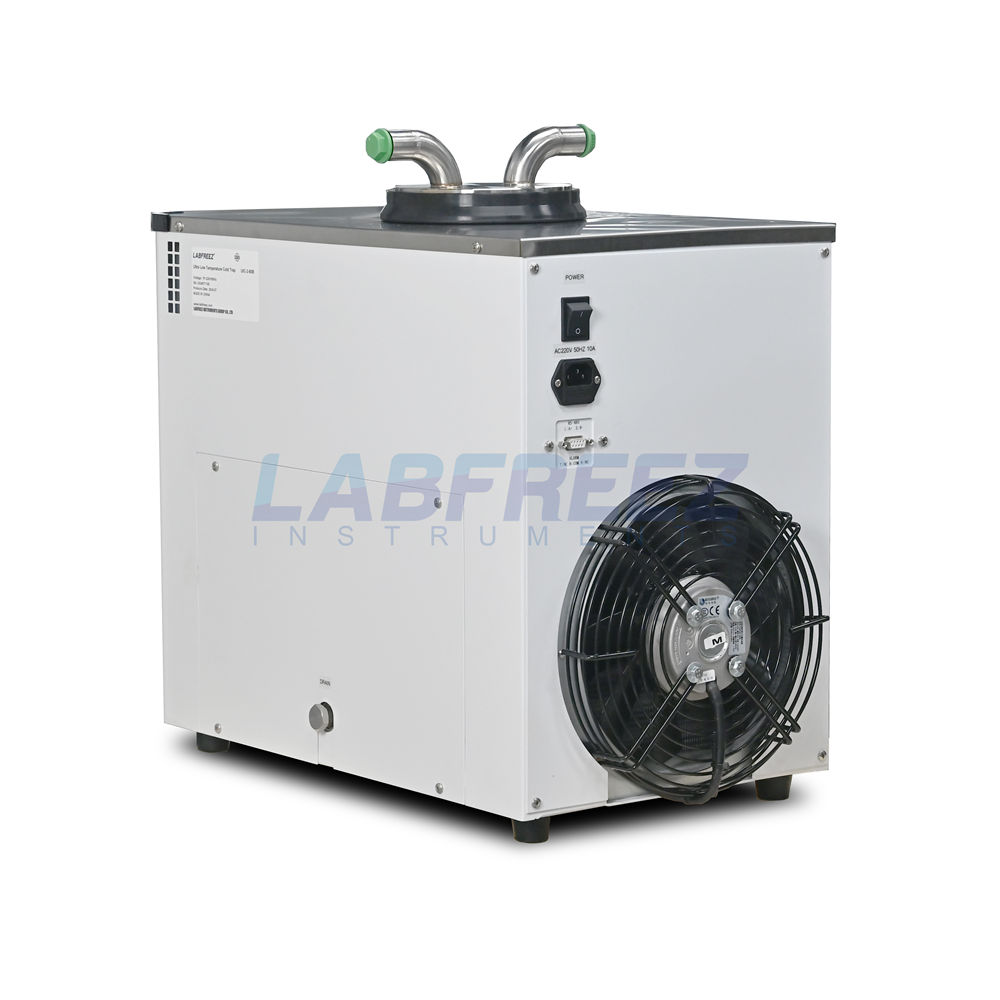

Description:
UIC-B Series ultra low temperature cold trap used auto cascade refrigeration, applicable to gas condensate trap, cryogenic liquid bath, oil and gas recovery, material testing, lyophilized drugs and other purposes. Cold trap size, interface mode can be customized. You can customize the vacuum sealed cold trap. Condensation bottle can be equipped with a variety of specifications. Cold trap volume 3L, 6L, 9L, 25L, 50L, minimum temperature -50, -80, -100, -120°C, -135°C.
FEATURES OF Ultra low temperature cold trap
- Stainless steel cold trap, smooth and clean inner wall, optional Teflon coating
- The limit temperature is low, which improves the recovery rate of low boiling point solvents and the capture efficiency of harmful gases
- It can be cooled directly on the inner wall of the cold trap, or a variety of glass condensation collection bottles can be selected
- A variety of material cold trap covers are optional, suitable for water-based, acidic and organic solvent gases
- Equipped with condensate discharge valve for easy collection or discharge
- Can be used as low temperature tank, prefreezing tank, low temperature container
- Cold trap size and interface form can be customized on demand
- Vacuum-sealed cold traps can be customized
- Can be equipped with various specifications of condensation collection bottles
- Desktop design, suitable for use on the work surface, and can also be placed in the fume hood.
SPEIFICATIONS OF Ultra low temperature cold trap
| MODEL | UIC-2-50B | UIC-2-80B | UIC-4-50B | UIC-4-80B | UIC-4-110B |
| Lowest temp.( °C) | -50 | -80 | -50 | -80 | -110 |
| Trap capacity (L) | 2 | 2 | 4 | 4 | 4 |
| Trap size(mm) | Φ120×200 | Φ120×200 | Φ160×200 | Φ160×200 | Φ160×200 |
| Temp. control | N/A | N/A | N/A | Optional | Optional |
| Cooling type | Air cooled | Air cooled | Air cooled | Air cooled | Air cooled |
| Power (V Hz kW) | 220/50/0.4 | 220/50/0.9 | 220/50/0.6 | 220/50/1.2 | 220/50/1.4 |
| Net weight(kg) | 23 | 32 | 35 | 68 | 75 |
| Dimensions (W×D×H Cm) | 25×43×36 | 30×50×43 | 36×60×30 | 45×63×38 | 50×65×43 |
| MODEL | UIC-6-100B | UIC-6-120B | UIC-6-135B | UIC-9-50B | UIC-9-100B | UIC-9-120B | UIC-9-135B |
| Lowest temp.( °C) | -100 | -120 | -135 | -50 | -100 | -120 | -135 |
| Trap capacity (L) | 6 | 6 | 6 | 9 | 9 | 9 | 9 |
| Trap size(mm) | Ф200×220 | Ф200×220 | Ф200×220 | Ф220×250 | Ф220×250 | Ф220×250 | Ф220×250 |
| Temp. control | N/A | N/A | N/A | N/A | Optional | Optional | Optional |
| Cooling type | Air cooled | Air cooled | Air cooled | Air cooled | Air cooled | Air cooled | Air cooled |
| Power (V Hz kW) | 220/50/1.3 | 220/50/1.4 | 220/50/1.9 | 220/50/1.5 | 220/50/1.5 | 220/50/1.6 | 380/50/2.0 |
| Net weight(kg) | 92 | 102 | 116 | 65 | 95 | 108 | 121 |
| Dimensions (W×D×H Cm) | 44×52×88 | 44×52×88 | 50×55×118 | 44×52×88 | 44×52×88 | 44×52×88 | 50×55×118 |
| MODEL | UIC-25-50B | UIC-25-80B | UIC-25-110B | UIC-25-135B |
| Lowest temp.( °C) | -50 | -80 | -110 | -135 |
| Trap capacity (L) | 25 | 25 | 25 | 25 |
| Trap size(mm) | Ф280×410 | Ф280×410 | Ф280×410 | Ф280×410 |
| Temp. control | N/A | N/A | N/A | N/A |
| Cooling type | Air cooled | Air cooled | Air cooled | Air cooled |
| Power (V Hz kW) | 220/50/1.8 | 220/50/2.5 | 220/50/2.7 | 220/50/2.9 |
| Net weight(kg) | 80 | 100 | 115 | 140 |
| Dimensions (W×D×H Cm) | 44×52×98 | 44×52×98 | 44×52×98 | 50*55*118 |
