> >>>SP-X Series Flashing Xenon Lamp Double Beam Spectrophotometer,21 CFR

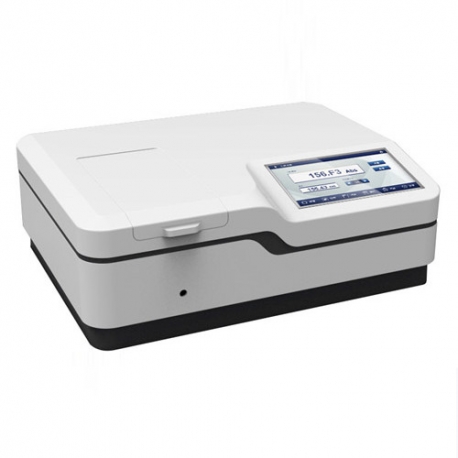

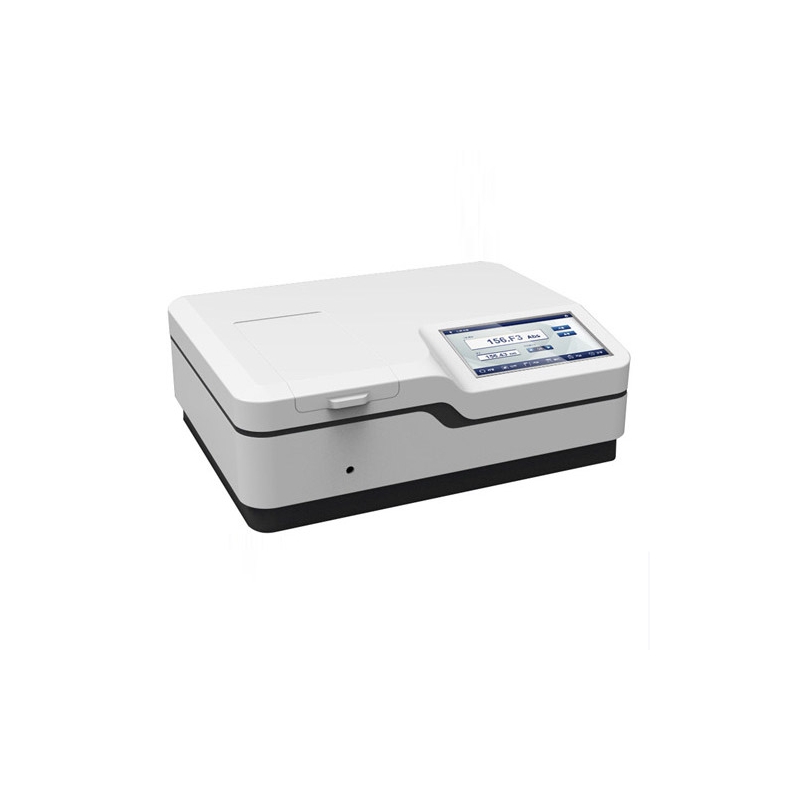

SP-X Series Flashing Xenon Lamp Double Beam Spectrophotometer,21 CFR

SP-X Series

More info

Features:

  1. High quality flashing xenon lamp is from Hamamatsu, which can start to test directly without preheating.  The lamp can be used at least 3-year.
  2. Powerful functions like Photometric measurement, Quantitative measurement, Kinetics, Spectrum scan, DNAProtein test, multi-wavelength test, etc
  3. In-house massive memory is capable of saving up to 1024M for test data & working curves.
  4. Supports USB storage.The USB port can be used for data transfer, which is easily exported to Excel for further processing, analysis and storage.
  5. Large sample chamber can accommodate 5-100mm cuvettes of all kinds.
  6. Extensive accessories are optional, such as auto 8-cell holder, film holder, peltier/sipper system, 21 CFR compliant software,  built-in thermal printer, etc.

Specifications:


Model

SP-X8000

SP-X8001

SP-X8001S

SP-X9000

SP-X9001

SP-X9001S

Optical System

Double Beam, Grating 1200 lines/mm

Wavelength Range

190-1100 nm

Spectral  Bandwidth

2nm

1nm

0.5/1/2/4/5

2nm

1nm

0.5/1/2/4/5

Wavelength Accuracy

±0.1nm@656.1nm, ±0.3nm@all

Wavelength Repeatability

<=0.1nm

Photometric Accuracy

0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)

Photometric Repeatability

≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)

Photometric Range

0-200%T, -0.3~3A, 0-9999C (0-9999F)

Stray Light

<=0.03%T@220nm, 360nm

Stability

±0.0005A/h@500nm

±0.0003A/h @500 nm

Baseline Flatness

±0.0002A

±0.001A

±0.0002A

±0.001A

Noise

0.0005A@500nm

Work Mode

T, A, C, E

Scanning Speed

Hi, Med, Low (Max. 3000nm/min)

Wavelength Setting

Auto

Display

7" TFT Color Screen

10.1" TFT Colored Capacitive Touch Screen

Light Source

Imported Xenon Lamp

Detector

Imported Silicon Photodiode

Cuvette Holder

10mm single hole cell holder

Output

USB drive, USB host, RS232

Power

AC 220V/50Hz or AC 110V/60Hz

Shipping Size

810*660*390mm

880*690*520mm

810*660*390mm

880*690*520mm

Gross Weight

27kg

45kg

27kg

45kg

Standard Accessories

10mm glass cuvette x 4, 10mm quartz cuvette x 2, Power cord, User's Manual , PC software
