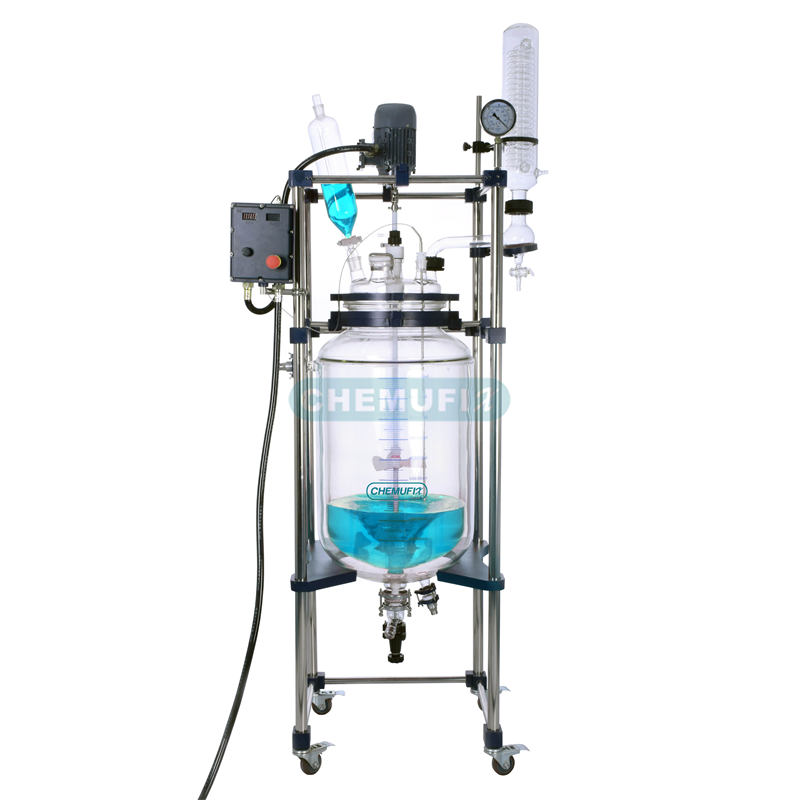

VGR-DN Series Jacket Glass Reactor

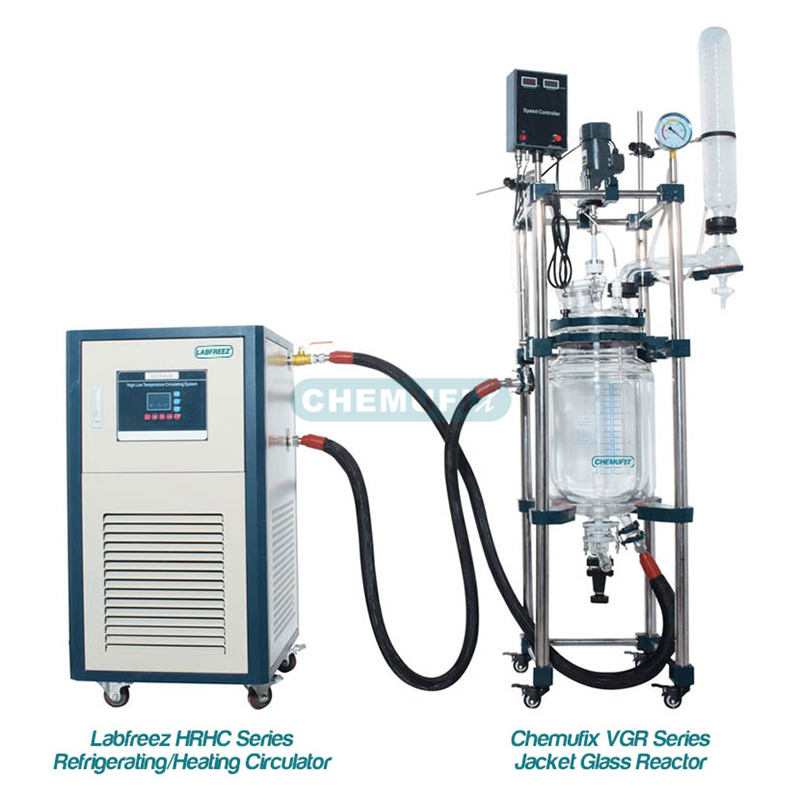

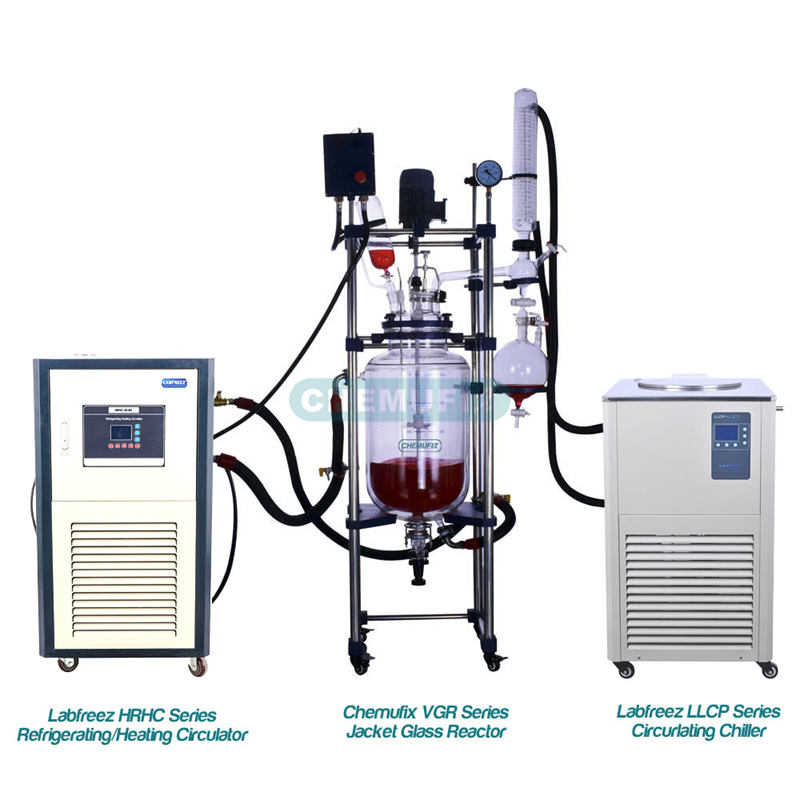

VGR series glass reactor is designed as double-layer glass. The inner layer is placed in the reaction medium and can be stirred. The interlayer can be heated or circulated by different cold and heat sources (refrigerant, hot water or hot oil). Under the constant temperature condition, the sealed glass reactor can be stirred under normal pressure or negative pressure according to the requirements of use, and can carry out reflux and distillation of the reaction solution. It is a modern fine chemical, biopharmaceutical and new material. The ideal pilot and production equipment for synthesis. Technical Features The whole stainless steel column mobile frame structure, five reactor lids, complete glass with reflux, liquid addition, temperature measurement, etc. Use G3.3 borosilicate glass.

VGR series glass reactor is designed as double-layer glass. The inner layer is placed in the reaction medium and can be stirred. The interlayer can be heated or circulated by different cold and heat sources (refrigerant, hot water or hot oil). Under the constant temperature condition, the sealed glass reactor can be stirred under normal pressure or negative pressure according to the requirements of use, and can carry out reflux and distillation of the reaction solution. It is a modern fine chemical, biopharmaceutical and new material. The ideal pilot and production equipment for synthesis.

Technical characteristics

1. The whole stainless steel column mobile frame structure, five reactor lids, complete glass with reflux, liquid addition and temperature measurement.
2. G3.3 borosilicate glass is used, which has good chemical and physical properties.
3. Alloy steel mechanical seal, Teflon joint, keep high precision seal under working condition.
4. Pt100 sensor probe has high temperature measurement accuracy and small error, which effectively improves work efficiency.
5. Japanese technology AC gear motor, strong torque, no noise.
6. Double PTFE stir pad for mixing and mixing of low to high viscosity liquids.
7. PTFE discharge valve, movable interface, completely and quickly.

Specifications:
5~200L standard type

1L~3L small type

5~200L Ex-proof type
