Equipment introduction
With LabGeni Gel Documentation Systems you can handle various images of nucleic acid and protein electrophoresis. With a panel or computer you can make basic operations as image capture, edit, analysis and printing. GI-805 has stable functions and high quality-price ratio.
The system has UV automatic protection function, UV lamp automatically switches off when handling samples or it can enter to the glue cutting state and work with special protecting glue cutting device for worker`s safety.
The top of the system can be easily open for changing filters and different fluorescent stains. For standard 590nm filter you can use EB and GelRed stains, if you want to use other, please, contact us for changing hardware.
Main features
- CE certification, export sales
- The results are clean, price is cheap, quality-price ratio is high;
- Detection sensitivity: 20pg of double-stranded DNA;
- Large area of UV transmission station, the biggest sample can be 21x26cm;
- Standard LED white light, operation life is long
- Darkroom with mold production, enclosed camera, built-in acquisition system, dustproof;
- With a panel or computer you can make full automatic control of zoom, focus, diaphragm, UV Trans and Reflect lamps.
- UV lamp automatically switches off when you are handling samples.
- It uses with the most safety UV glue cutting device, it can enter to the glue cutting state, and it`s easy to recover special proceed of nucleic acid.
- Standard 590 screw-type filter with coating which is easy to change.
- Optional Trans UV/white light, used for albumin glue and other Electrophoresis carrier which are opacity, but need a UV
- System size: 30*44*32 cm (length*height*depth)
- All software`s functions are stable, and you always can upgrade it for free.
Specification

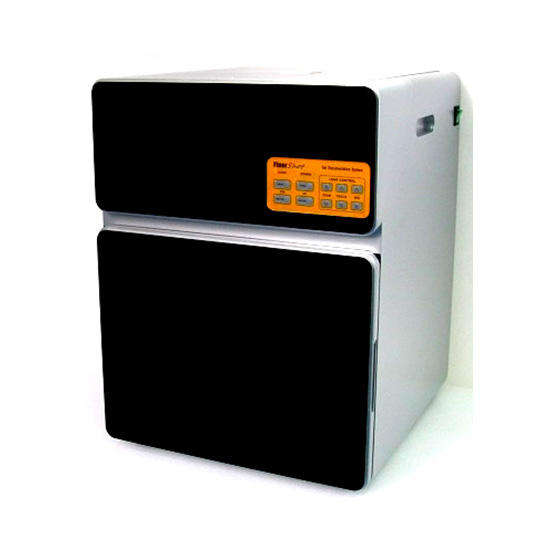

| Model | GI-750 | GI-805 | GI-810 | GI-850 |
| Pictures | ||||
| Acquisition system |
Import high-definition low-light monochrome CCD |
Professional high definition monochrome CCD |
high-definition digital Firewire CCD (Imported from U.S.) |
high-definition digital Firewire CCD (Imported from U.S.) |
| Effective resolution (pixels m) | 752*582 | 1,280*1,024 | 1360*1024 | 1,600*1,200 |
| Pixel Size (um V*H) | 8.3*8.3 | 4.65*4.65 | 4.65*4.65 | 4.4*4.4 |
| SNR | 56dB | 60db | 70dB | 70dB |
| Pixel Density | 10 bit | 10 bit | 12 bit | 10 bit |
| Port | BNC | USB 2.0 | USB 2.0 | USB 2.0 |
| Lens | imported 6x motorized zoom F1.0, 2/3 inch high caliber penetrating lens (Japan) | |||
| Darkroom | mold production, enclosed camera, built-in acquisition system, dustproof and shockproof, UV Safety | |||
| Filter | Standard 590 screw-type filter with coating (contact for special requirement) | |||
| Operation interface | With a panel or computer you can make full automatic control of zoom, focus, diaphragm, UV Trans and Reflect lamps. | |||
| Display | computer | |||
| UV Trans | Standard 21*26cm with 312nm (254/365nm is optional) | |||
| White Trans | Optional 20x28cm white light plate | |||
| UV Reflect | Optional UV Reflect light source (Optional); used for paper chromatography and other Electrophoresis carrier which are opacity, but need a UV burst | |||
| White Reflect | Standard LED white light | |||
| Fixed time functions | Automatic switching off UV light source in 5 minutes (we can change it before product will leave the factory) | |||
| Software | Genescope fully control-analysis software with Chinese interface, Win2000/XP, image capture, edit, analysis and database. | |||
| Power source | 110/220V | |||
| Dimension(mm) | 430*410*560 | |||
| Weight | 22kg | |||
| Certification | CE | |||
