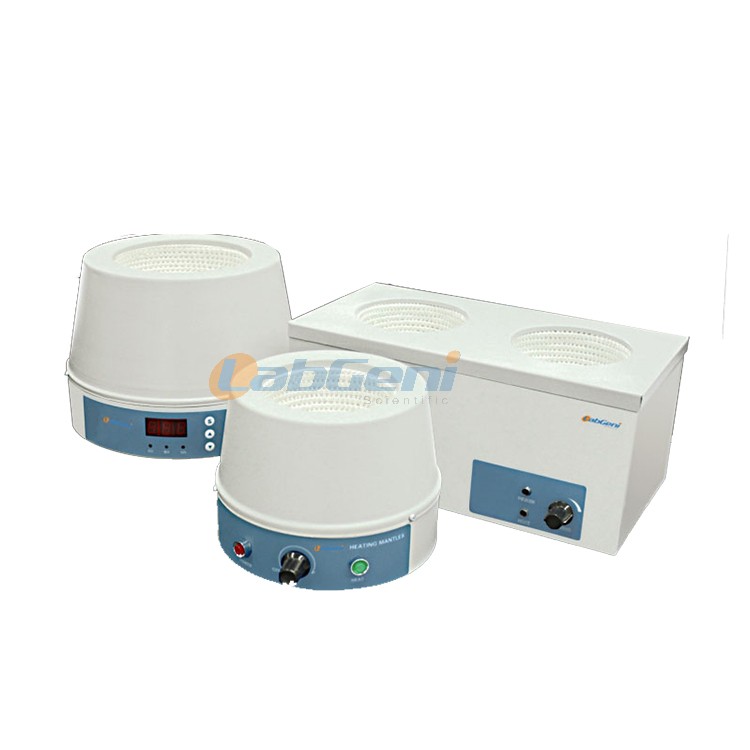

Ⅰ.Application:
The product is suitable for medium and large institutions, petroleum, chemical, pharmaceutical, environmental protection and other industries laboratory liquid heating.
Ⅱ.Product characteristics:
1, high-quality materials shell, electrostatic spraying process;
2, With Electronic temperature control and Digital temperature control two kinds of ways;
3, Big heating area, fast heating, no flame;
4, with adjustable tube rack
Main Technical Parameter
Single parameter
| Model | Specification |
Heating power(W) |
Surface maximum temperature（℃） |
dimension（cm） |
Package dimension（cm） |
Net weight（kg） |
Gross weight（kg） |
|
HM-1 |
100ml |
100 |
380 |
Φ20×16 |
23×23×17 |
2 |
2.5 |
|
250ml |
150 |
||||||
|
500ml |
250 |
||||||
|
1000ml |
350 |
Φ26×20 |
29×29×22 |
3.5 |
4 |
||
|
2000ml |
450 |
Φ30×23 |
33×33×25 |
4 |
5 |
||
|
3000ml |
600 |
Φ30×25 |
33×33×27 |
6 |
7 |
||
|
5000ml |
800 |
Φ35×27 |
38×38×29 |
7 |
8 |
||
|
10000ml |
1200 |
Φ42×32 |
45×45×34 |
10 |
12 |
||
|
20000ml |
2400 |
45×45×38 |
50×50×40 |
21 |
26 |
Note: HM-1 means single electronic temperature control type electric heating sleeve; HM-1A means digital temperature control electric heating sleeve
Two coupling parameters:
| Model | Specification |
Heating power(W) |
Surface maximum temperature（℃） |
dimension（cm） |
Package dimension（cm） |
Net weight（kg） |
Gross weight（kg） |
|
HM-2 |
100ml |
100×2 |
380 |
28×14×16 |
32×18×19 |
3 |
3.5 |
|
250ml |
150×2 |
32×16×17 |
36×19×20 |
4 |
4.5 |
||
|
500ml |
250×2 |
36×18×18 |
40×22×21 |
5 |
5.5 |
||
|
1000ml |
350×2 |
42×21×20 |
46×25×23 |
8 |
9 |
Four coupling parameters：
| Model | Specification |
Heating power(W) |
Surface maximum temperature（℃） |
dimension（cm） |
Package dimension（cm） |
Net weight（kg） |
Gross weight（kg） |
|
HM-4 |
100ml |
100×4 |
380 |
53×14×16 |
57×18×19 |
6 |
7 |
|
250ml |
150×4 |
61×16×17 |
65×19×20 |
8 |
9 |
||
|
500ml |
250×4 |
69×18×18 |
73×22×21 |
10 |
11 |
||
|
1000ml |
350×4 |
81×21×20 |
85×25×23 |
15 |
17 |
Six coupling parameters：
| Model | Specification |
Heating power(W) |
Surface maximum temperature（℃） |
dimension（cm） |
Package dimension（cm） |
Net weight（kg） |
Gross weight（kg） |
|
HM-6 |
100ml |
100×6 |
380 |
82×14×16 |
86×18×19 |
9 |
10 |
|
250ml |
150×6 |
94×16×17 |
98×19×20 |
12 |
13 |
||
|
500ml |
250×6 |
106×18×18 |
110×22×21 |
15 |
16 |
||
|
1000ml |
350×6 |
124×21×20 |
128×25×23 |
22 |
24 |
Note:
1, performance parameters test in the no-load condition: ambient temperature20℃, environmental humidity 50%RH
2, working ambient temperature: 5-40℃
