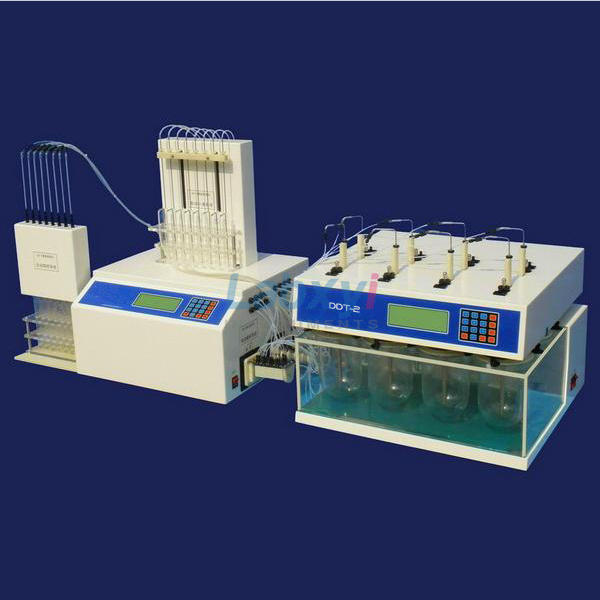

DDT-2 intelligent sampler using advanced technology and quality components of a drug developed by complete dissolution liquid automatic sampling, infusion devices.
Features
- With fluid temperature control system, independent operation
- Original design and development of sampling, fluid infusion automatic return technology to ensure the accuracy of the sample, the amount of fluid
- Teflon tubing high chemical stability has excellent anti-Adsorption
- Unique sampling lifting mechanism, completely get rid of sample for the dissolution of the impact, in turn eliminate the beaker bubble phenomenon
- Sampling, fluid conduit can be directed cleaning
- In the sampling state, rest of liquid will be flow back through peristaltic pump to avoid cross-contamination
- Single sampling, fluid infusion function and sample volume peristaltic pump calibration function
- Large-screen LCD display (LED 4 × 15D characters), menu prompts, easy operation
- Having a USB storage function, the experimental data retention for viewing
- External micro-printer function
Specifications
- Max sampling times: 16 times
- Sampling, fluid feeding channels: 8 pcs
- Max sampling interval: 99 h 59 m 59 s × 16
- Min sampling interval: 3 minutes (1 min at first time)
- Sampling tubes support: 128 pcs
- Continuous working time: 99 h 59 m 59 s
- Sample filtration cycle: <30 seconds
- Peristaltic pump maximum flow rate: 25ml / min
- Sample volume or fluid volume: 1 ~ 15ml
- Relative Accuracy:≦ ± 0.2%
- Polyethylene filter pore size: based on user requirements, can provide 10um filter
- Sample point location: top of turn blue or paddles to middle lever of liquid, 10 mm away from the inner wall of the dissolution cup, 6 mm of small cup
- Power: AC220V ± 10%, 50Hz, 80W
