Freeze Dryer

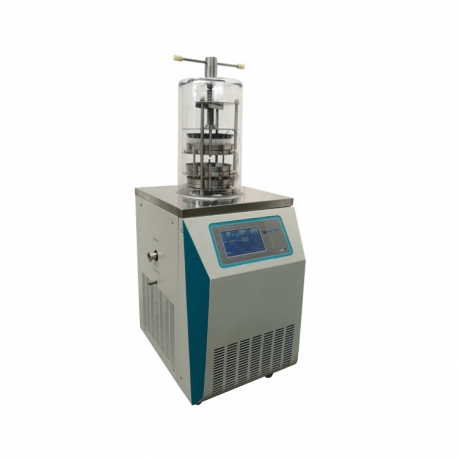

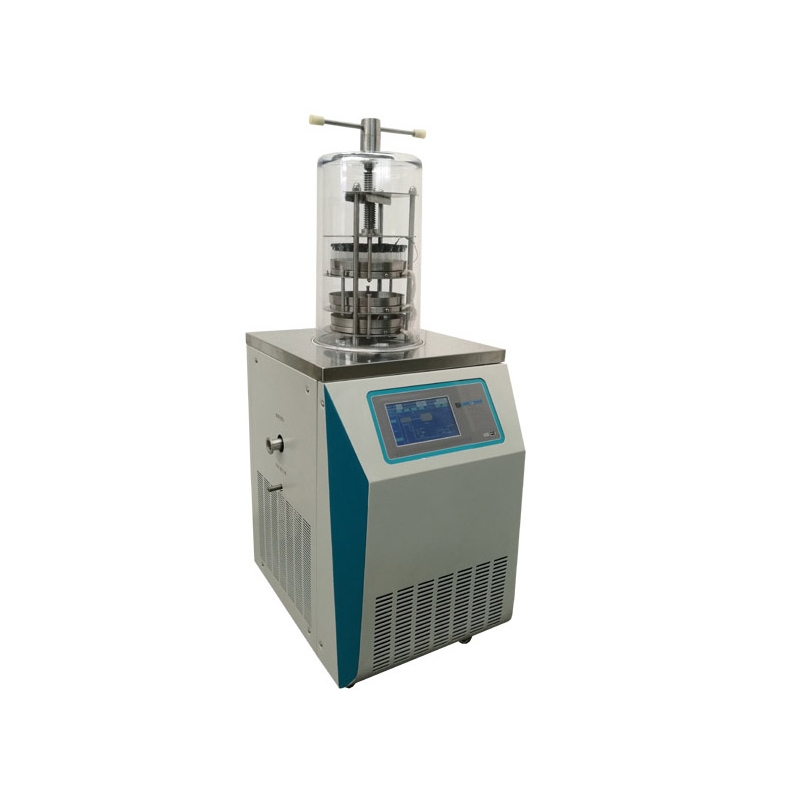

Shelf heating Freeze Dryer FD-18S Series

FD-18S series

More info

Description:
FD-18S heating freeze dryer is a set of floor type equipment, which is suitable for the freeze-dry test and smack production of lab samples. The freeze dryer with the programmable control and baggage shelf to heat up, it uses the PID adjustment, precisely controls temperature; the man-machine contact surface uses the large screen liquid crystal screen. By the curve and the data, it provides to the user related freezing and drying advancement and more information at the same time, also it has communication connection on the top machine.

Characteristics:

  1. PID microprocessor controls;
  2. Environment-friendly, conform to international standard (CE, ISO);
  3. LCD touch display include shelves temperature curve, drying curve, vacuum, and condenser temp. Curve, sample temp. Curve, run time, ambient temperature and etc.
  4. With pre-freezing for samples, Danfoss compressor, widely open condenser, without inner coil;
  5. Can stored 16 programs, each program can be set up 36 segments, correct program data in computing, memorize the drying curve.
  6. The pre-cooling shelf can be used as draft tube to accelerate drying speed;
  7. Condenser and panel made of 304 stainless steel, which is corrosion-resistant and easy to clean;
  8. Transparent bell-cap drying kiln is safe and easy to observe;
  9. Stainless steel sample shelf, the space among common sample tray can be adjusted;
  10. Novel design, small size and simple operation;
  11. For water based samples, -60°C condenser is the perfect choice with effective cost. For samples containing solvents or with low eutectic points, -80 C condenser provides maximum performance.
  12. For labs that needs quick turn-around, electric heating defrost is optional.
  13. Nitrogen inflation valve is optional.

Specifications:

Model

FD-18S-R

FD-18S-MR

FD-18S-TP

FD-18S-MTP

Type

Normal

With multi-flask system

With stoppering device

With multi-flask system + stoppering device

Shelves area

0.18m2

0.18m2

0.09m2

0.09m2

Shelves size

Φ240mm *4 pcs

Φ240mm *4 pcs

Φ200mm * 3

Φ200mm * 3

Quantity can be customized

/

Shelves capacity

1.8L

1.8L

0.9L

0.9L

Vials load capacity

ф12mm

1320pcs

1320pcs

990pcs

990pcs

ф16mm

480pcs

480pcs

285pcs

285pcs

ф22mm

360pcs

360pcs

270pcs

270pcs

Condenser temp.

<-60°C (-80°C Optional)

Shelves temp.

-55~60°C

Ultimate vacuum

<10 Pa

Condenser capability

6 Kg/24h

Power

1530 W

Voltage

220v/50Hz or 110v/60Hz

Dimension

640*540*(960+450) mm

Standard Configuration

  • Stainless steel condenser with opening, stainless steel operation tops, seamless welding with round corner which is anti-corrosion and easy to clean
  • Stainless steel shelf & rack, 4 or 6 pcs shelves optional, shelf removable and spacing height adjustable
  • Stainless steel pre-cooling rack with metal cover
  • Integrally molded glass dried barrel adopted special plastic will not break
  • Used SECOP (DANFOSS) quality compressor, high performance condenser fan, LCD touch display, history data can be stored, searched and exported to computer.
