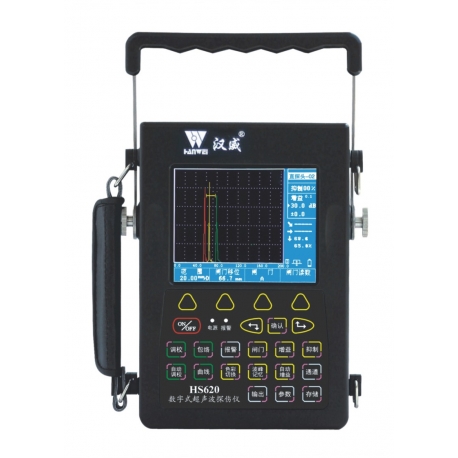

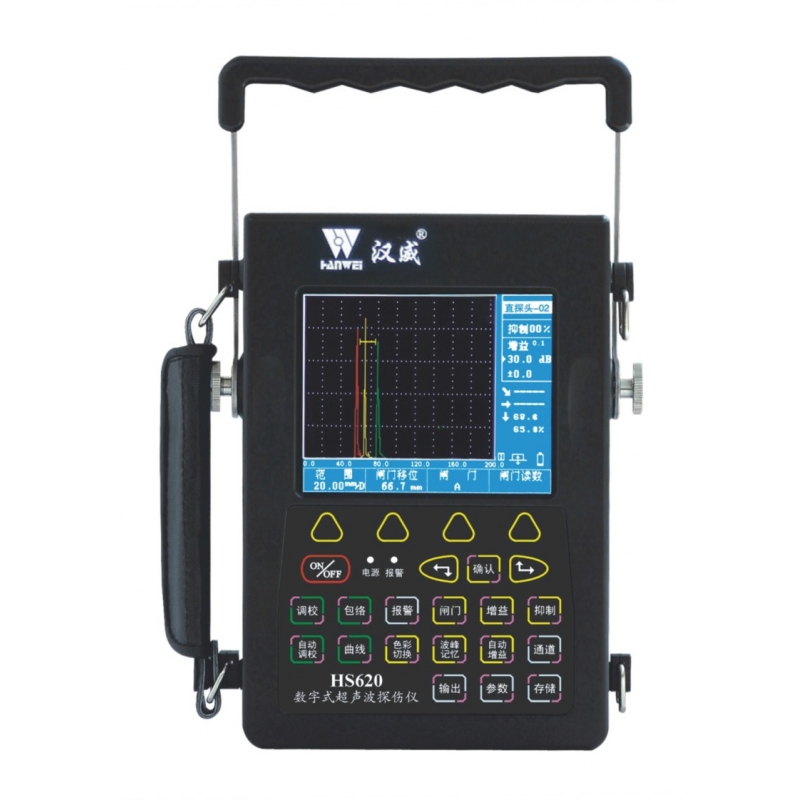

Digital Ultrasonic Flaw Detector

HS620

HS620 digital ultrasonic flaw detector was selected as exam instrument of Chinese NDT engineer

Certificate exam and National quality testing skills contest
Above picture are from CCTV (China Central Television)

More details

More info

Features:
With large storage space, can continuously record testing data of the whole test process
The testing date can be transferred to flash disc for data management
With high-speed USD interface
With function of flaw detector and thickness gauge
The background color and brightness are adjustable
The screen has high display resolution
With high performance Lithium battery, we supply 2 batteries and 2 chargers for 1 instrument.
With function of preset testing parameters for various probes
With Built-in 8G SD card

Specifications

Hardware sampling frequency

 10bit/200MHz

Pulse intensity

 600V

Impedance matching

 200Ω、500Ω

Probe mode

 single or dual transducer

Testing range

 0mm~ 12000mm

Rectangle mode

 plus, minus, dual or RF wave

Frequency range

 (0.5-15/0.5-4/2-8) MHz

Attenuator accuracy

 ＜ ±1dB/12dB

Gain range

 0dB~110dB(with 0.1dB、2dB、6dB steps，Automatically setting gain according to echo amplitude)

Sound velocity range

（100 ～ 20000）m/s

Dynamic range

 ＞30dB

Vertical linear error

 ≤3%

Horizontal linear error

 ≤0.1%

Horizontal resolution

 ＞40dB

Surplus sensitivity

 ＞60dB

Rejection range

 0%~80%

Temperature

 -10~40℃

Humidity

 20%~95%

Power voltage

 220VAC, 7.2VDC

Battery duration

 working 5hours,sleeping 6hours

Dimension

 205mm×138mm×65mm

Weight

 1.5Kg(battery include)



Standard configuration:
1. One HS610e flaw detector (one lithium battery included)
2. Two probe wires (Q9-Q9)
3. One power charge
4. One lithium battery
5. One battery charging connecting wire
6. One set of portable work tape
7. One set of communication line and communication driver software
8. One suitcase
9. One copy of manual, certificate and warranty card
