Ultrasonic phased array flaw detector

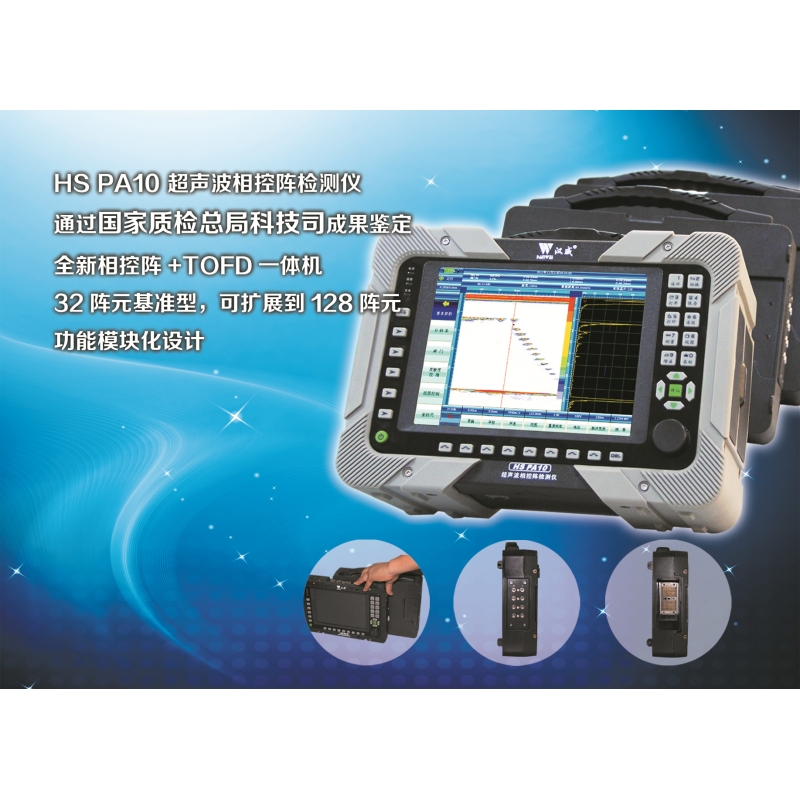

HS PA10

The ultrasonic flaw detector is a device that can be used for the detection of many flaws in the materials. Flaw detection is an important process that is commonly used for various purposes. The most common use of flaw detection can be seen in various engineering works. The process is commonly employed in the detection of metal surfaces.

More details

More info

HS PA10 Features：
●With high image resolution (1024*768 pixel, image can be shown more dedicate, flaw size and location can be shown with higher accuracy)
● With 60Hz display refresh rate, ensures the image reflects the scanning position
●With 32 elements transmit and receive signal synchronously, real time display A-scan, C-scan, D-scan, S-scan and L-scan image.
●With whole point DAC curve function, make DAC curve with unlimited point and compensation
●Optimal time-delay accuracy up to 1ns, make better focusing performance and better imaging, with dynamic Focusing function
●With max.300V transmit voltage (the emission power higher than domestic and foreign products)
●With high gain adjustment range (digital gain:30dB; analog gain:80 dB)
● With a high degree gate and sound path gate, automatic alarm when the defect is detected
● Support module extension, it can be extended with 4 pairs of TOFD channel and PE multi-channel.
● With simulation of various work-piece inspection (suitable for Plate weld, “T” type weld, corner weld, Pipe weld, forge piece and plates inspection)
● Support full record of encoder scanning
● With light-weight and easy carry.
HS PA10 technical parameters：


Specifications

Screen size

 8.4 inch

Screen resolution

 1024×768

Data Storage

 internal 16GB, external USB storage

Extended Interface

 USB2.0×4，10M/100M LAN×1，VGA×1

Power supply

 24V AC adapter, 14.8V lithium battery, with 2 adapters and 2 batteries

Working time

 4 hours (one battery-powered)

Weight

 4.8Kg

Dimensions

 295 × 215 × 120 (mm)

Encoder interface

 +5 V TTL level

Image scanning

 A / C / D / S / L scan

System bandwidth

 0.5 - 15MHz (-3dB)

A/D sampling frequency

 105MHz/10bit

Repetition frequency

 1.6KHz - 4.6KHz

S-scan refresh rate

 up to 60Hz

Active aperture

 32 elements

Maximum number of elements

 32

Delay line accuracy

 1ns

DAC

 unlimited point

TCG

 unlimited point

Rectification(s)

 Positive, Negative, Full Wave, RF

Transmit delay

 0-20us

Receive delay

 0-20us

Transmit voltage

 50V - 200V

Pulse width

 30ns - 1000ns, step:10ns

Pulse type

 Negative square wave

Gain

 analog: 0-80dB,step 0.1dB; digital: 0-30dB, step 6dB

Focus

 Transmit: single focus; Receive: dynamic focus

Extension

 support module extension, it can be extended with 4 pairs of TOFD channel and PE multi-channel.



HSPA10 32 element phased array flaw detector packing list
Packing date：


No.

Name

Remark

Quantity

  1.

HS PA10 phased array flaw detector

Phased array host processing, display module

1 set

32 channel phased array data acquisition module（including 14.8V/11Ah battery module）

  1.

DC24V /3.75A adaptor

adaptor and power cord

1 set

  1.

Phased array flaw detector box

with shockproof foam

1 set

  1.

Standby battery module（14.8V/11Ah）



1 pc

  1.

Phased array standard porous test block



1 pc

  1.

32 phased array probe

5MHz，interval:1.0mm, probe length: 2m

1 pc

  1.

35°wedge block

matching 32 array element 1pc

1 pc

  1.

Portable USB mouse keyboard



1 set

  1.

U drive（8GB）



1 pc

  1.

Plastic ruler



1 pc

  1.

Block drawing



1copy

  1.

Cross screwdriver（φ3）



1 pc

  1.

M3*6 stainless steel round head screws

fixed block

8 pcs

  1.

HSPA10 performance test report



1copy

  1.

Delivery list



1copy
